Product Details

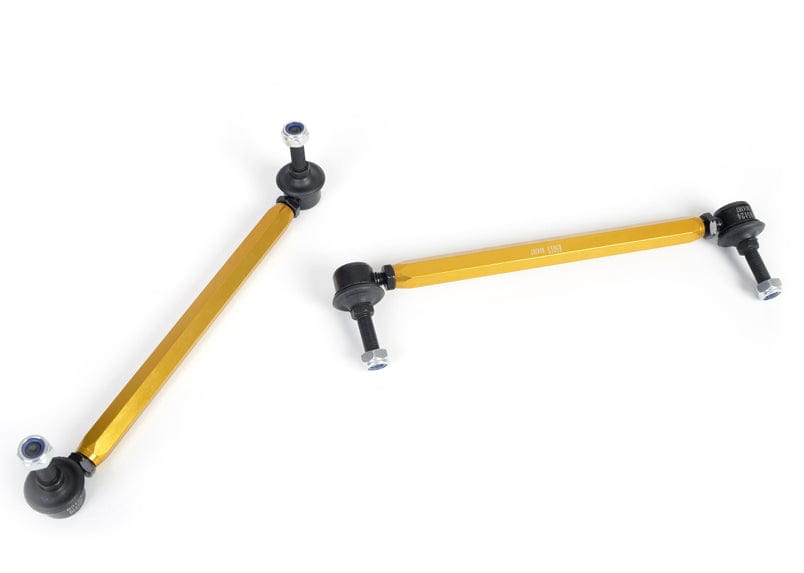

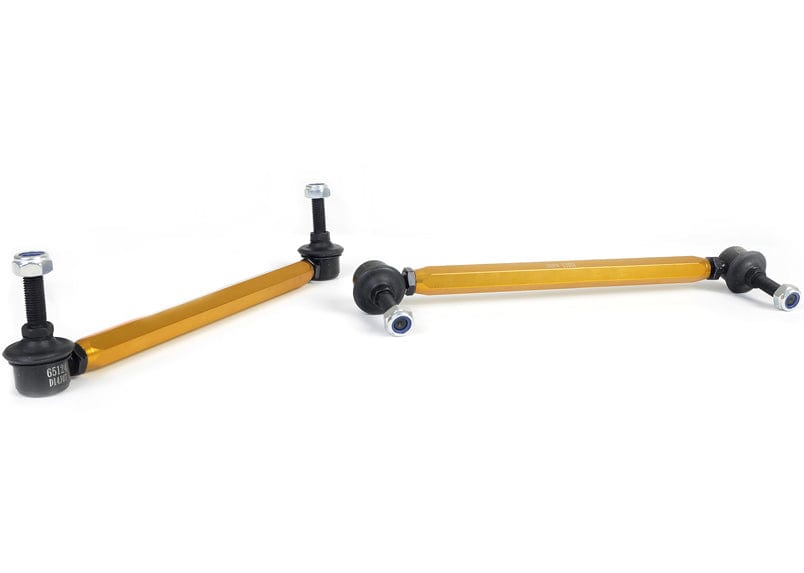

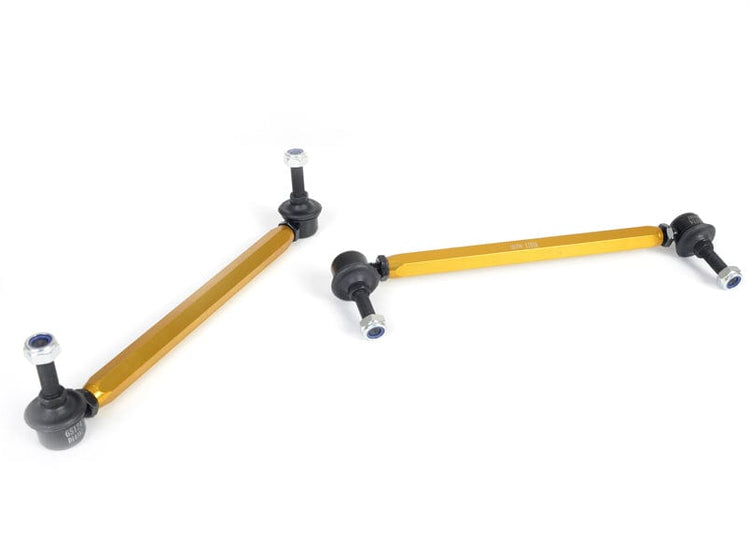

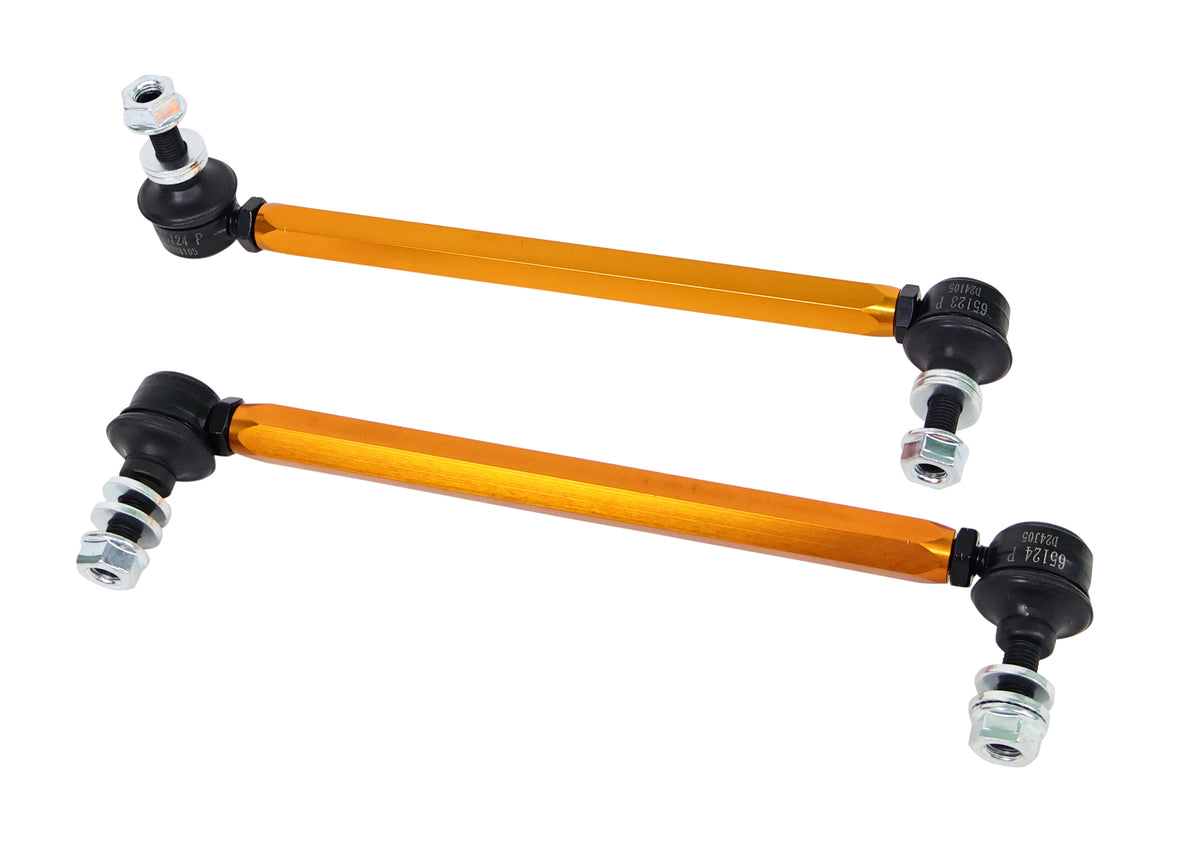

This Whiteline Adjustable Front Sway Bar Link fits the 2002-2011 Toyota Camry SE (XV30/XV40). Position: front. The part number is KLC163. You receive 2 links.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the Camry, see Heavy Duty 20mm Rear Sway Bar, Front Steering Rack And Pinion Mount Bushing, and Front Control Arm Lower Inner Front Bushing.

Features

  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Hardware: Supplied with locking nuts and washers.
  • Install guide: Written install instructions are included with the part.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2002-2011 Toyota Camry SE
Chassis Code XV30/XV40
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2003ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2004ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2005ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2006ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2007ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2008ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2009ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2010ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
2011ToyotaCamryFWDLength 270-295mm. Bolt Diameter 10mm.
