Product Details

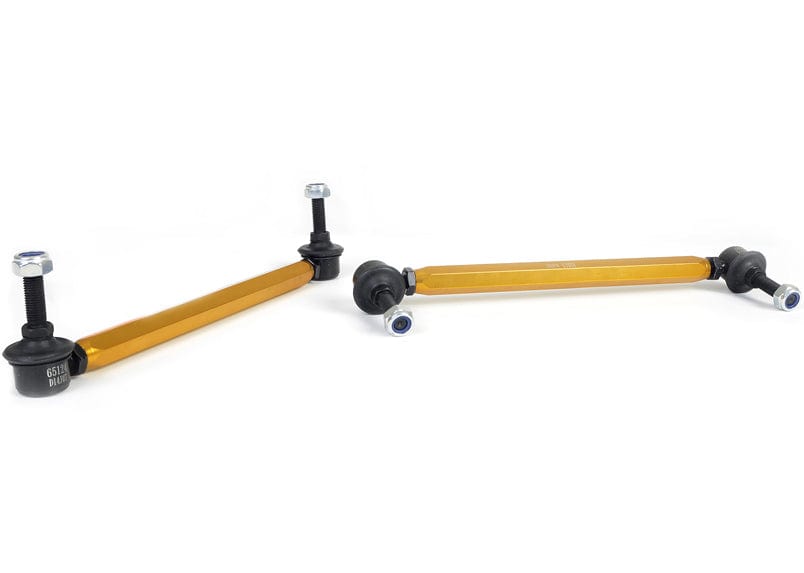

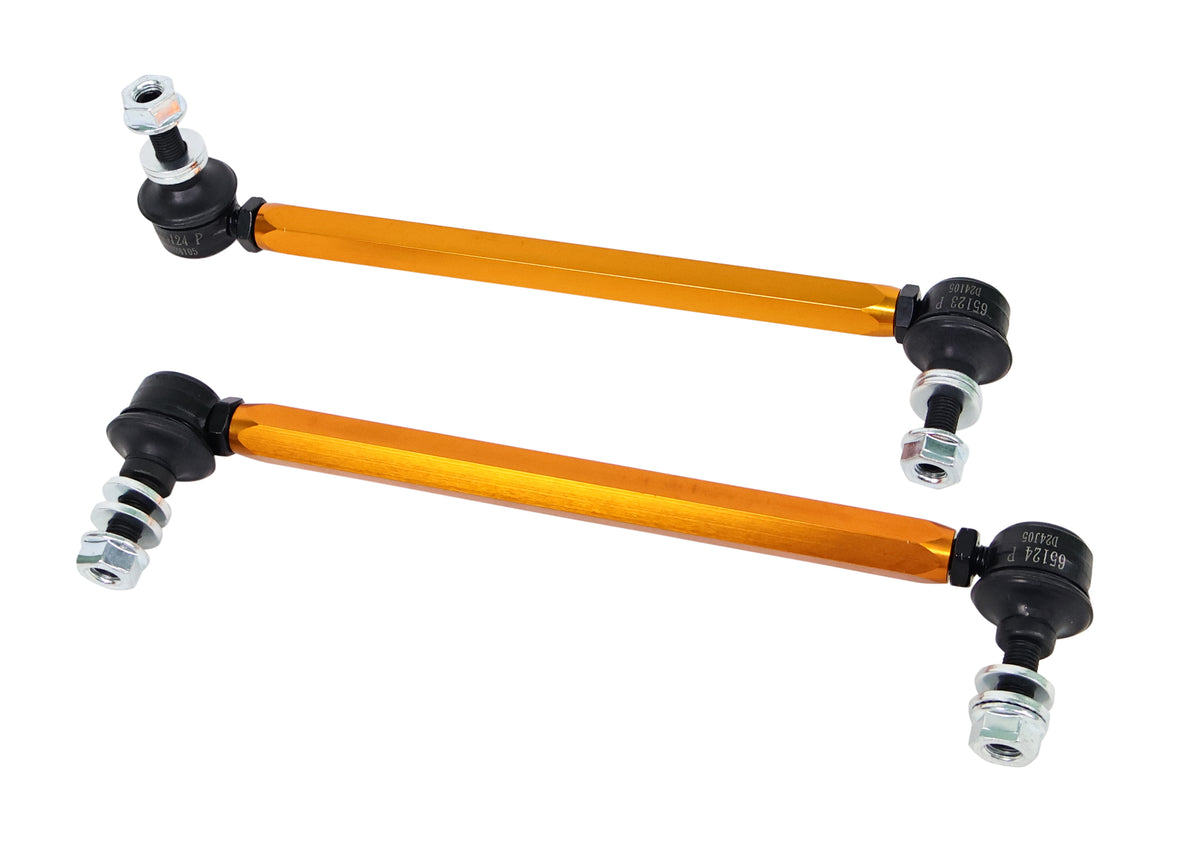

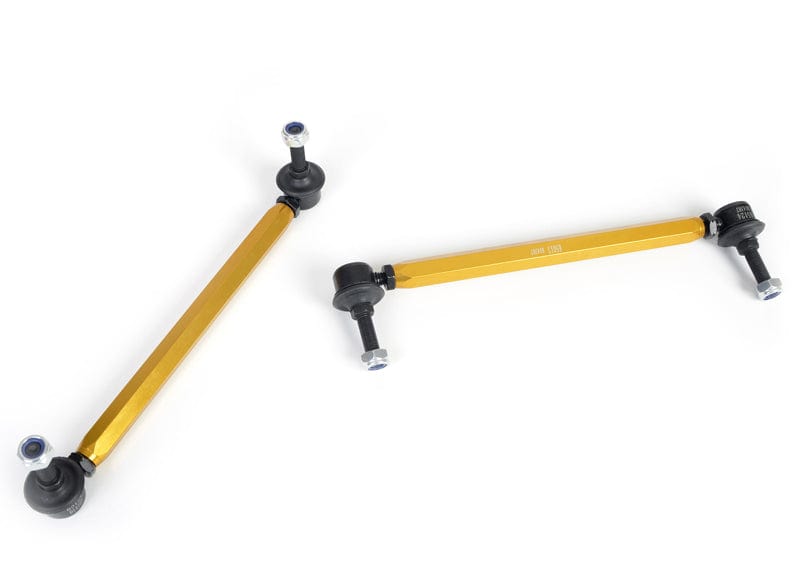

This Whiteline Adjustable Front Sway Bar Link fits the 2001-2006 BMW M3 Base (E46). Included: 2 links. Chassis code: E46. Part number KLC163. Placement: front.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the BMW M3: Front Strut Tower Brace, Rear Sway Bar Link, and Front Strut Tower Brace Quick Release Kit.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Hardware: Also in the box: locking nuts and washers.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2001-2006 BMW M3 Base
Chassis Code E46
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
2002BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
2003BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
2004BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
2005BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
2006BMWM3RWDLength 270-295mm. Bolt Diameter 10mm.
