Product Details

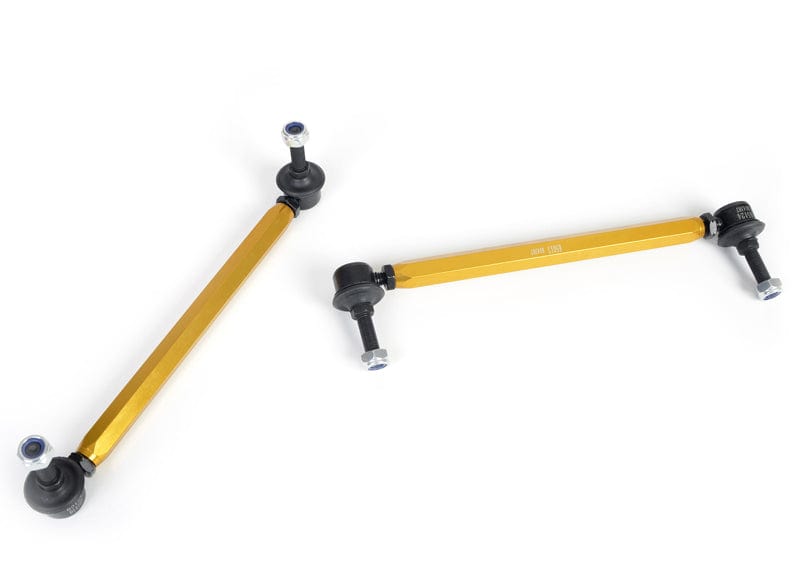

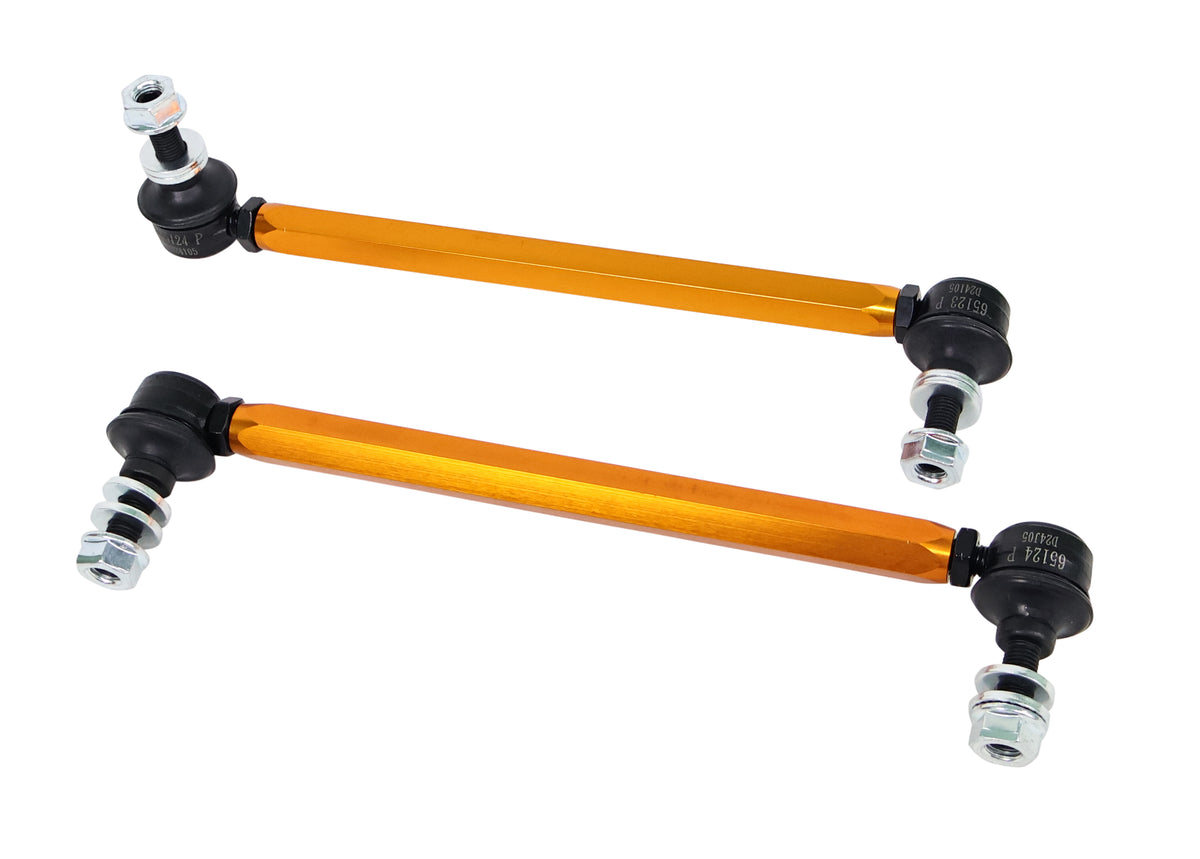

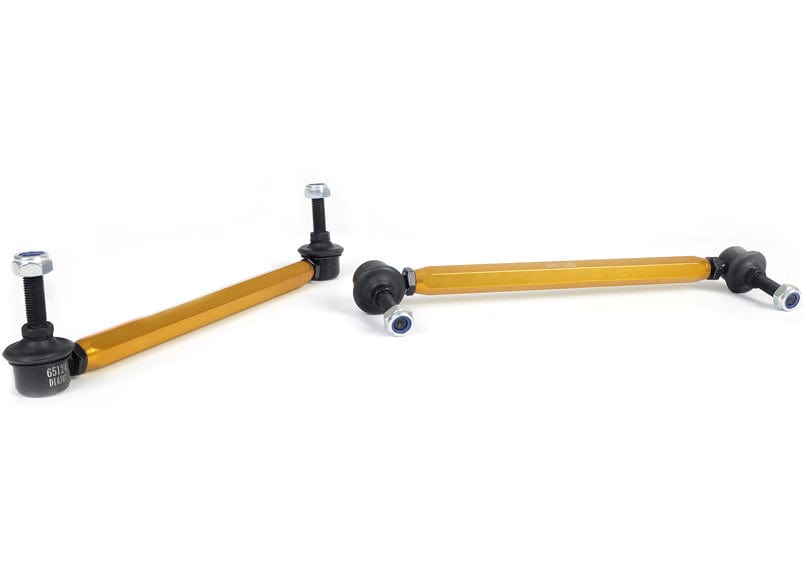

This Whiteline Adjustable Front Sway Bar Link fits the 1997-2003 Lexus ES300 (V30). Whiteline part number: KLC163. In the box: 2 links. This part is for the front of the vehicle.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the ES300, see Adjustable Rear Sway Bar Link, 17mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Install guide: An install guide comes in the box.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 1997-2003 Lexus ES300
Chassis Code V30
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
1998LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
1999LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
2000LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
2001LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
2002LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
2003LexusES300FWDLength 270-295mm. Bolt Diameter 10mm.
