Product Details

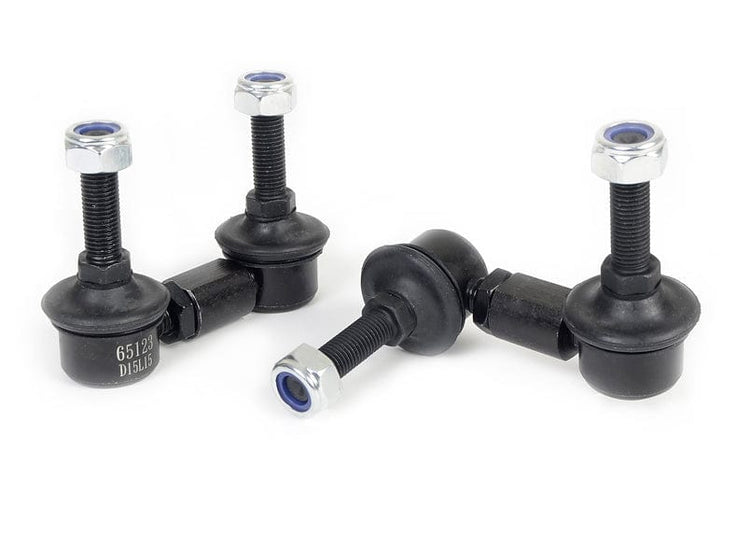

These Whiteline Adjustable Front Sway Bar Drop Links fit the 1993-1996 Subaru Impreza WRX L (GC/GF). It goes on the front of the vehicle. In the box: 2 links. Application note: Adjustable Extra Heavy Duty. Whiteline part number: KLC139.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. To go with it on the Impreza WRX L, see Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and 14mm Adjustable Front Camber Bolts.

Features

  • Hardware: Supplied with locking nuts and washers.
  • Responsiveness: Improves response in lane changes and cornering.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Material: Built from steel.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Warranty: Whiteline's listed warranty is 3 years and 60,000 miles.
Specifications
Part Number KLC139
Part Name Sway Bar Link
Vehicle 1993-1996 Subaru Impreza WRX L
Drivetrain AWD
Chassis Code GC/GF
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-70 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1993SubaruWRXAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
1994SubaruWRXAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
1995SubaruWRXAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
1996SubaruWRXAWDAdjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm.
