Product Details

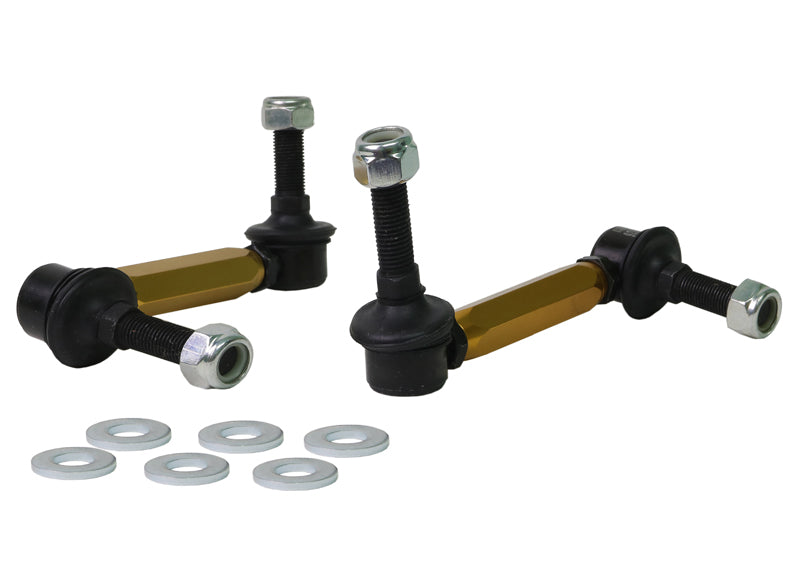

Fitted to the 2019 Toyota Hilux Chasis Cabina (AN120/AN130): the Whiteline Front Sway Bar Link. It goes on the front of the vehicle. You receive 2 links and 6 washers. Application note: Adjustable Extra Heavy Duty. The part number is KLC220. Trim named on the listing: Chasis Cabina.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward.
Features
- Construction: Alloy construction keeps the weight down while handling the loads.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Install guide: An install guide comes in the box.
Specifications
| Part Number | KLC220 |
| Part Name | Sway Bar Link |
| Vehicle | 2019 Toyota Hilux Chasis Cabina |
| Chassis Code | AN120/AN130 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 6 Washers |
| Length | 125-150 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 125-150mm. Bolt Diameter 12mm. |
