Product Details

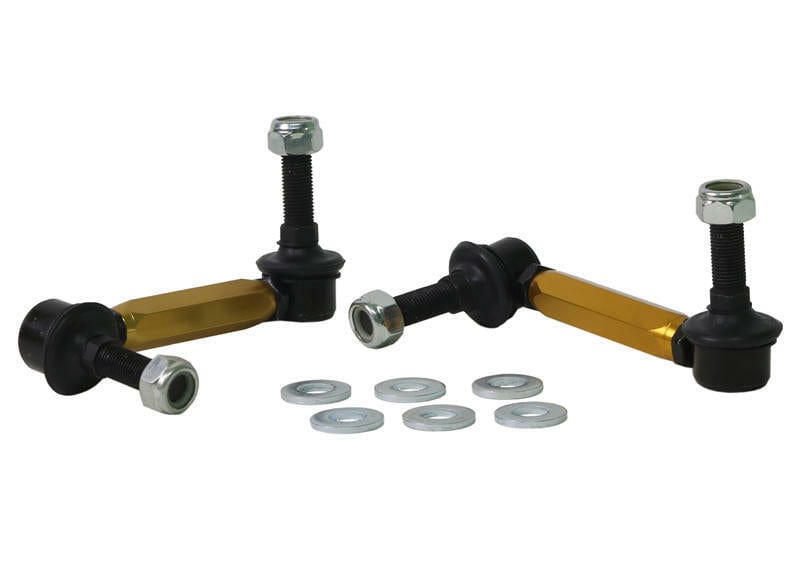

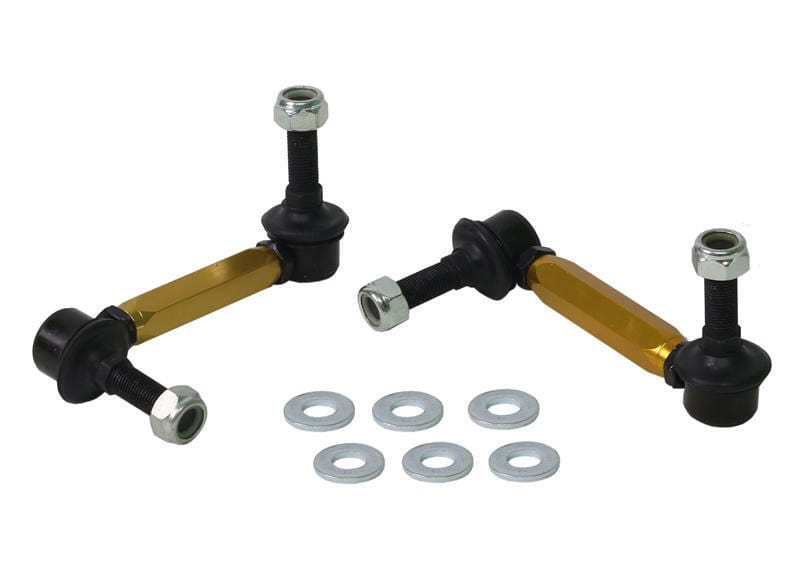

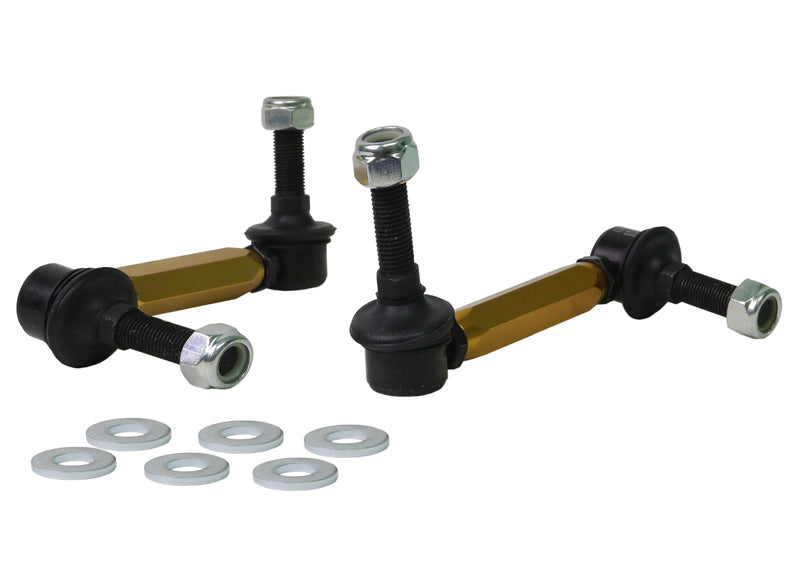

Here is the Whiteline Front Sway Bar Link for the 2017-2019 Toyota Hilux Doble Cab (AN120/AN130). Placement: front. Part number KLC220. The listing names the Doble Cab trim. Application note: Adjustable Extra Heavy Duty. The kit contains 2 links and 6 washers.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward.
Features
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Hardware: Hardware supplied: locking nuts and washers.
- Construction: High-strength alloy gives the strength needed without much weight.
Specifications
| Part Number | KLC220 |
| Part Name | Sway Bar Link |
| Vehicle | 2017-2019 Toyota Hilux Doble Cab |
| Chassis Code | AN120/AN130 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 6 Washers |
| Length | 125-150 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 125-150mm. Bolt Diameter 12mm. |
