Product Details

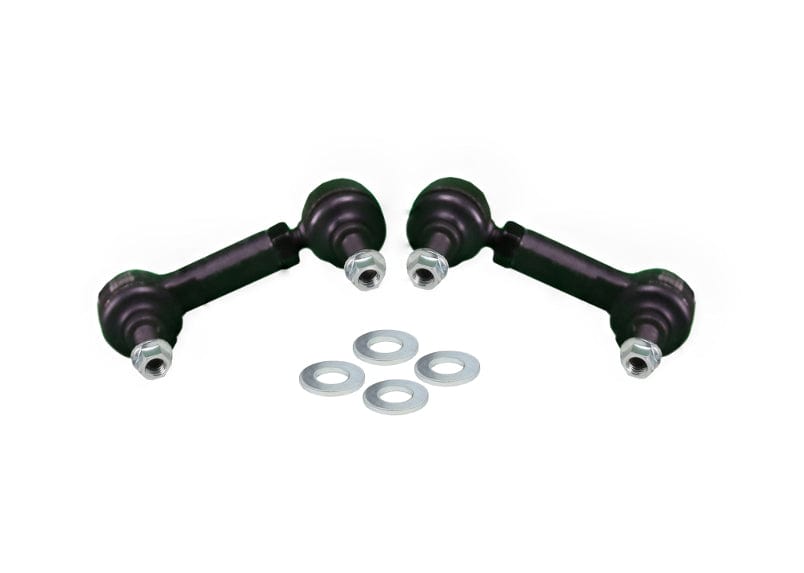

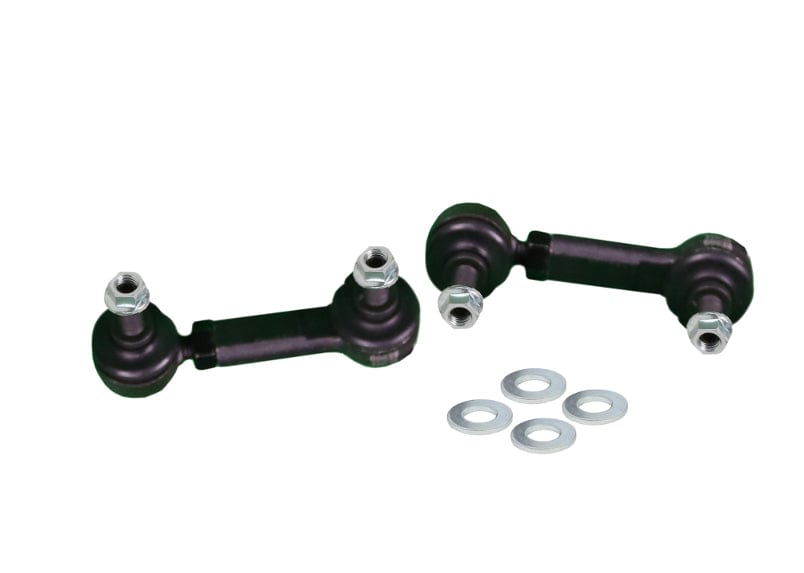

This Whiteline Adjustable Front Sway Bar Link fits the 2016 Mazda MX-5 Miata Launch Edition (ND). Whiteline's note for this fit: Adjustable Extra Heavy Duty. Placement: front. The kit contains 2 links. Whiteline part number: KLC205.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. We also list Adjustable Sway Bar Vehicle Link Kit, Front and Rear Sway Bar Kit, and Rear Sway Bar Link for the MX-5 Miata.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Material: Steel construction.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC205
Part Name Sway Bar Link
Vehicle 2016 Mazda MX-5 Miata Launch Edition
Drivetrain RWD
Chassis Code ND
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 84-94 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 84-94mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 84-94mm. Bolt Diameter 10mm.
