Product Details

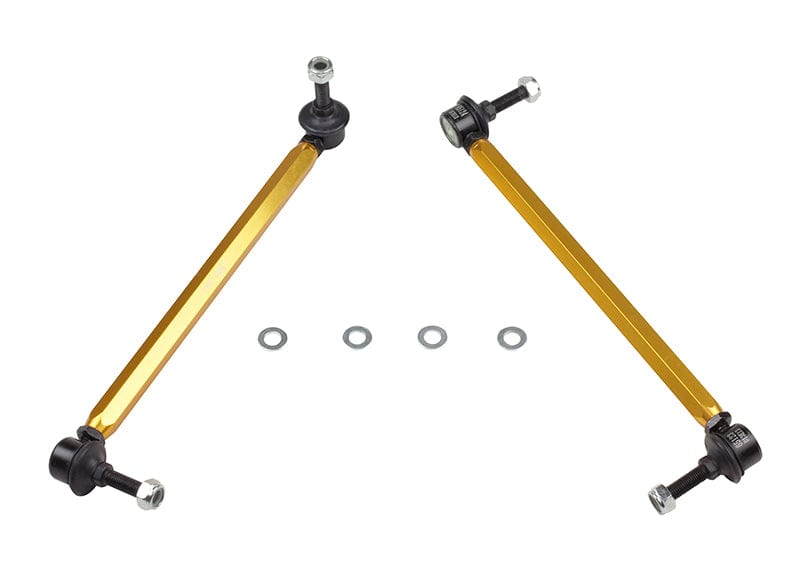

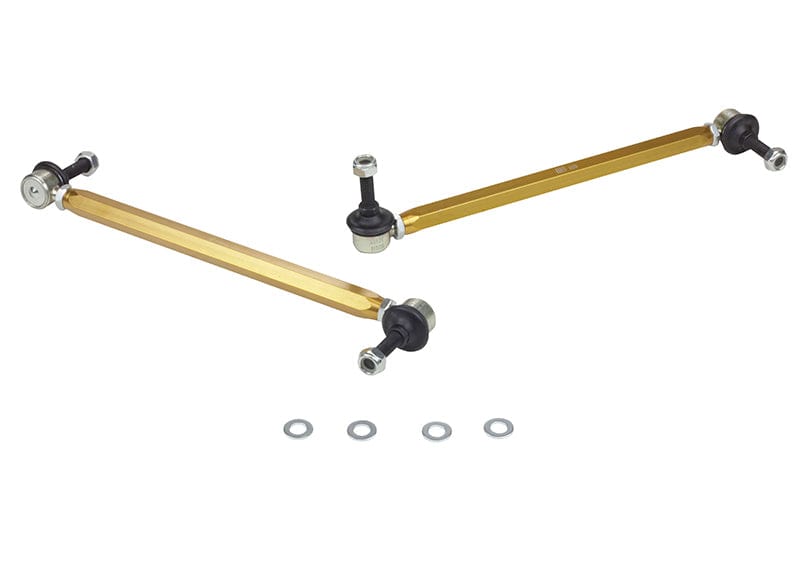

This Whiteline Front Sway Bar Link fits the 2013 Land Rover Range Rover Evoque Autobiography Dynamic (L322). Application note: Adjustable Extra Heavy Duty. In the box: 2 links. Chassis code: L322. Position: front. Part number KLC105.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required.
Features
- Install guide: Whiteline packs an install guide with it.
- Construction: Alloy construction keeps the weight down while handling the loads.
- Hardware: The kit includes locking nuts and washers.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
Specifications
| Part Number | KLC105 |
| Part Name | Sway Bar Link |
| Vehicle | 2013 Land Rover Range Rover Evoque Autobiography Dynamic |
| Chassis Code | L322 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 310-335mm. |
