Product Details

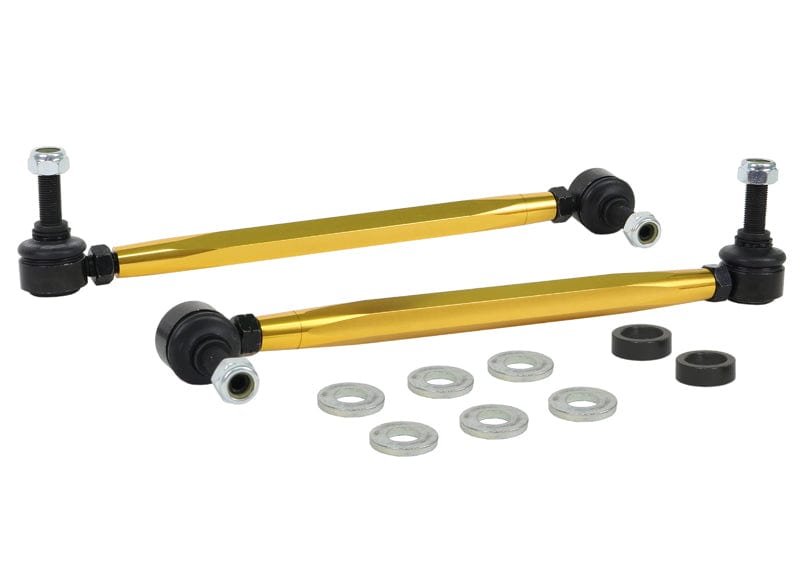

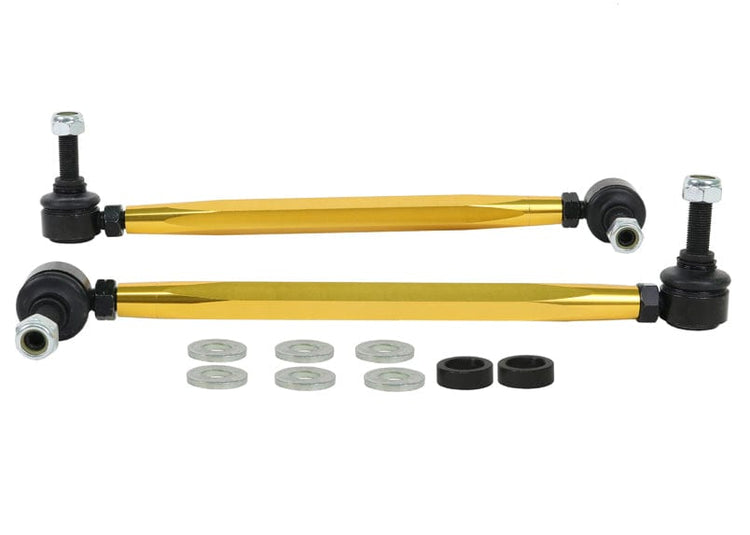

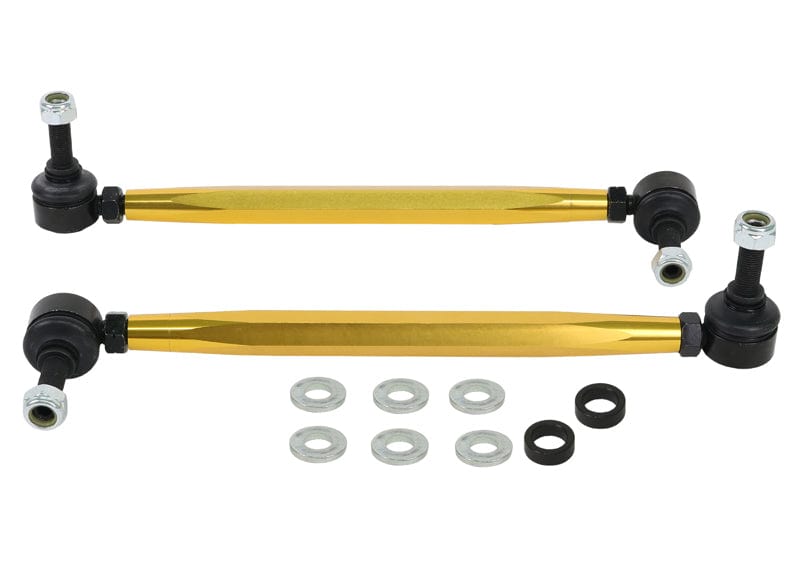

This Whiteline Adjustable Front Sway Bar Link fits the 2012 Volkswagen Passat (B7). Placement: front. Application note: Adjustable Extra Heavy Duty. The part number is KLC167A. In the box: 2 links.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. We also list Adjustable Rear Upper Control Arm Set, Front Control Arm Lower Inner Front Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar for the Passat.

Features

  • Construction: High-strength alloy gives the strength needed without much weight.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Hardware: The kit includes locking nuts and washers.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2012 Volkswagen Passat
Chassis Code B7
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012VolkswagenPassatFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
