Product Details

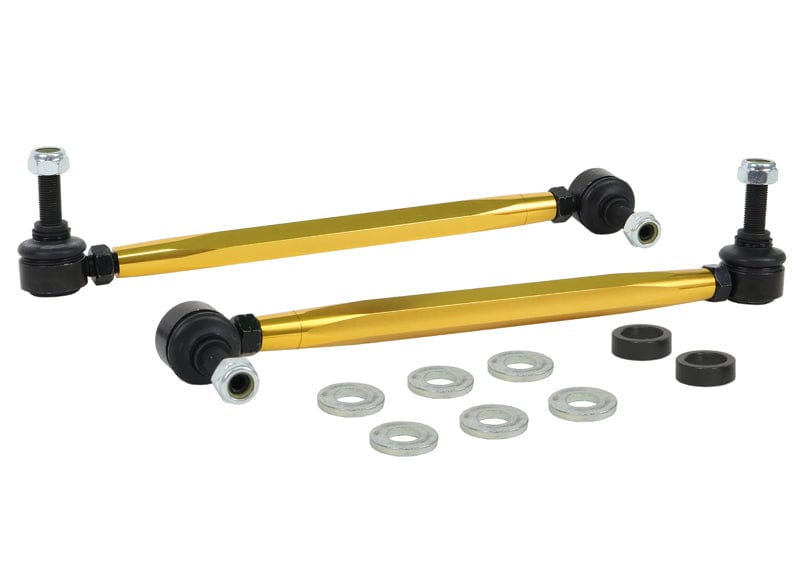

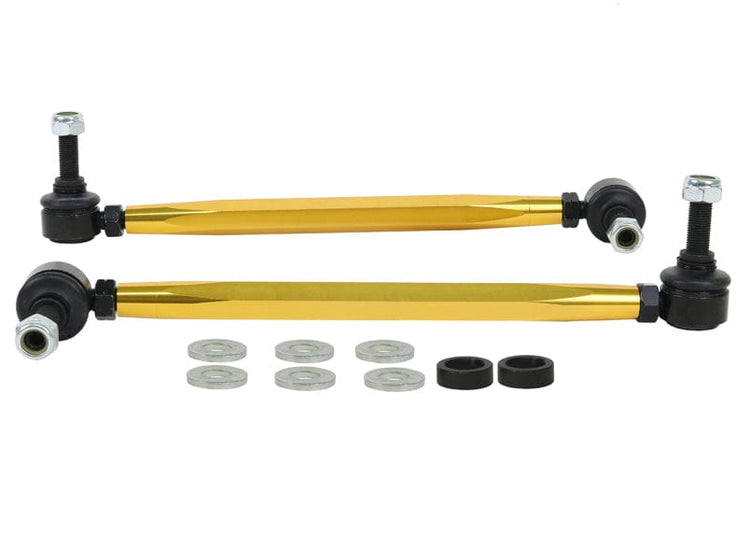

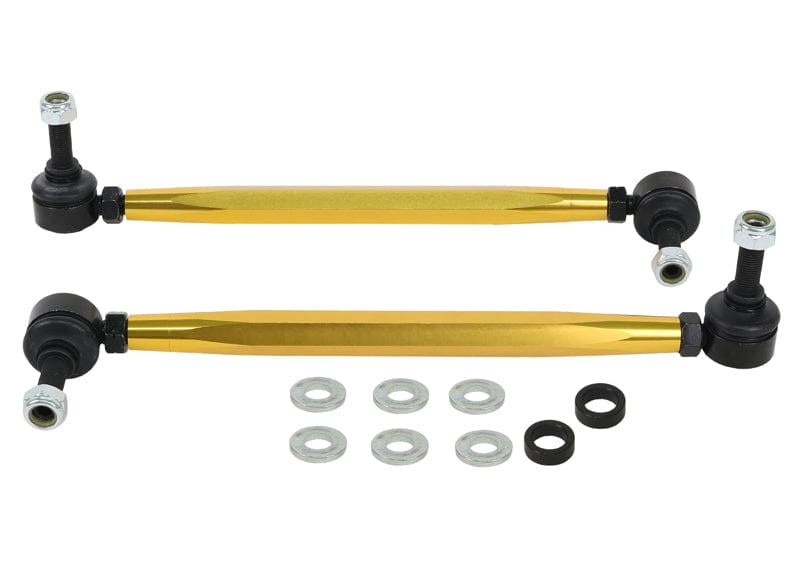

This Whiteline Adjustable Front Sway Bar Link fits the 2012-2019 Volkswagen Beetle Base (A5). The kit contains 2 links. Application note: Adjustable Extra Heavy Duty. Order it as part number KLC167A. Placement: front.
Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Beetle: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing.
Features
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Construction: High-strength alloy gives the strength needed without much weight.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Hardware: Supplied with locking nuts and washers.
Specifications
| Part Number | KLC167A |
| Part Name | Sway Bar Link |
| Vehicle | 2012-2019 Volkswagen Beetle Base |
| Chassis Code | A5 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 320-345 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm. |
