Product Details

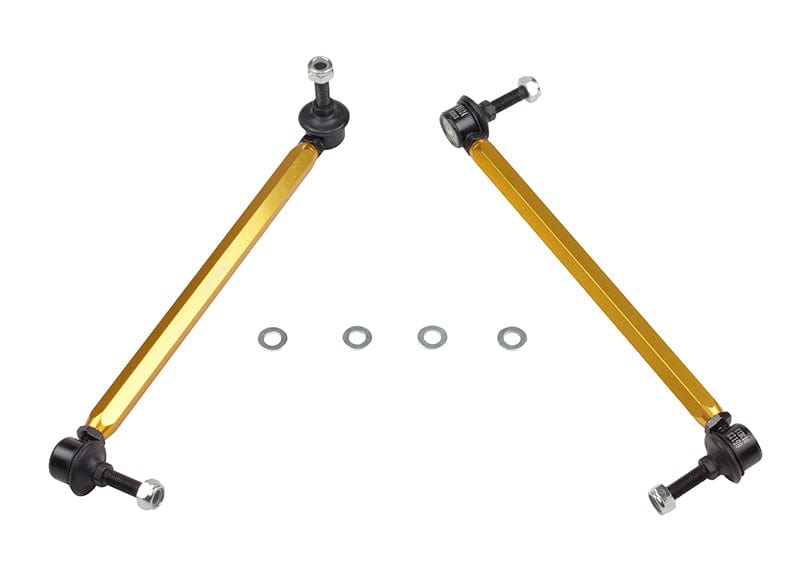

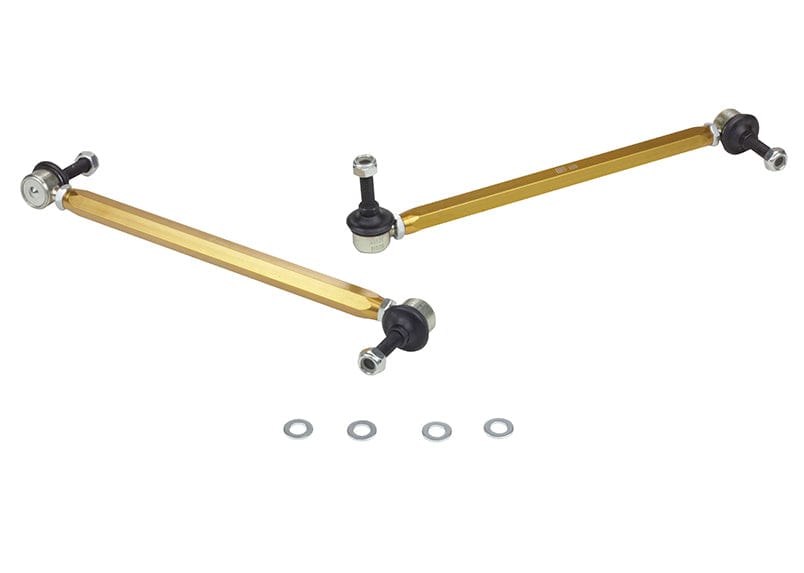

This Whiteline Front Sway Bar Link fits the 2012-2014 Land Rover Range Rover Evoque Dynamic (L322). Whiteline's note for this fit: Adjustable Extra Heavy Duty. Included: 2 links. The part number is KLC105. This part is for the front of the vehicle.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Construction: Made from strong, light alloy.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
Specifications
Part Number KLC105
Part Name Sway Bar Link
Vehicle 2012-2014 Land Rover Range Rover Evoque Dynamic
Chassis Code L322
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 310-335 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 310-335mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012Land RoverRange Rover Evoque4WDAdjustable Extra Heavy Duty. Length 310-335mm.
2013Land RoverRange Rover Evoque4WDAdjustable Extra Heavy Duty. Length 310-335mm.
2014Land RoverRange Rover Evoque4WDAdjustable Extra Heavy Duty. Length 310-335mm.
