Product Details

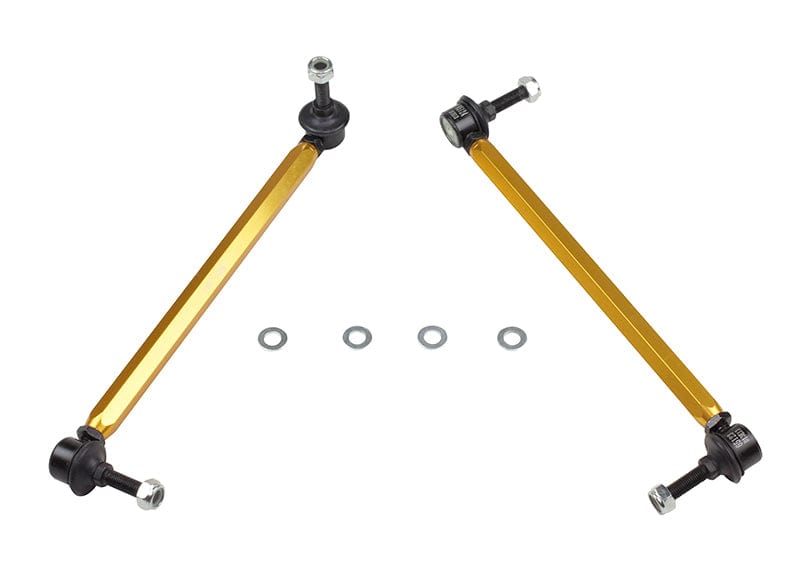

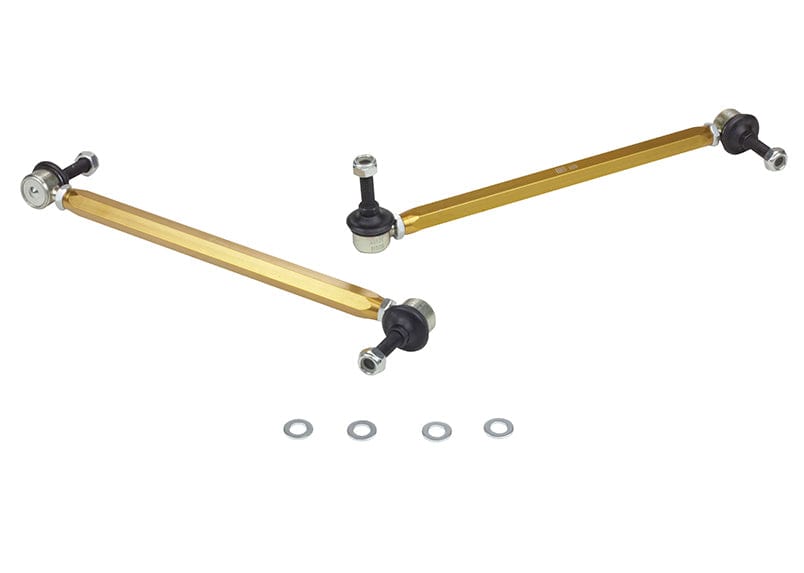

This Whiteline Front Sway Bar Link fits the 2012-2013 Land Rover Range Rover Evoque Pure (L322). It goes on the front of the vehicle. The part number is KLC105. Whiteline's note for this fit: Adjustable Extra Heavy Duty. You receive 2 links.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Expect a moderate job of about 1 hour. It does not require a wheel alignment.
Features
- Pre-greased: Joints arrive pre-greased and ready to install.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Hardware: Also in the box: locking nuts and washers.
- Install guide: Step-by-step installation instructions come with it.
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
| Part Number | KLC105 |
| Part Name | Sway Bar Link |
| Vehicle | 2012-2013 Land Rover Range Rover Evoque Pure |
| Chassis Code | L322 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 310-335mm. |
