Product Details

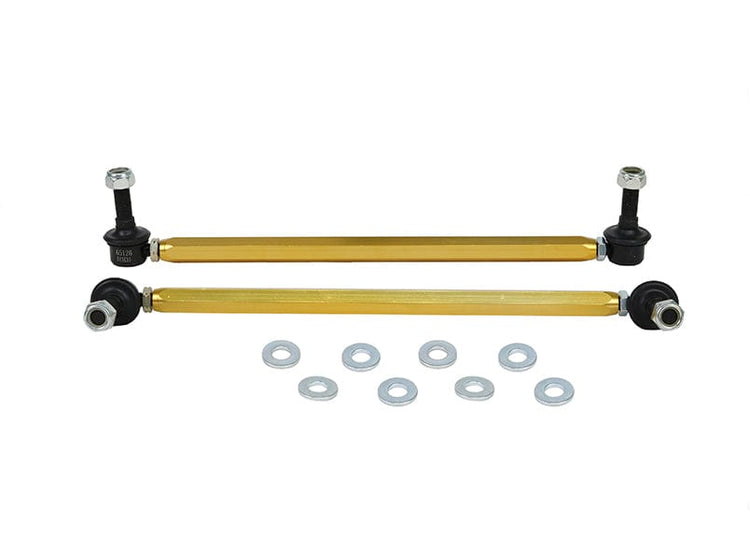

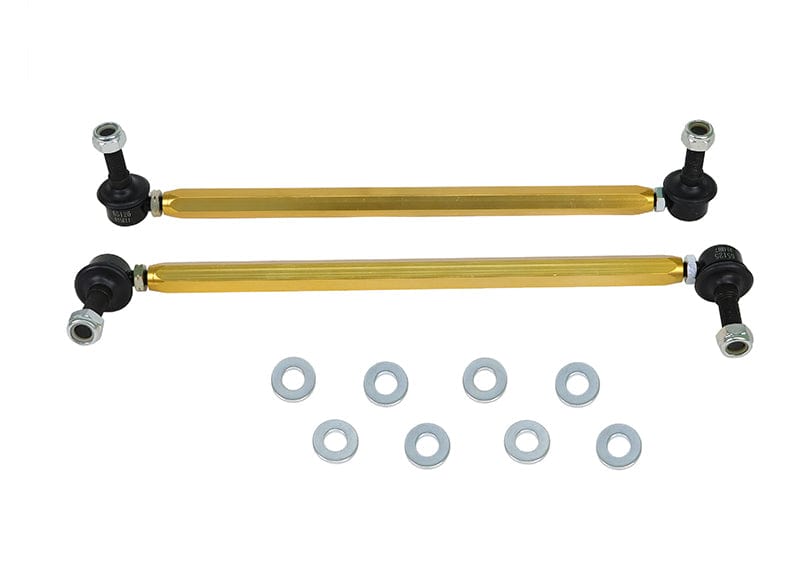

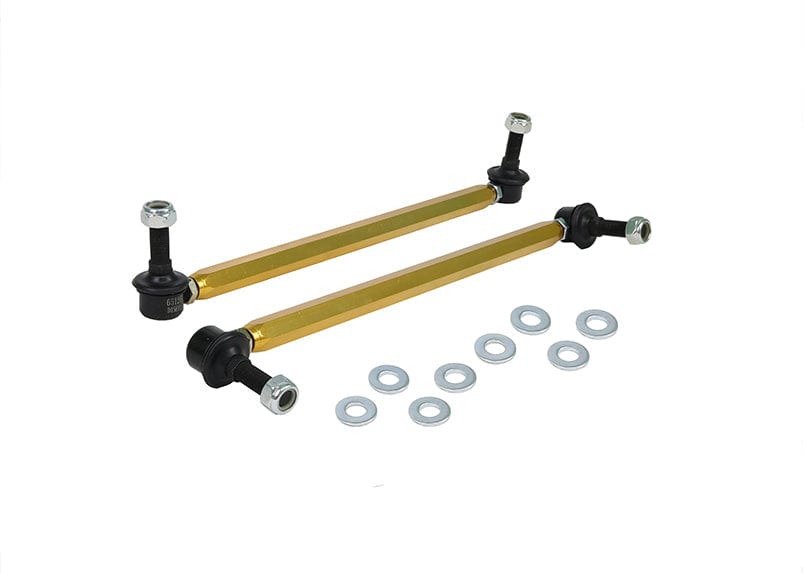

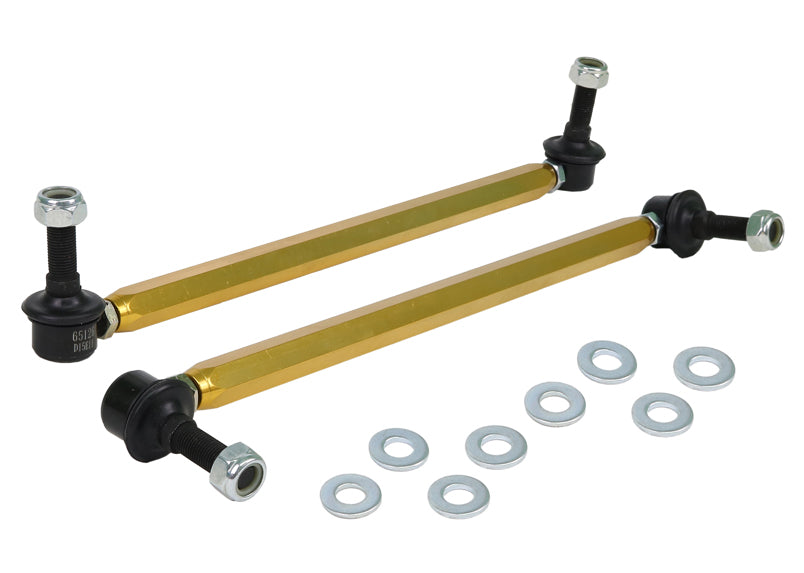

This Whiteline Adjustable Front Sway Bar Link fits the 2011-2016 Hyundai Genesis Coupe 3.8 R-Spec (BH/DH). Chassis code: BH/DH. This part is for the front of the vehicle. Application note: Adjustable Extra Heavy Duty. The part number is KLC201. In the box: 2 links and 8 washers.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Genesis Coupe, see 14mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Heavy Duty Blade Adjustable 26mm Rear Sway Bar.

Features

  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Hardware: Also in the box: locking nuts and washers.
  • Construction: Made from strong, light alloy.
  • Install guide: Written install instructions are included with the part.
Specifications
Part Number KLC201
Part Name Sway Bar Link
Vehicle 2011-2016 Hyundai Genesis Coupe 3.8 R-Spec
Chassis Code BH/DH
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 8 Washers
Length 360-385 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Lowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
2012HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
2013HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
2014HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
2015HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
2016HyundaiGenesis CoupeRWDLowered vehicle applications with 12mm studs - Adjustable Extra Heavy Duty. Length 360-385mm.
