Product Details

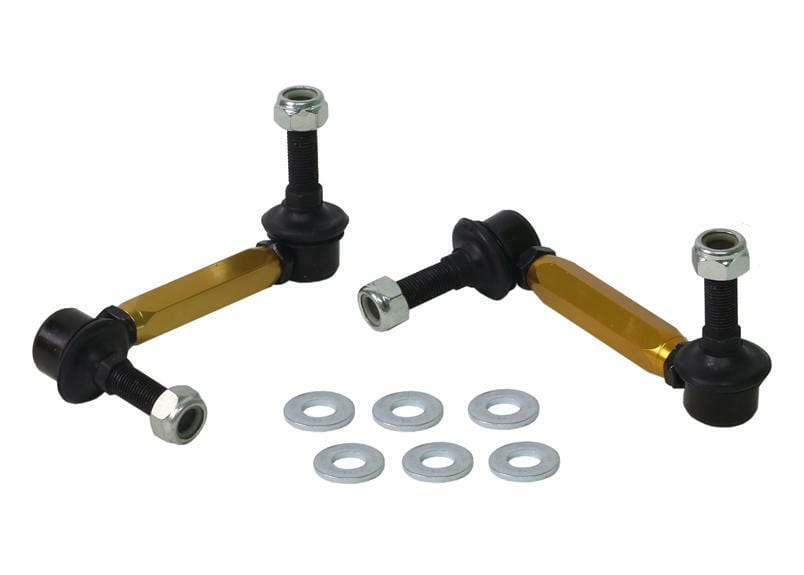

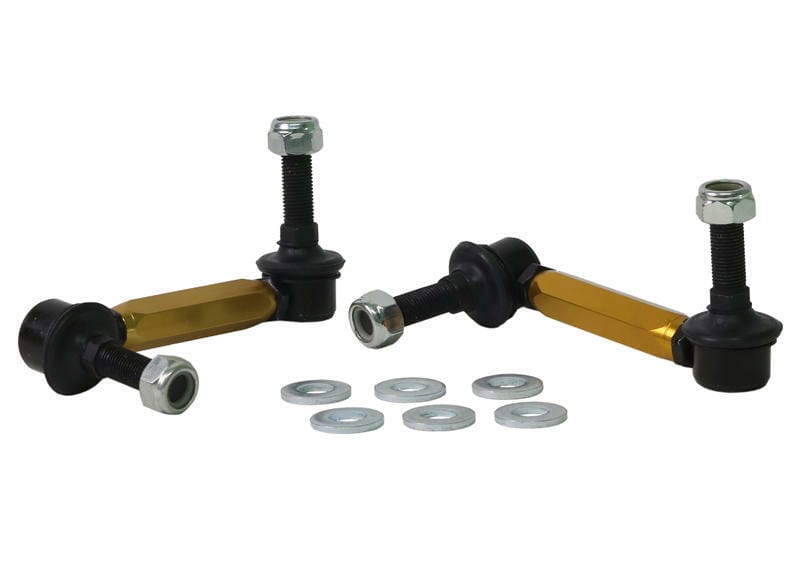

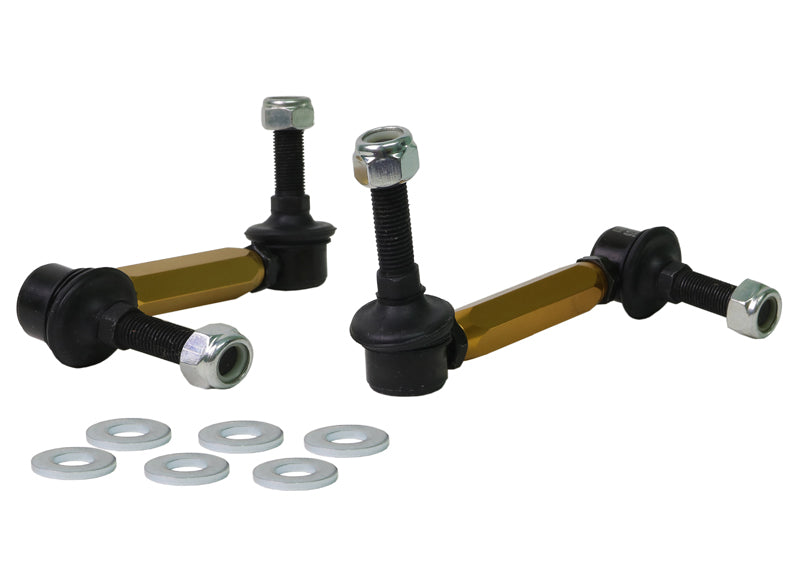

The Whiteline Front Sway Bar Link fits the 2010-2019 Toyota Hilux SR. Trim named on the listing: SR. Chassis code: AN120/AN130. This part is for the front of the vehicle. Application note: Adjustable Extra Heavy Duty. In the box: 2 links and 6 washers. Part number KLC220.
Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward.
Features
- Construction: Alloy construction keeps the weight down while handling the loads.
- Install guide: Step-by-step installation instructions come with it.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Hardware: Hardware supplied: locking nuts and washers.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
| Part Number | KLC220 |
| Part Name | Sway Bar Link |
| Vehicle | 2010-2019 Toyota Hilux SR |
| Chassis Code | AN120/AN130 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 6 Washers |
| Length | 125-150 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 125-150mm. Bolt Diameter 12mm. |
