Product Details

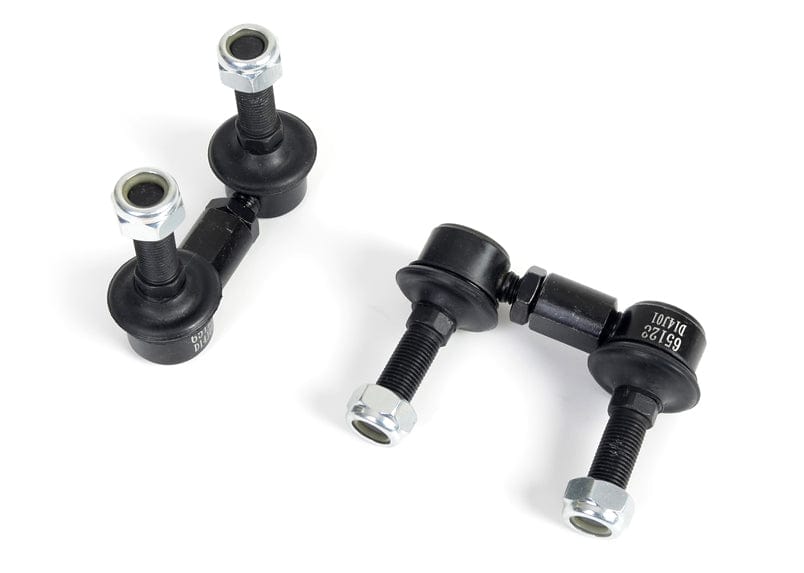

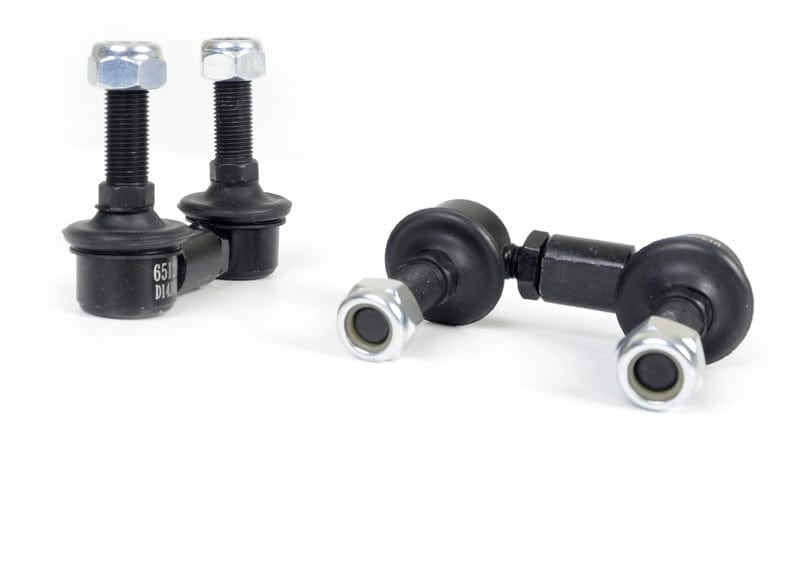

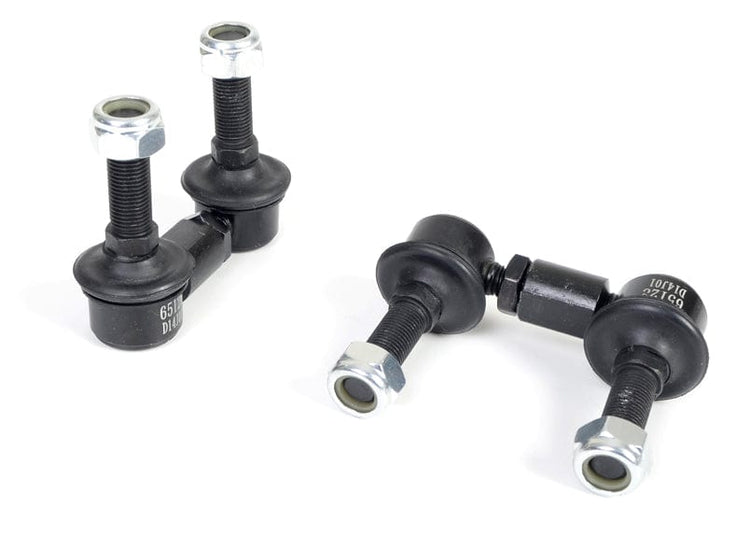

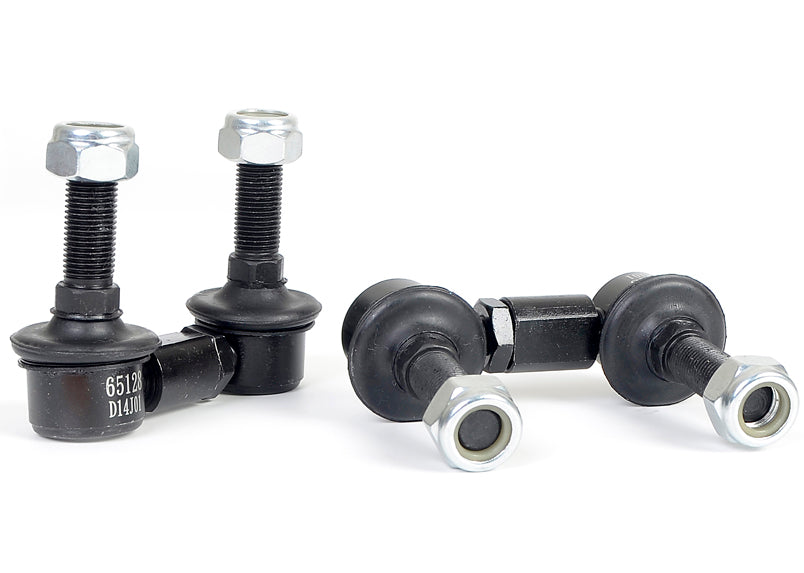

This Whiteline Adjustable Front Sway Bar Link fits the 2010-2013 Subaru Legacy 3.6R (BM/BR). The kit contains 2 links. Application note: Adjustable Extra Heavy Duty. Whiteline part number: KLC172. It goes on the front of the vehicle.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the Legacy, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Hardware: Supplied with locking nuts and washers.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Install guide: Instructions for fitting are packed in the box.
  • Material: Steel construction.
Specifications
Part Number KLC172
Part Name Sway Bar Link
Vehicle 2010-2013 Subaru Legacy 3.6R
Chassis Code BM/BR
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-75 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2011SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2012SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2013SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
