Product Details

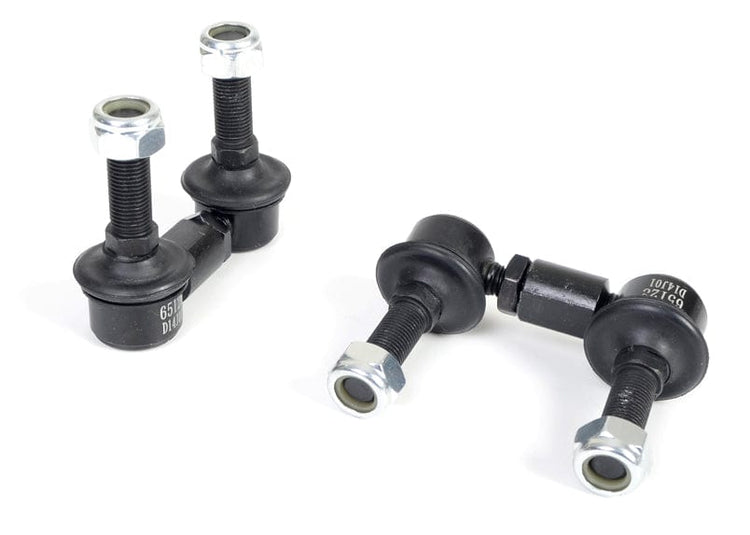

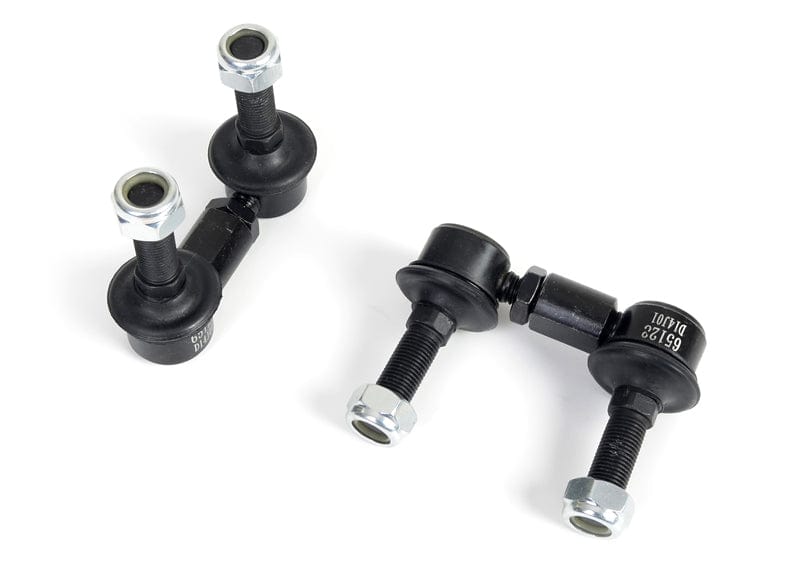

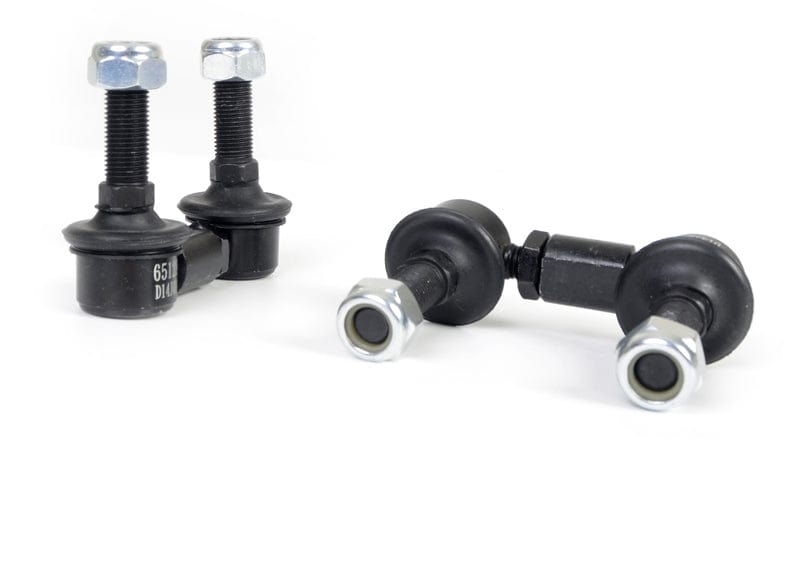

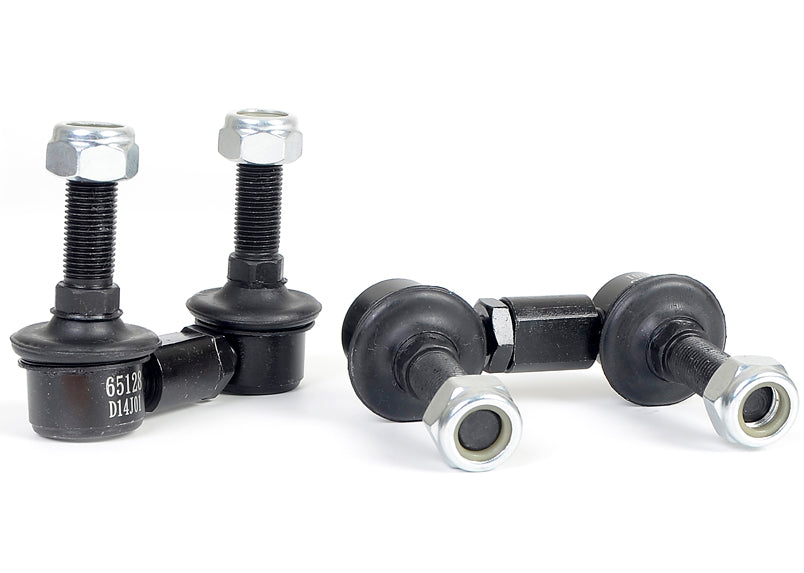

This Whiteline Adjustable Front Sway Bar Link fits the 2010-2012 Subaru Legacy 2.5GT, 3.6R Premium (BM/BR). It goes on the front of the vehicle. Application note: Adjustable Extra Heavy Duty. Chassis code: BM/BR. The kit contains 2 links. Order it as part number KLC172.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Legacy: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Install guide: An install guide comes in the box.
  • Material: The part is made of steel.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Hardware: Also in the box: locking nuts and washers.
Specifications
Part Number KLC172
Part Name Sway Bar Link
Vehicle 2010-2012 Subaru Legacy 2.5GT, 3.6R Premium
Chassis Code BM/BR
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 65-75 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2011SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2012SubaruLegacyAWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
