Product Details

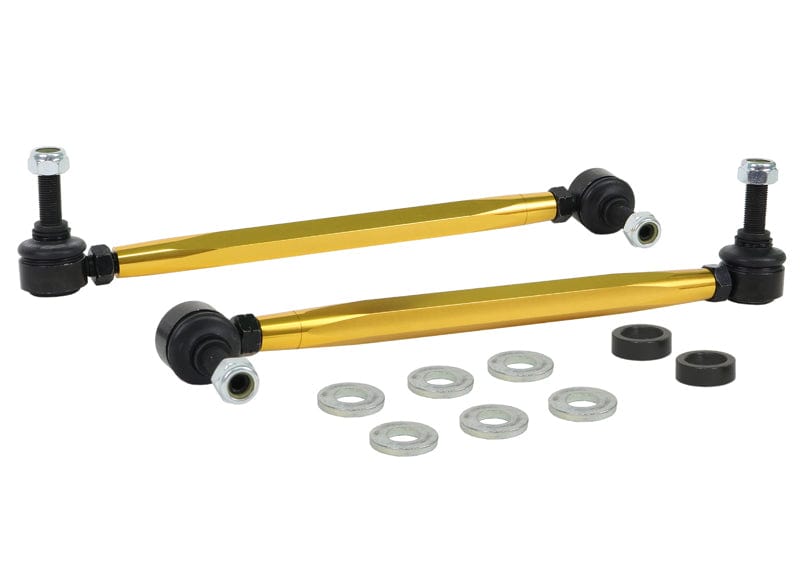

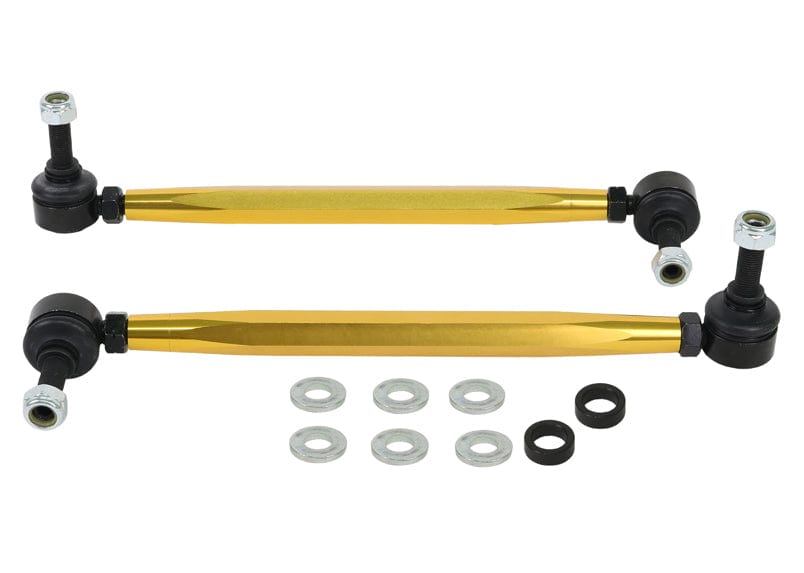

This Whiteline Adjustable Front Sway Bar Link fits the 2010-2012 Audi A3 TDI (8P). Whiteline's note for this fit: Adjustable Extra Heavy Duty. The part number is KLC167A. It goes on the front of the vehicle. In the box: 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the Audi A3: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2010-2012 Audi A3 TDI
Chassis Code 8P
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010AudiA34WDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2010AudiA3FWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011AudiA34WDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011AudiA3FWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012AudiA34WDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012AudiA3FWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
