Product Details

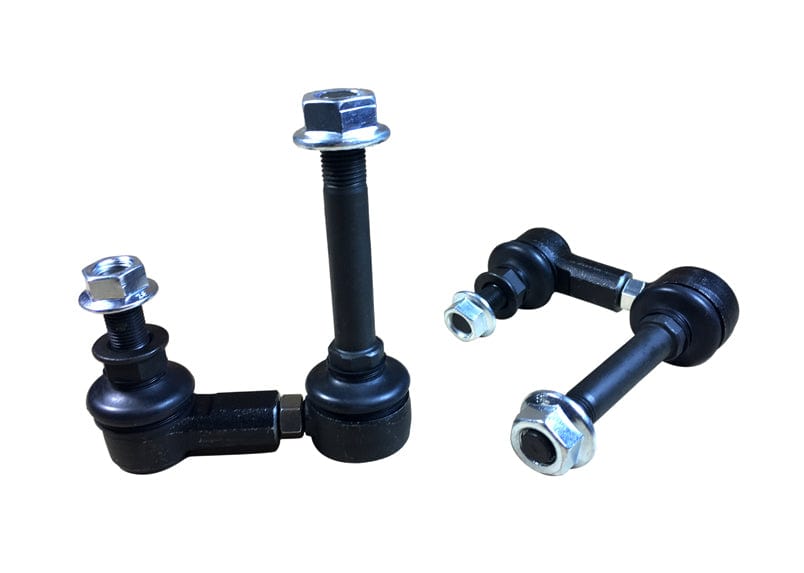

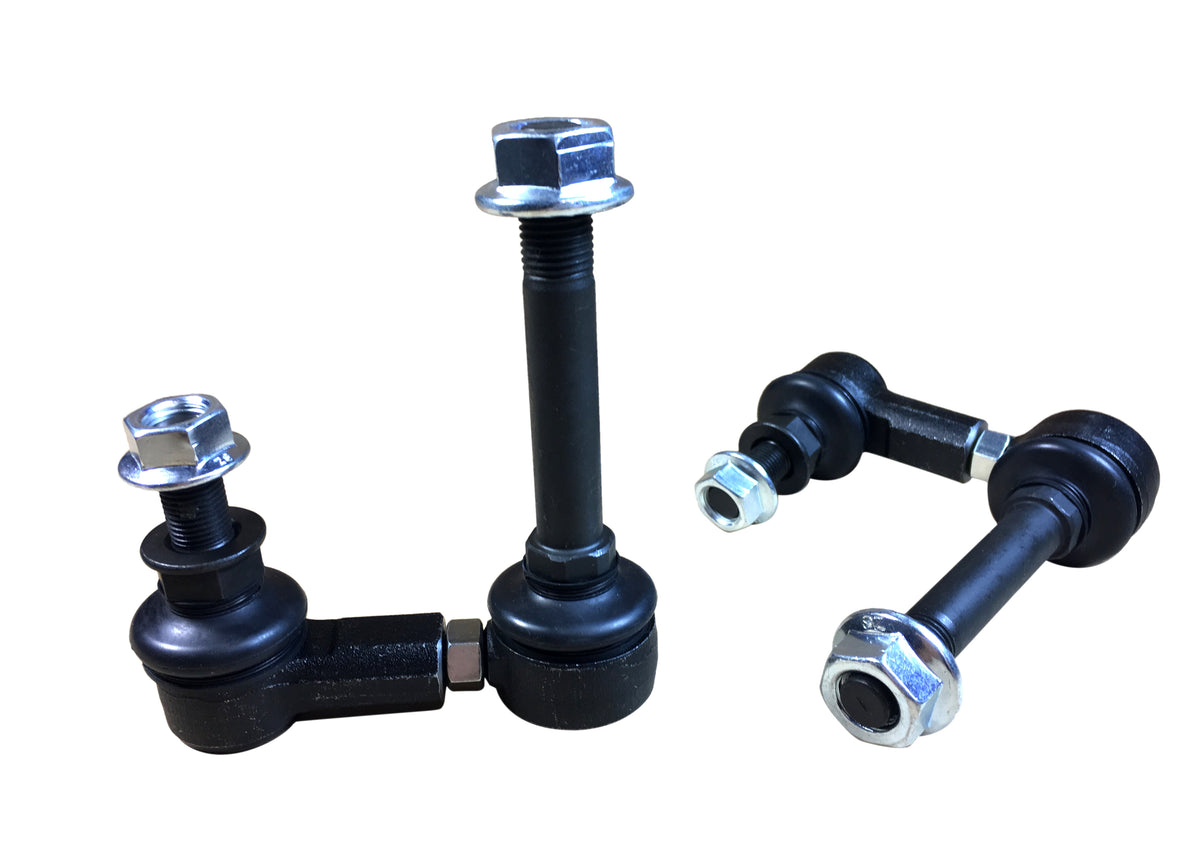

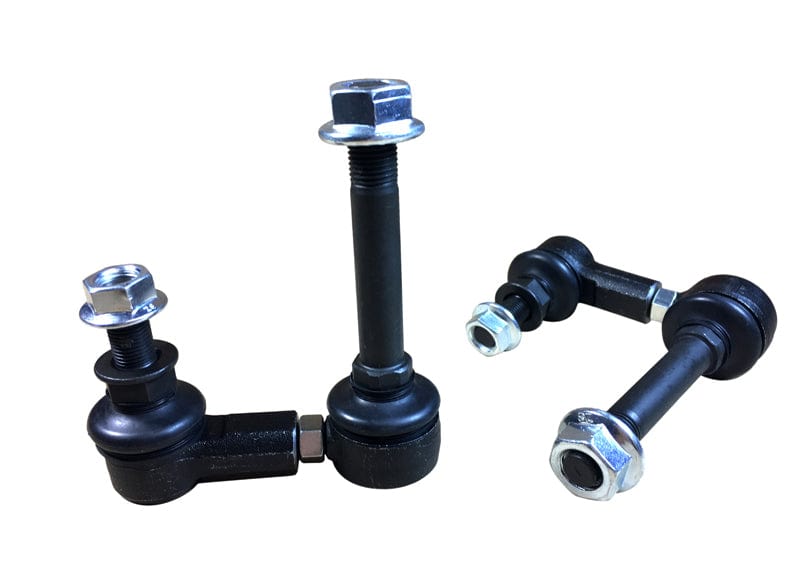

This Whiteline Adjustable Front Sway Bar Link fits the 2009-2021 Nissan 370Z Base, Nismo, Touring (Z34). Placement: front. Part number KLC204. Application note: Adjustable Extra Heavy Duty. Included: 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Front and Rear Sway Bar Kit for the 370Z.

Features

  • Material: Built from steel.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Install guide: Step-by-step installation instructions come with it.
  • Hardware: Supplied with locking nuts and washers.
Specifications
Part Number KLC204
Part Name Sway Bar Link
Vehicle 2009-2021 Nissan 370Z Base, Nismo, Touring
Chassis Code Z34
Adjustable Yes
Bolt Thread Diameter 12 / 14 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 71-84 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2010Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2011Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2012Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2013Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2014Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2015Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2016Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2017Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2018Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2019Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2020Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2021Nissan370ZRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
