Product Details

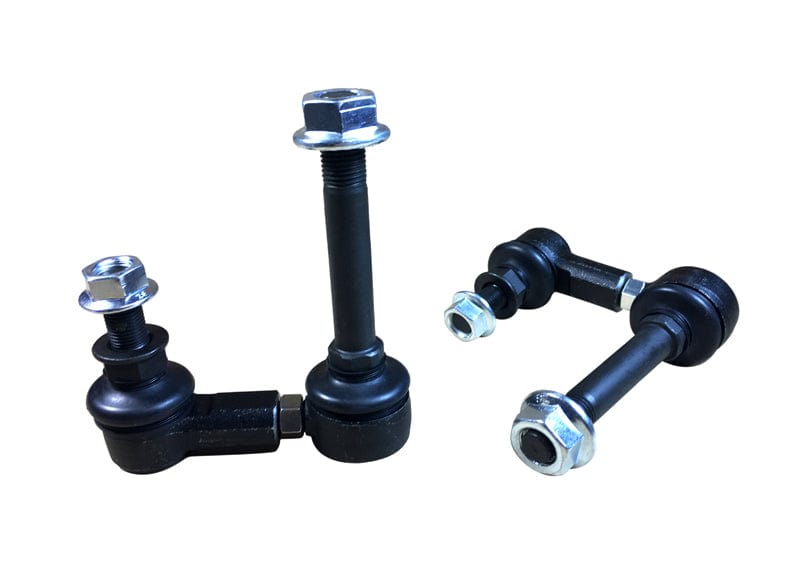

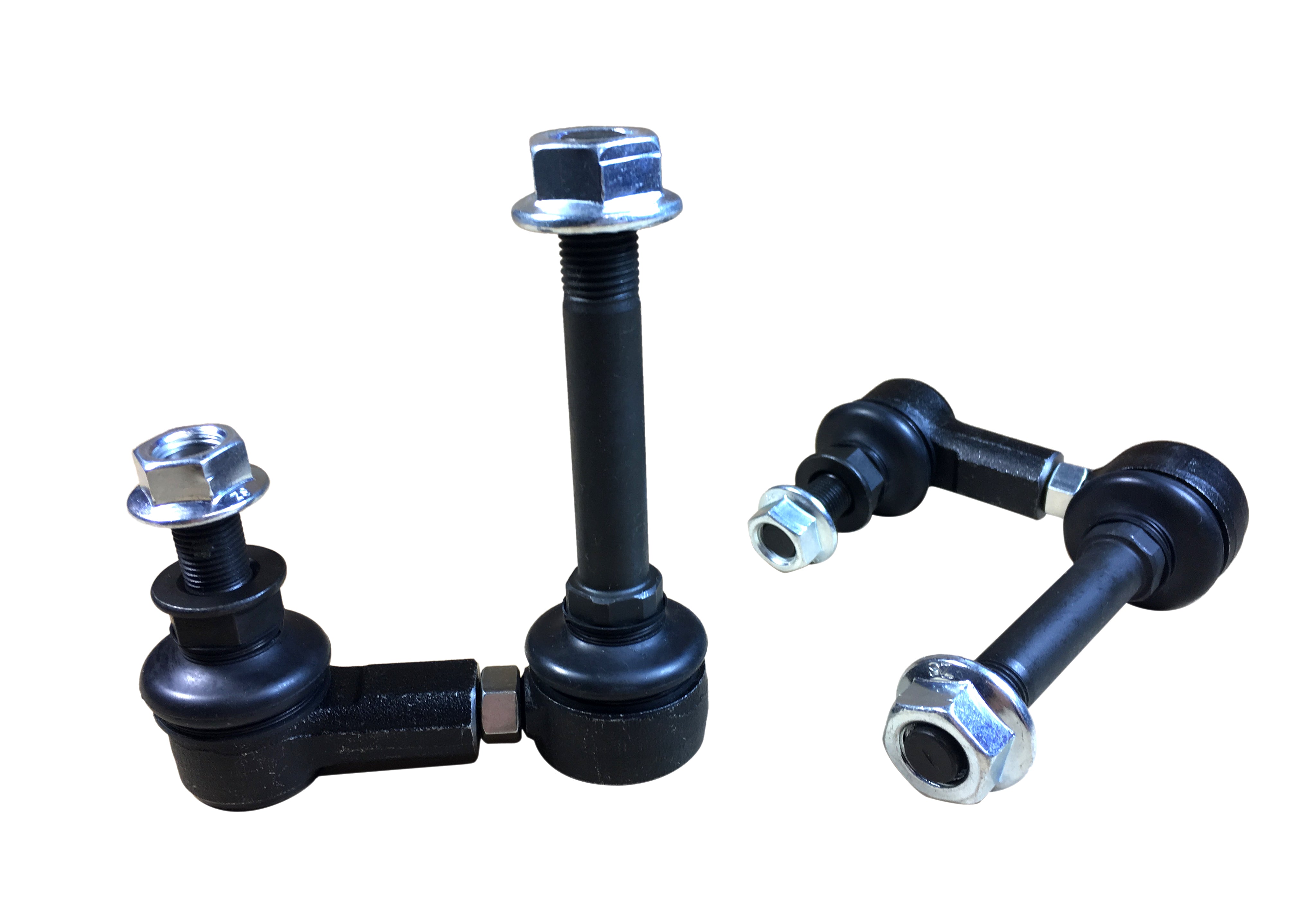

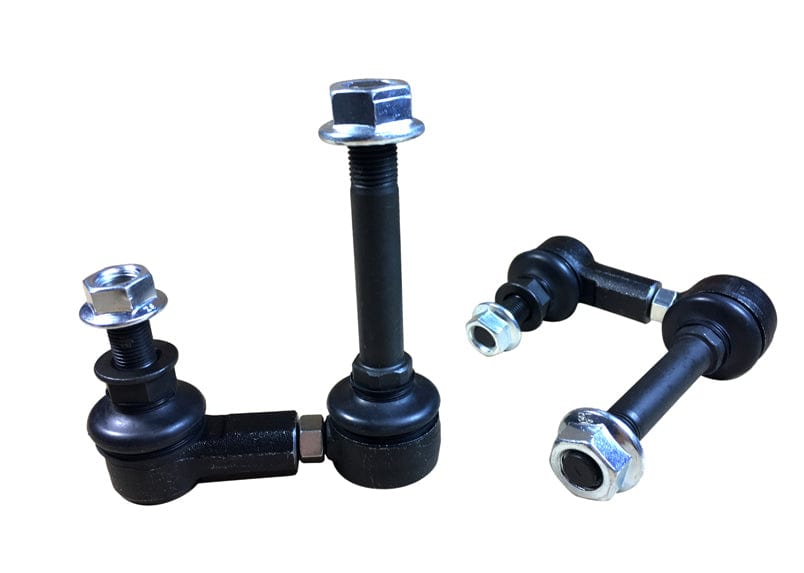

This Whiteline Adjustable Front Sway Bar Link fits the 2009-2013 Infiniti G37x (FM). Whiteline part number: KLC204. It goes on the front of the vehicle. The kit contains 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. A wheel alignment is not required. To go with it on the G37x, see Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Rear Trailing Arm Bushing.

Features

  • Material: Built from steel.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Hardware: The kit includes locking nuts and washers.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Install guide: Instructions for fitting are packed in the box.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
Specifications
Part Number KLC204
Part Name Sway Bar Link
Vehicle 2009-2013 Infiniti G37x
Drivetrain RWD/AWD
Chassis Code FM
Adjustable Yes
Bolt Thread Diameter 12 / 14 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 71-84 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009InfinitiG37RWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2009InfinitiG37AWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2009InfinitiG37xRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2009InfinitiG37xAWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2010InfinitiG37RWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2010InfinitiG37AWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2010InfinitiG37xRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2010InfinitiG37xAWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2011InfinitiG37RWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2011InfinitiG37AWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2011InfinitiG37xRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2011InfinitiG37xAWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2012InfinitiG37RWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2012InfinitiG37AWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2012InfinitiG37xRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2012InfinitiG37xAWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2013InfinitiG37RWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2013InfinitiG37AWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2013InfinitiG37xRWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
2013InfinitiG37xAWDAdjustable Extra Heavy Duty. Length 71-84mm. Bolt Diameters 12 & 14mm.
