Product Details

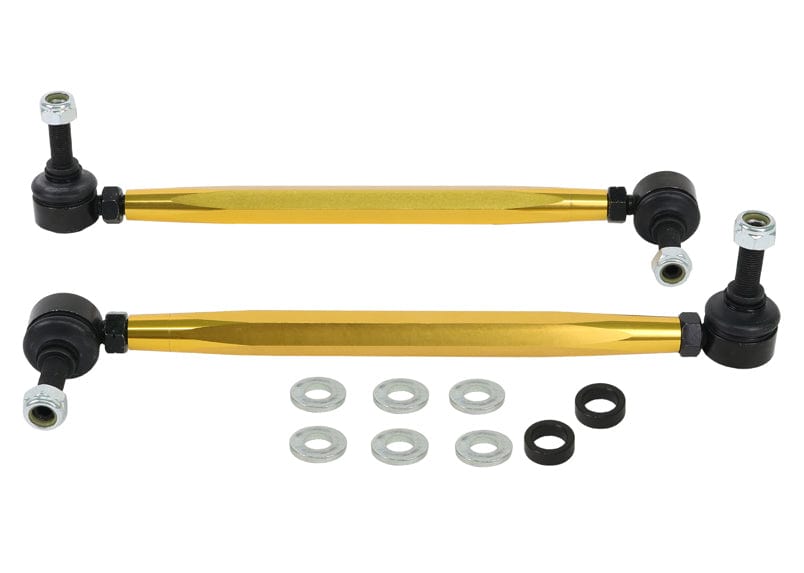

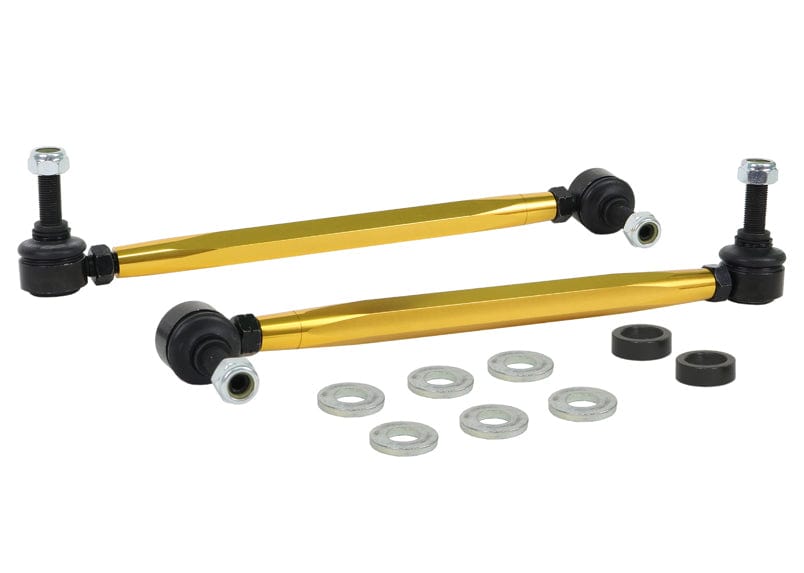

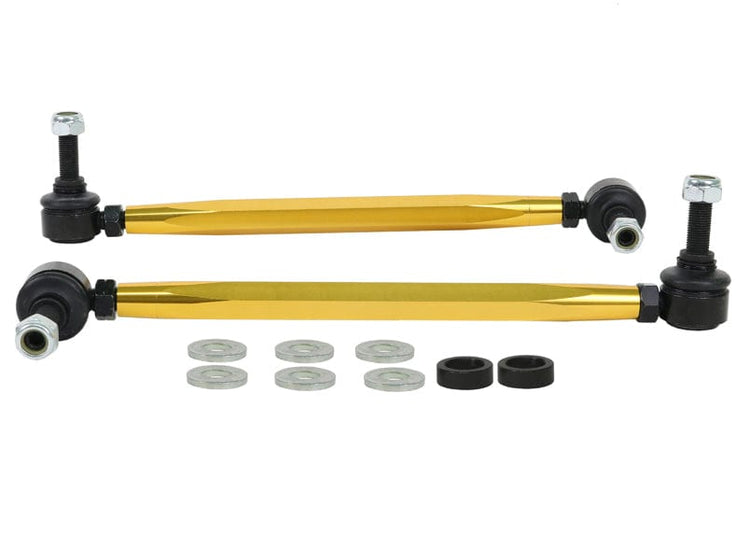

This Whiteline Adjustable Front Sway Bar Link fits the 2009-2011 Volkswagen CC Luxury, Sport, VR6 4Motion (3C). Position: front. In the box: 2 links. The part number is KLC167A. Application note: Adjustable Extra Heavy Duty.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Volkswagen CC: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Rear Bushing.
Features
- Construction: Alloy construction keeps the weight down while handling the loads.
- Install guide: Instructions for fitting are packed in the box.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
| Part Number | KLC167A |
| Part Name | Sway Bar Link |
| Vehicle | 2009-2011 Volkswagen CC Luxury, Sport, VR6 4Motion |
| Chassis Code | 3C |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 320-345 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm. |
