Product Details

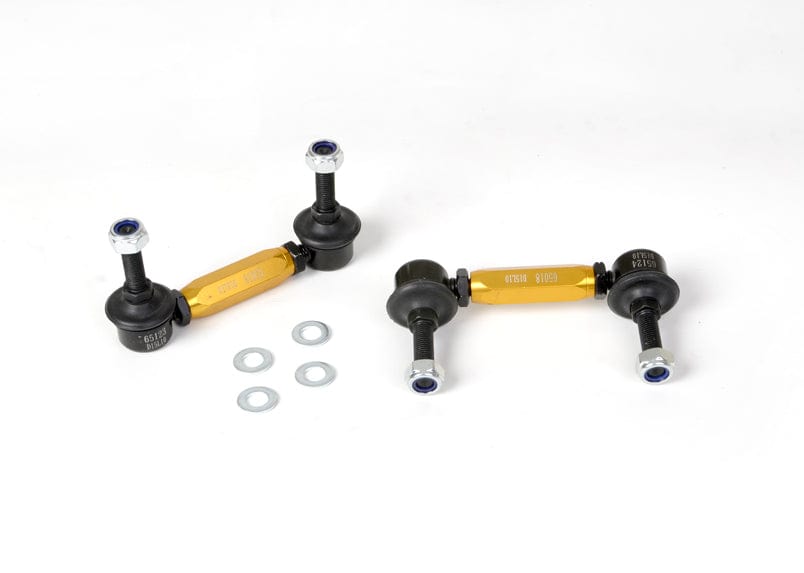

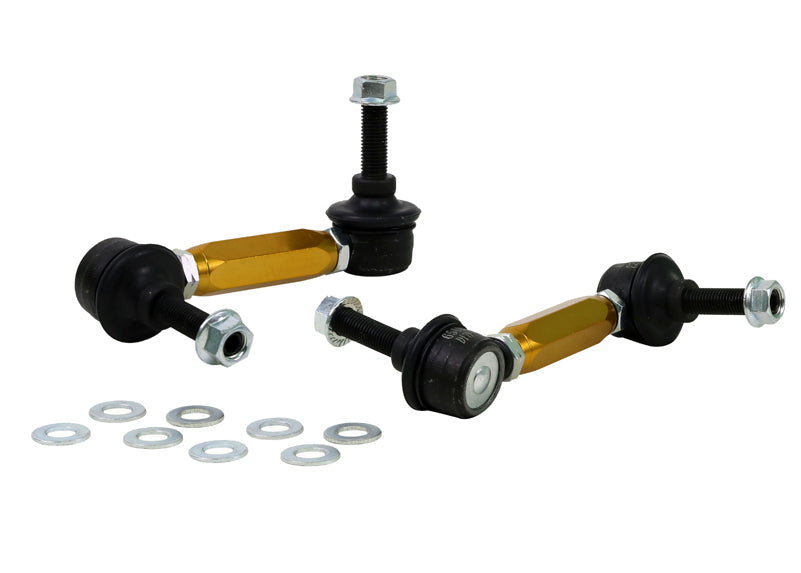

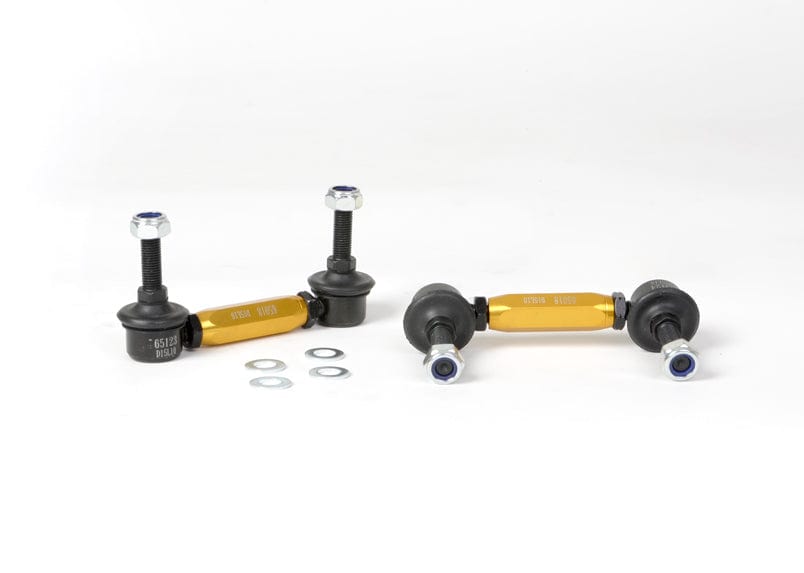

This Whiteline Adjustable Front Sway Bar Link fits the 2009-2011 Mazda RX-8 R3 (SE3P). Whiteline's note for this fit: Suits models with control arm link mount: adjustable extra heavy duty. Position: front. You receive 2 links. The part number is KLC141.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect an easy job of about 1 hour. A wheel alignment is not required. To go with it on the RX-8, see Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing.

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Hardware: Supplied with locking nuts and washers.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Material: The part is made of steel.
  • Install guide: Step-by-step installation instructions come with it.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC141
Part Name Sway Bar Link
Vehicle 2009-2011 Mazda RX-8 R3
Chassis Code SE3P
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 115-140 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Suits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2010MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2011MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
