Product Details

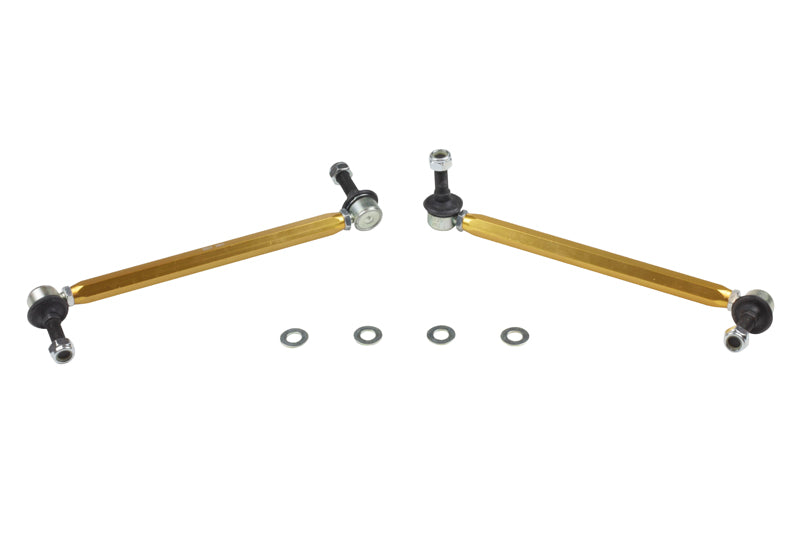

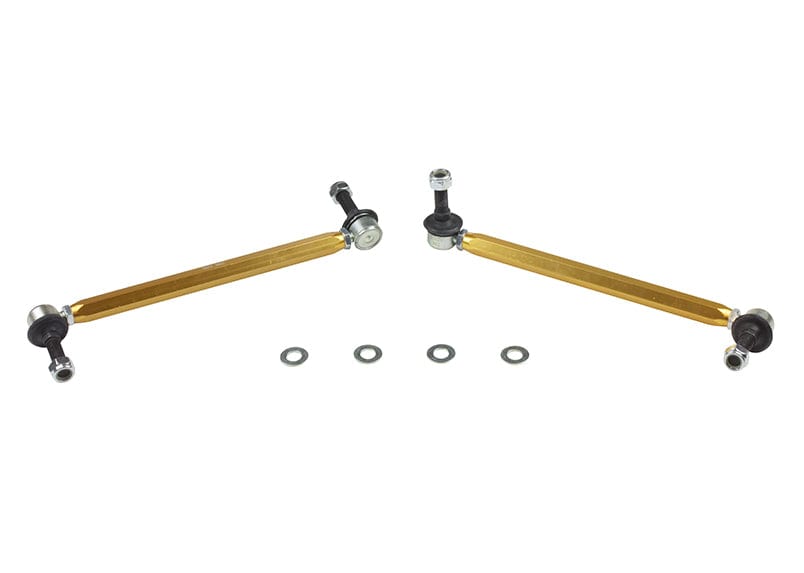

This Whiteline Adjustable Front Sway Bar Link fits the 2008-2010 Chevrolet HHR SS (Delta). Position: front. You receive 2 links. Whiteline part number: KLC175. Whiteline's note for this fit: Adjustable Extra Heavy Duty.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. We also list 12mm Adjustable Front Camber Bolts, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Front Lower Inner Rear Control Arm Bushing Kit for the Chevrolet HHR.
Features
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Install guide: Whiteline packs an install guide with it.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Hardware: Hardware supplied: locking nuts and washers.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
| Part Number | KLC175 |
| Part Name | Sway Bar Link |
| Vehicle | 2008-2010 Chevrolet HHR SS |
| Chassis Code | Delta |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 285-305 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm. |
