Product Details

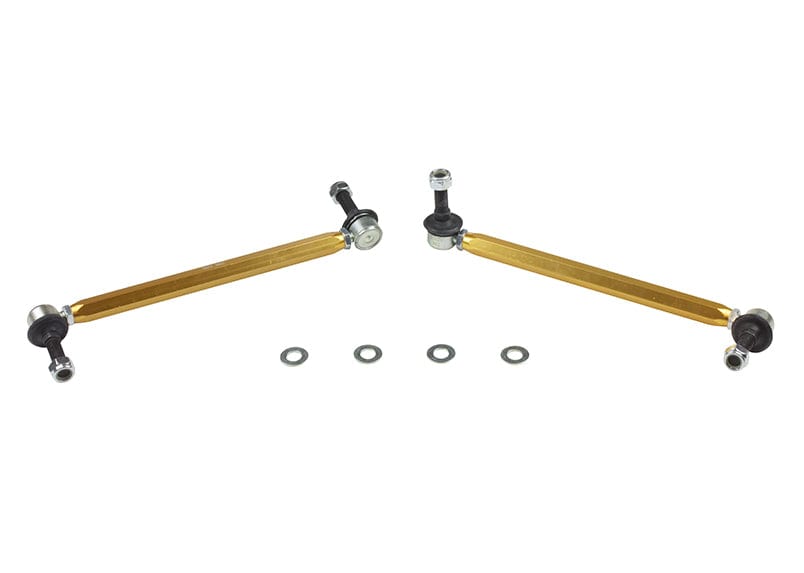

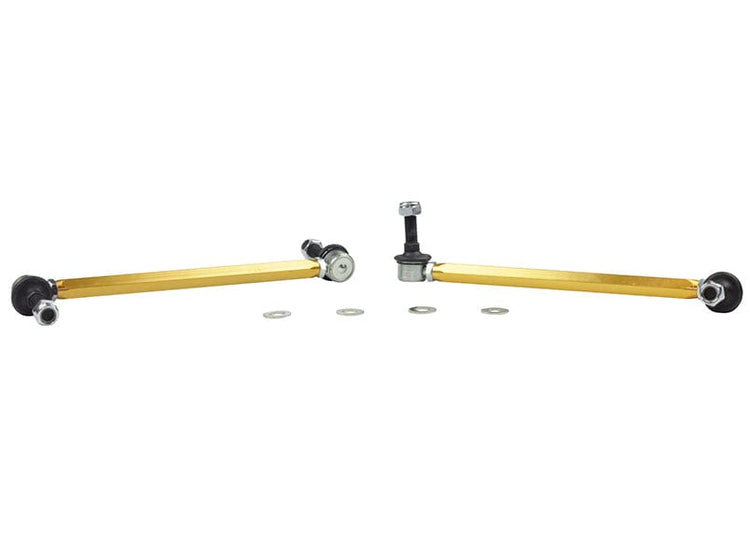

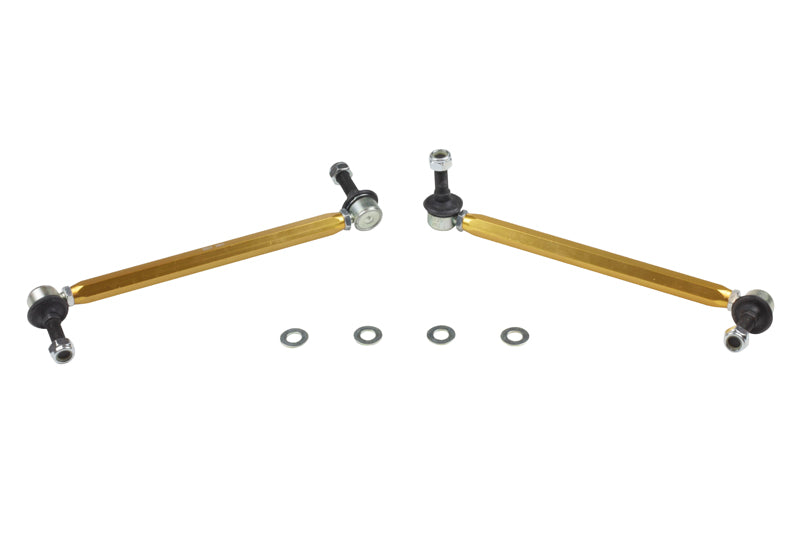

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2009 Pontiac G5 Base, GT (Delta). Whiteline's note for this fit: Adjustable Extra Heavy Duty. In the box: 2 links. Whiteline part number: KLC175. Placement: front.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Pontiac G5, see 12mm Adjustable Front Camber Bolts, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Front Lower Inner Rear Control Arm Bushing Kit.

Features

  • Hardware: Hardware supplied: locking nuts and washers.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Install guide: Written install instructions are included with the part.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
Specifications
Part Number KLC175
Part Name Sway Bar Link
Vehicle 2007-2009 Pontiac G5 Base, GT
Chassis Code Delta
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 285-305 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007PontiacG5FWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2008PontiacG5FWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2009PontiacG5FWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
