Product Details

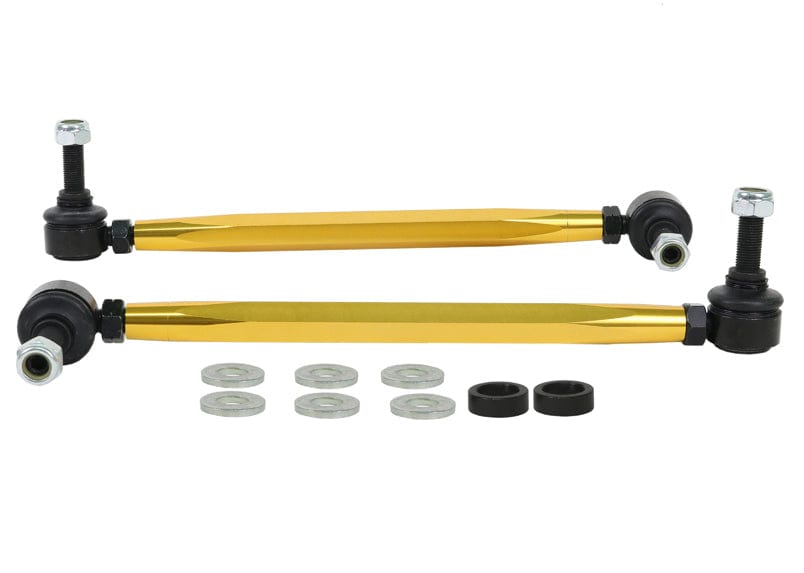

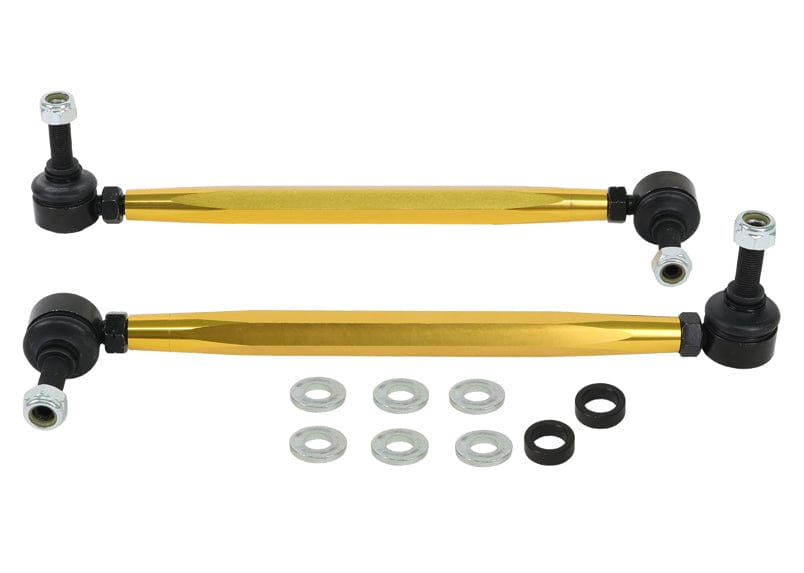

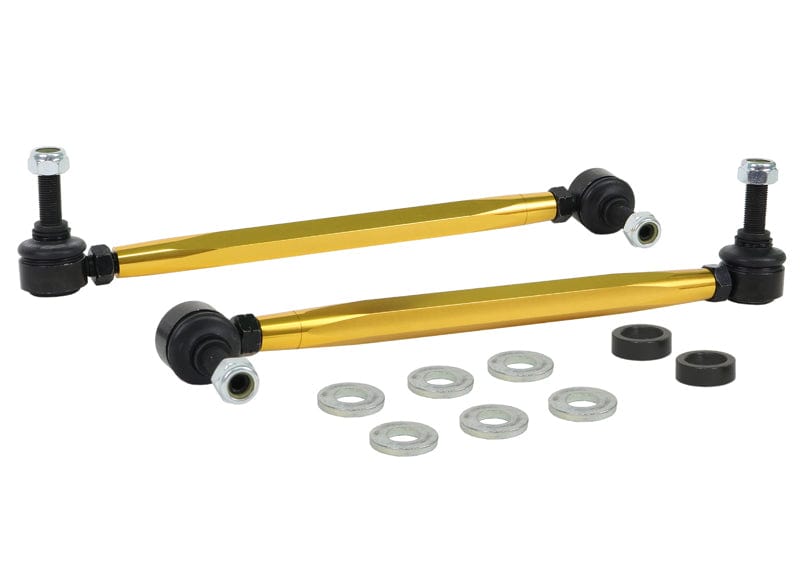

This Whiteline Adjustable Front Sway Bar Link fits the 2005-2012 Volkswagen Golf/GTI TDI (1K). The part number is KLC167A. It goes on the front of the vehicle. The kit contains 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Golf/GTI: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Hardware: The kit includes locking nuts and washers.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Install guide: Instructions for fitting are packed in the box.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2005-2012 Volkswagen Golf/GTI TDI
Chassis Code 1K
Drivetrain FWD
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2005VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2006VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2006VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2007VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2007VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2008VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2008VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2009VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2009VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2010VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2010VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
