Product Details

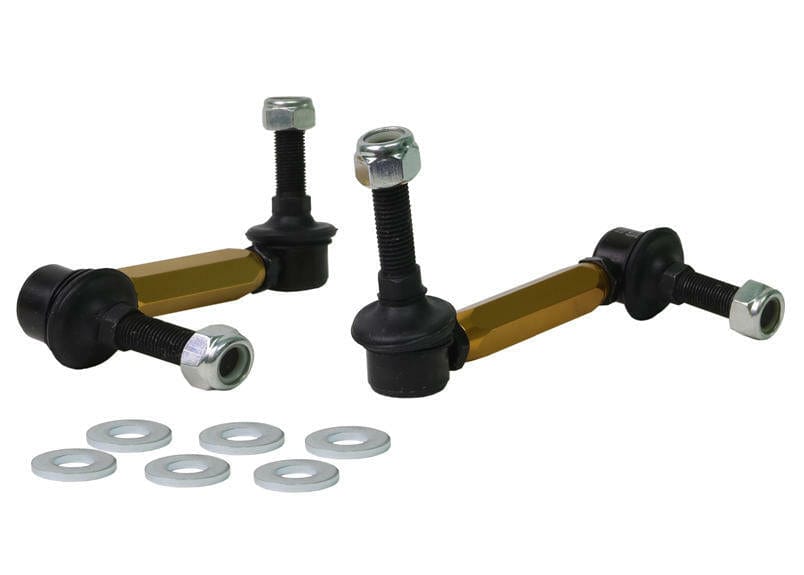

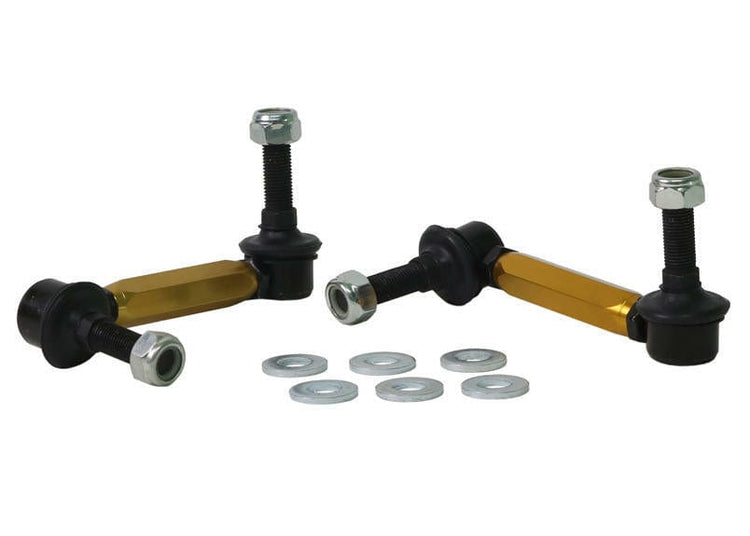

Made to fit the 2004-2019 Toyota Hilux Base, the Front Sway Bar Link from Whiteline. Trim named on the listing: Base. Chassis code: AN10/AN20/AN30/AN120/AN130. You receive 2 links and 6 washers. Placement: front. Application note: Adjustable Extra Heavy Duty. Order it as part number KLC220.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment.
Features
- Anodized alloy: The alloy carries an anodized finish for durability.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Install guide: Instructions for fitting are packed in the box.
Specifications
| Part Number | KLC220 |
| Part Name | Sway Bar Link |
| Vehicle | 2004-2019 Toyota Hilux Base |
| Chassis Code | AN10/AN20/AN30/AN120/AN130 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 6 Washers |
| Length | 125-150 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 125-150mm. Bolt Diameter 12mm. |
