Product Details

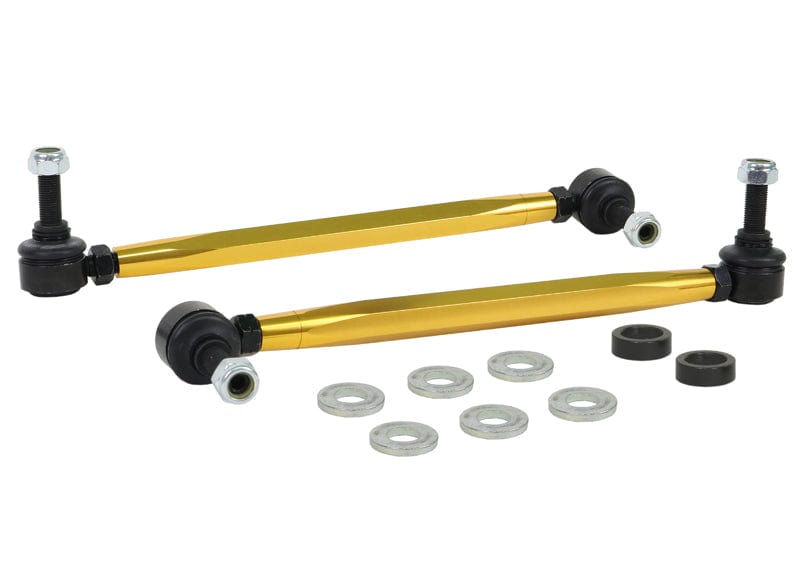

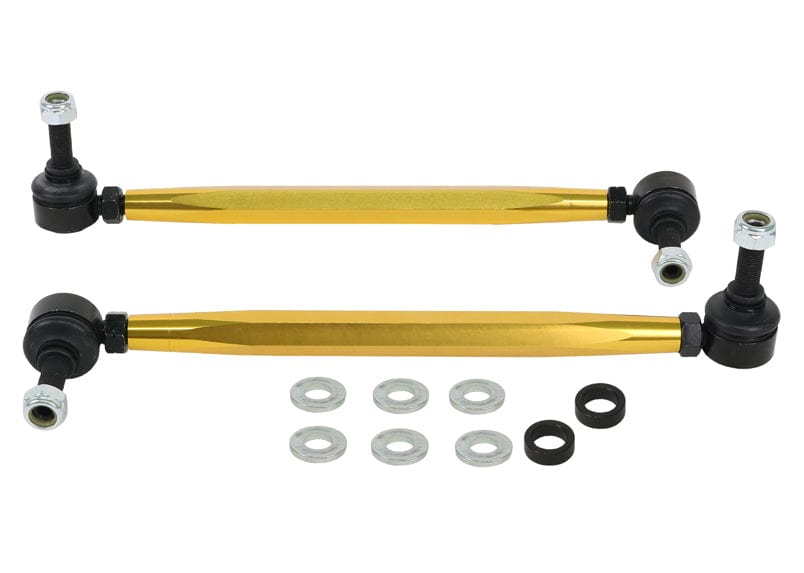

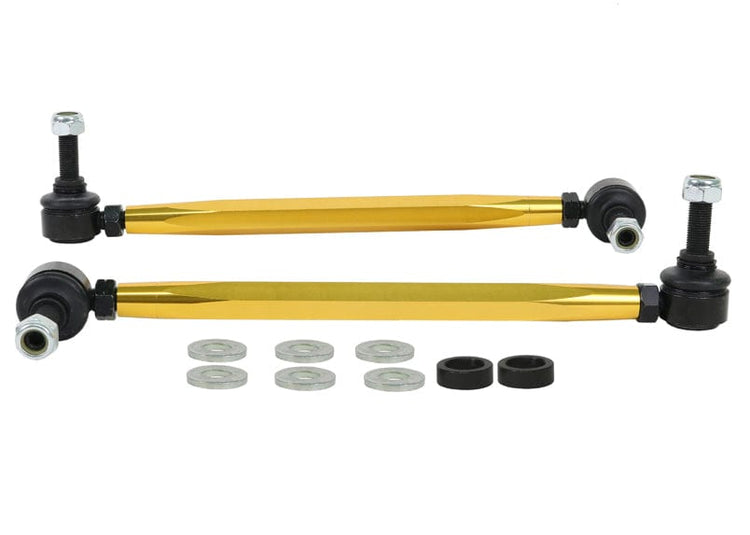

This Whiteline Adjustable Front Sway Bar Link fits the 2003 Volkswagen Golf/GTI 20th Anniversary (1J). It goes on the front of the vehicle. Whiteline part number: KLC167A. Application note: Adjustable Extra Heavy Duty. Included: 2 links.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar for the Golf/GTI.

Features

  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2003 Volkswagen Golf/GTI GTI 20th Anniversary
Chassis Code 1J
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2003VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
