Product Details

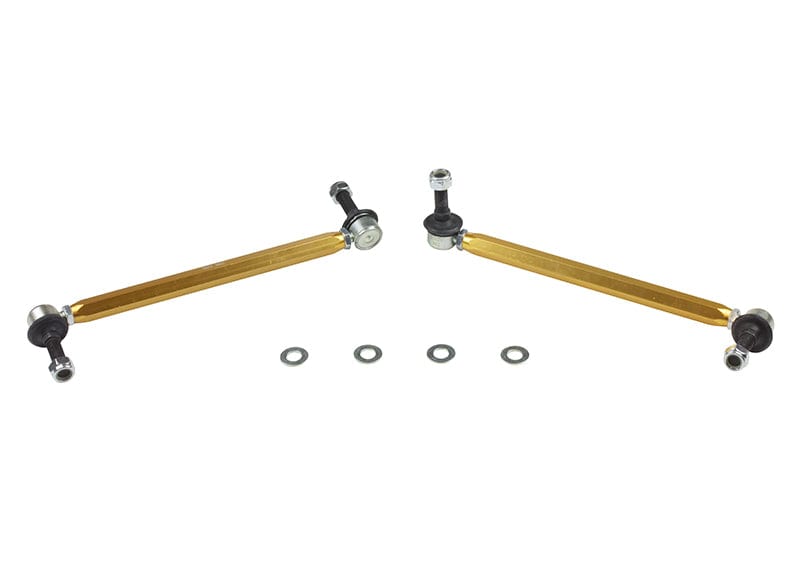

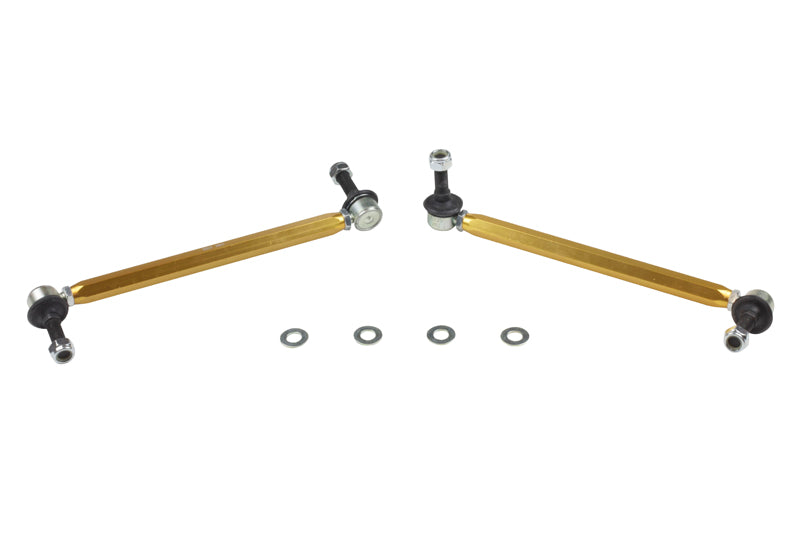

This Whiteline Adjustable Front Sway Bar Link fits the 2003-2007 Saturn Ion 2, 3 (Delta). Position: front. Included: 2 links. The part number is KLC175. Application note: Adjustable Extra Heavy Duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. We also list 12mm Adjustable Front Camber Bolts, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Front Lower Inner Rear Control Arm Bushing Kit for the Saturn Ion.

Features

  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Install guide: An install guide comes in the box.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
Part Number KLC175
Part Name Sway Bar Link
Vehicle 2003-2007 Saturn Ion 2, 3
Chassis Code Delta
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 285-305 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003SaturnIonFWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2004SaturnIonFWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2005SaturnIonFWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2006SaturnIonFWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
2007SaturnIonFWDAdjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm.
