Product Details

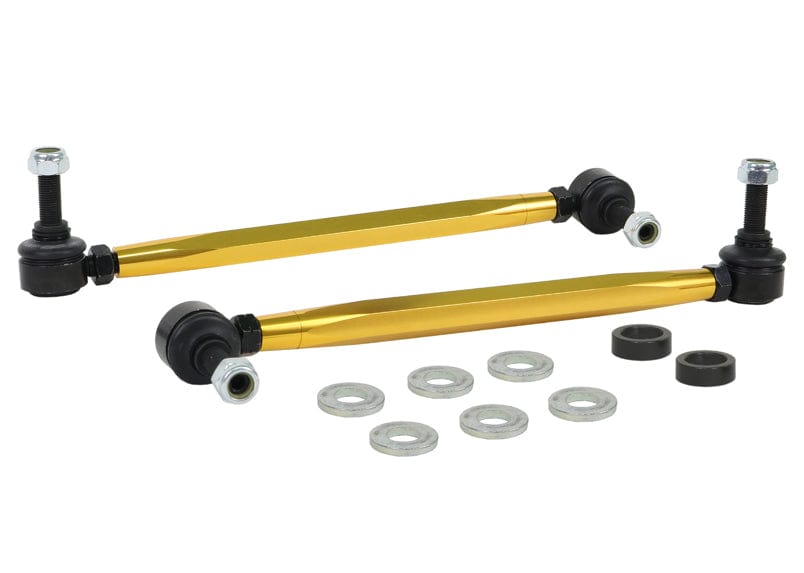

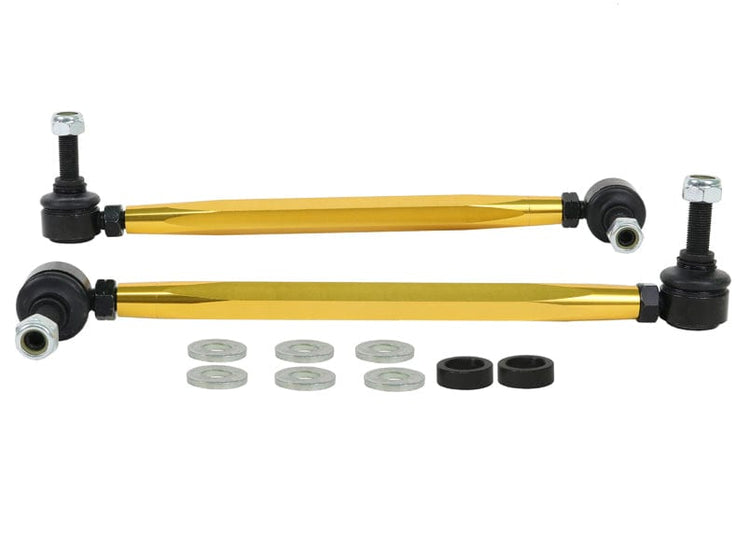

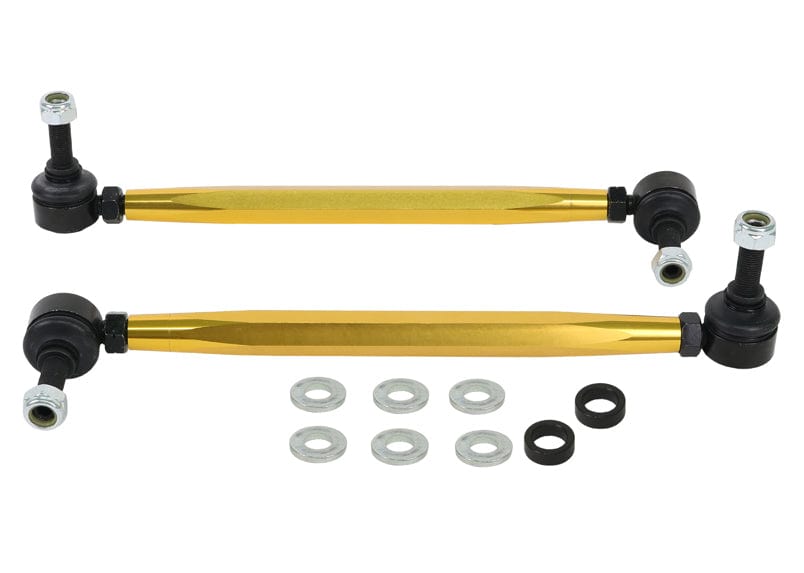

This Whiteline Adjustable Front Sway Bar Link fits the 2003-2006 Volkswagen Golf/GTI GL, GLS, GTI 1.8T (1J). Application note: Adjustable Extra Heavy Duty. Position: front. Order it as part number KLC167A. You receive 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. We also list Adjustable Rear Sway Bar Link, Front Steering Rack And Pinion Mount Bushing, and Front Control Arm Lower Inner Front Bushing for the Golf/GTI.

Features

  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Hardware: Supplied with locking nuts and washers.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Construction: High-strength alloy gives the strength needed without much weight.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2003-2006 Volkswagen Golf/GTI GL, GLS, GTI 1.8T
Chassis Code 1J
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2003VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2004VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2004VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2005VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2005VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2006VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2006VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
