Product Details

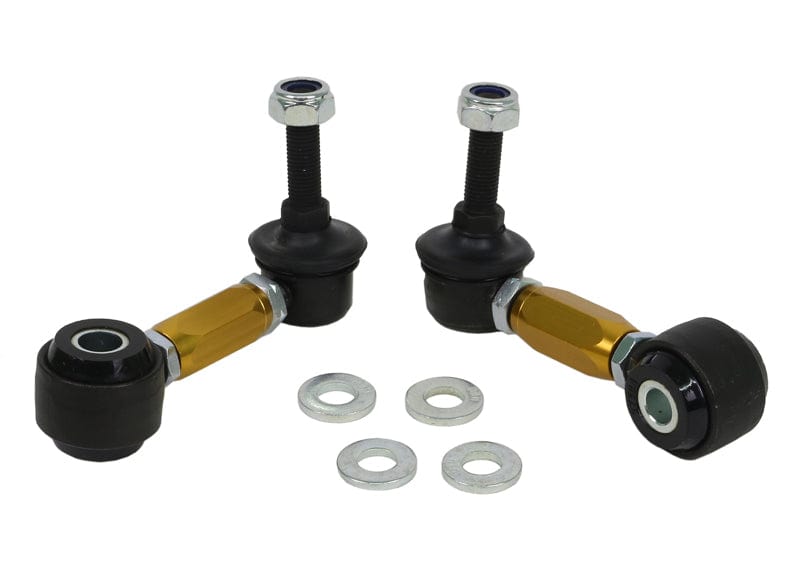

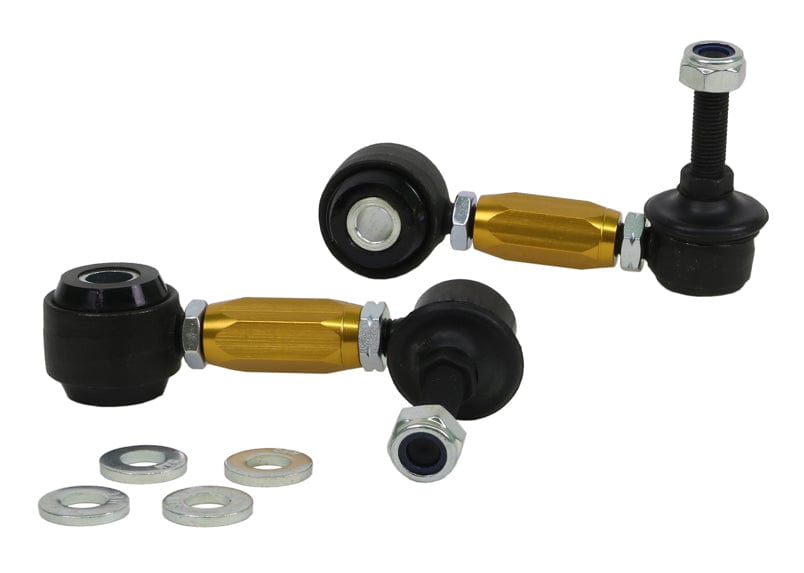

This Whiteline Adjustable Front Sway Bar Link fits the 1997 Mazda MX-5 Miata STO (NA/NB). Chassis code: NA/NB. In the box: 2 links and 4 washers. It goes on the front of the vehicle. Whiteline part number: KLC203. Application note: Adjustable Extra Heavy Duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the MX-5 Miata, see Adjustable Sway Bar Vehicle Link Kit, Front and Rear Sway Bar Kit, and Front Strut Tower Brace.

Features

  • Hardware: Also in the box: locking nuts and washers.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
Part Number KLC203
Part Name Sway Bar Link
Vehicle 1997 Mazda MX-5 Miata STO
Chassis Code NA/NB
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 95-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
