Product Details

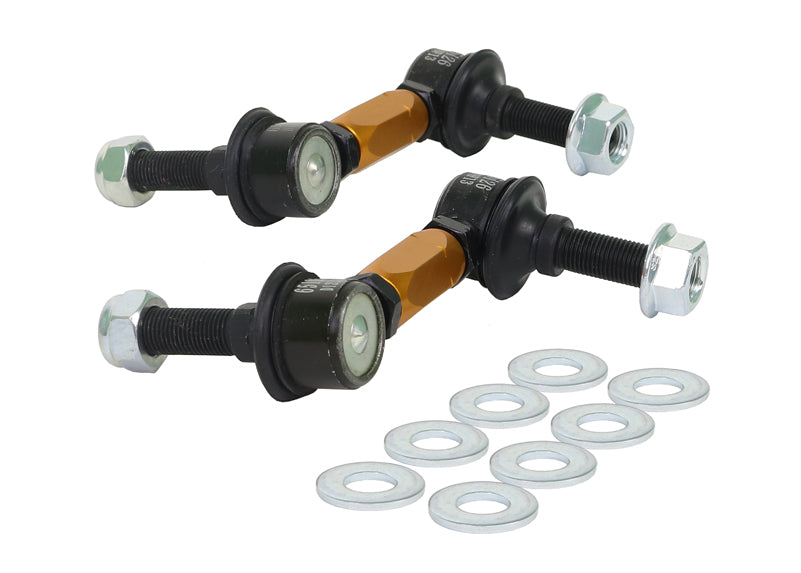

This Whiteline Front Sway Bar Link fits the 1997-2019 Chevrolet Corvette Base (C5/C6/C7). The part number is KLC110. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Placement: front. You receive 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. We also list Rear Sway Bar Link for the Corvette.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Install guide: An install guide comes in the box.
  • Hardware: The kit includes locking nuts and washers.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Construction: Alloy construction keeps the weight down while handling the loads.
Specifications
Part Number KLC110
Part Name Sway Bar Link
Vehicle 1997-2019 Chevrolet Corvette Base
Chassis Code C5/C6/C7
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
1998ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
1999ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2000ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2001ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2002ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2003ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2004ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2005ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2006ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2007ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2008ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2009ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2010ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2011ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2012ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2013ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2014ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2015ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
2016ChevroletCorvetteRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt diameter 12mm.
