Product Details

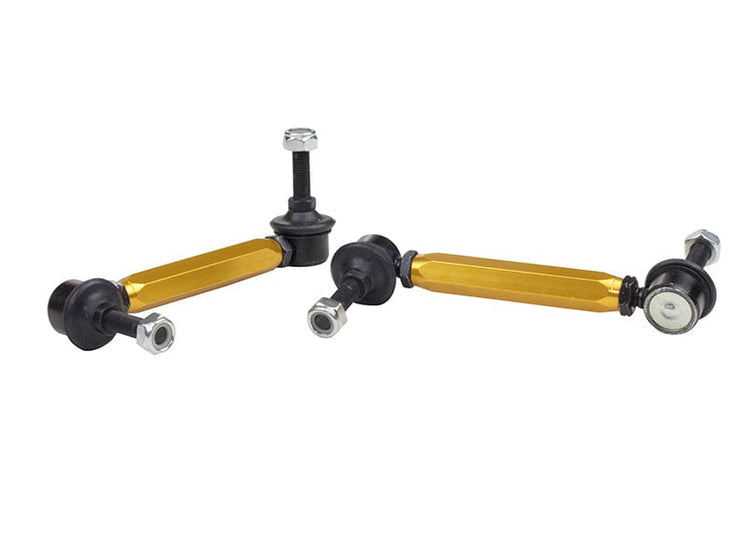

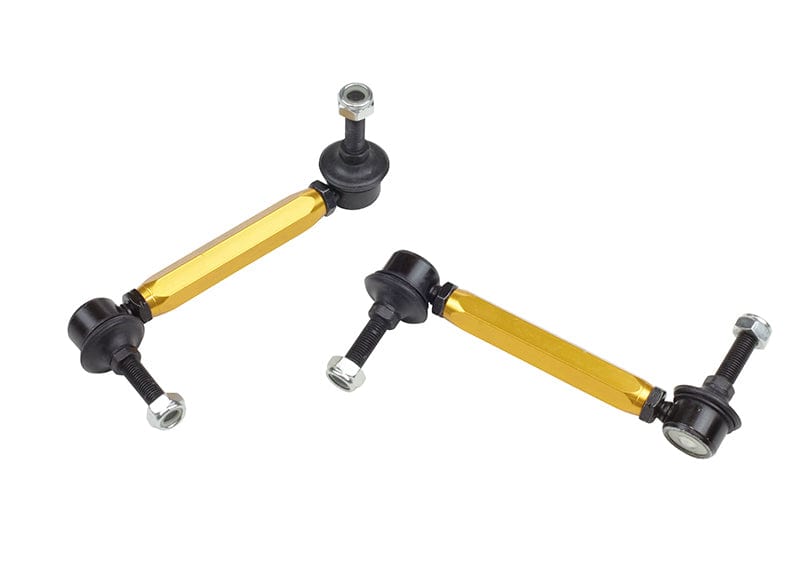

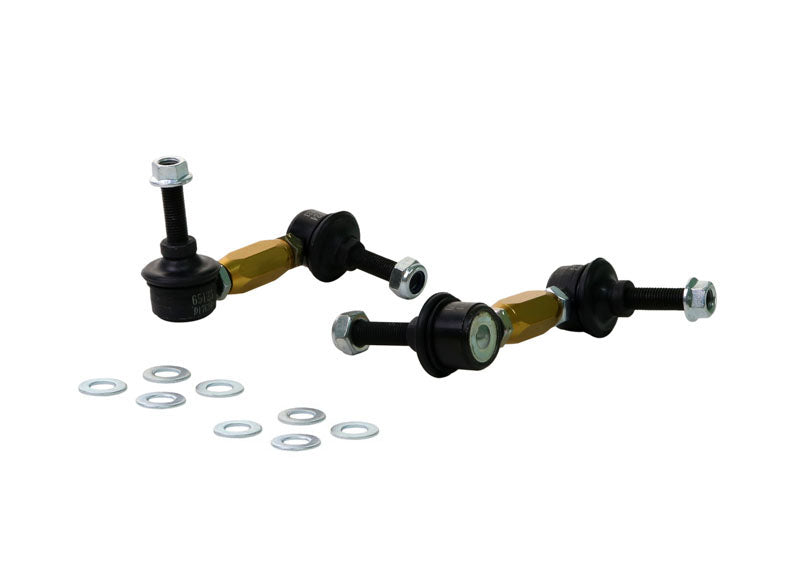

This Whiteline Front Sway Bar Link fits the 1996 Isuzu Trooper SE (UBS). Order it as part number KLC102. Application note: Adjustable Extra Heavy Duty. This part is for the front of the vehicle. In the box: 2 links.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. We also list Rear Sway Bar Link and Front Upper Shock Absorber Bushing Kit for the Trooper.

Features

  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Hardware: Supplied with locking nuts.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Install guide: An install guide comes in the box.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
Specifications
Part Number KLC102
Part Name Sway Bar Link
Vehicle 1996 Isuzu Trooper SE
Drivetrain 4WD
Chassis Code UBS
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 150-175 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 150-175mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1996IsuzuTrooper4WDAdjustable Extra Heavy Duty. Length 150-175mm. Bolt Diameter 10mm.
