Product Details

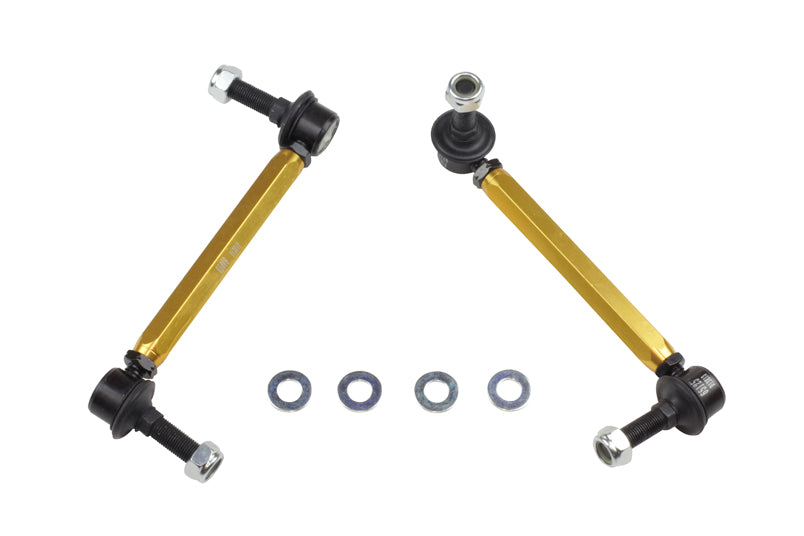

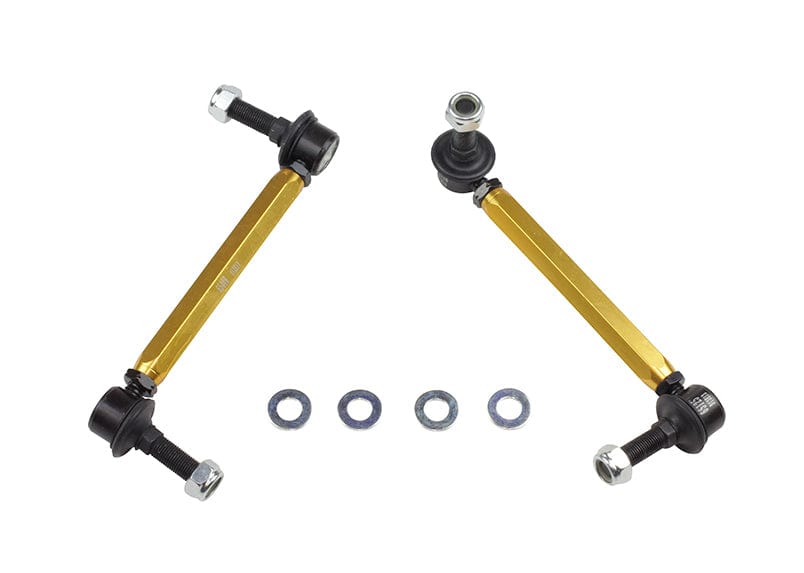

This Whiteline Front Sway Bar Link fits the 1996-2004 Nissan Pathfinder LE, SE (R50). Placement: front. Application note: Adjustable Extra Heavy Duty. Whiteline part number: KLC180-195. Included: 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the Pathfinder: 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Front Sway Bar Link Bushing (28.5mm OD).

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Install guide: Instructions for fitting are packed in the box.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Hardware: Hardware supplied: locking nuts and washers.
Specifications
Part Number KLC180-195
Part Name Sway Bar Link
Vehicle 1996-2004 Nissan Pathfinder LE, SE
Drivetrain RWD/4WD
Chassis Code R50
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 190-215 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1996NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1996NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1997NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1997NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1998NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1998NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1999NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
1999NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2000NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2000NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2001NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2001NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2002NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2002NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2003NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2003NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2004NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
2004NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm.
