Product Details

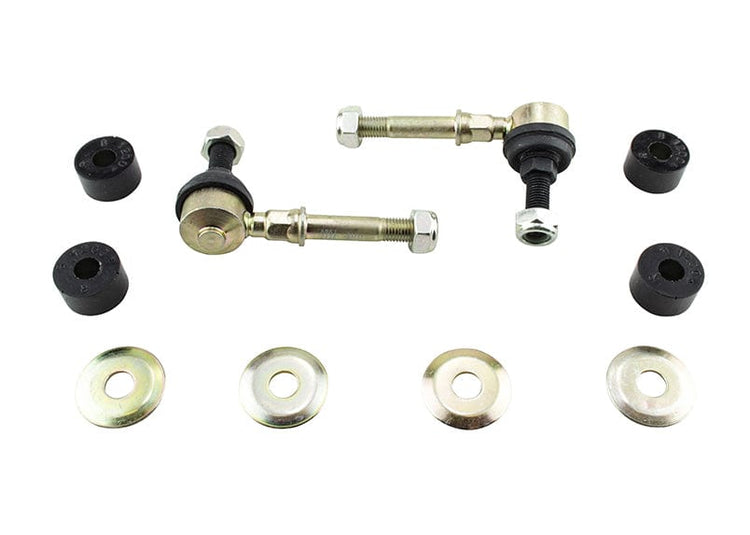

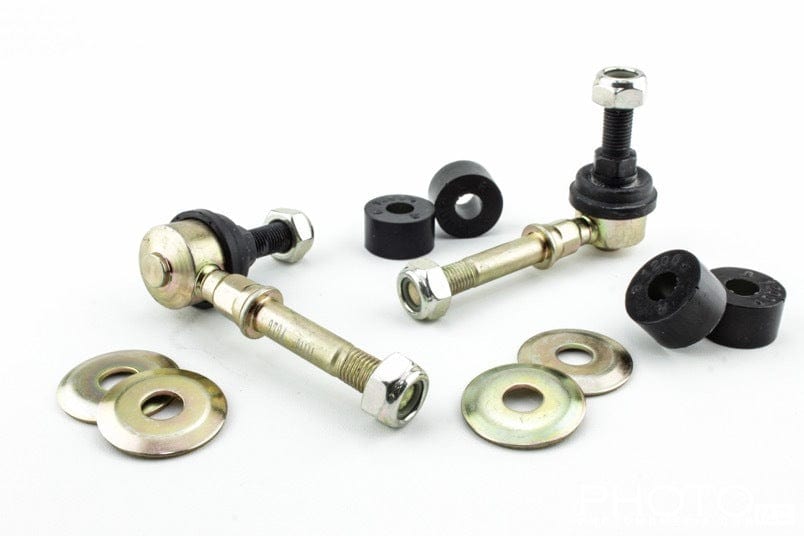

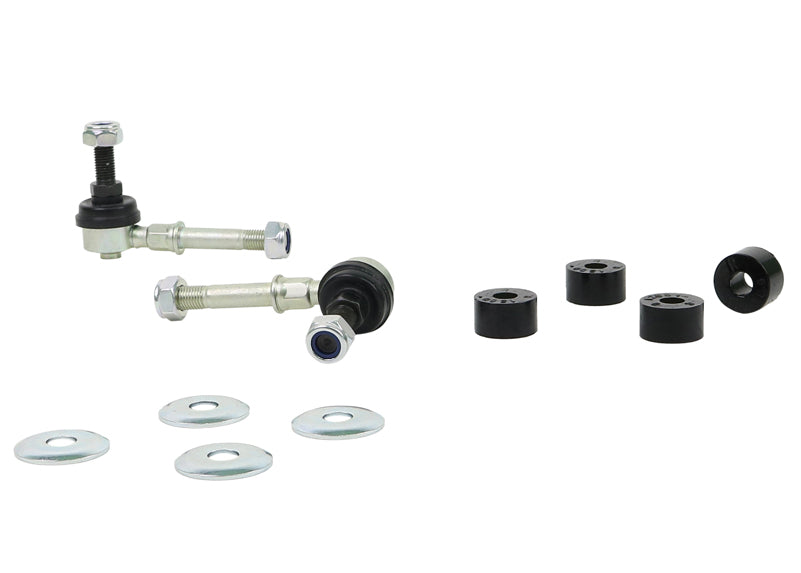

This Whiteline Front Sway Bar Link fits the 1989-1994 Nissan Maxima GXE, SE (J30). Order it as part number W23188. This part is for the front of the vehicle. The kit contains 2 links, 4 bushings, and 4 washers.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. We also list 12mm Adjustable Front Camber Bolts, Front Sway Bar Washer Kit, and Front Sway Bar Link Bushing (28.5mm OD) for the Maxima.

Features

  • Bushing compound: Bushings made of a low-compliance elastomer cut flex and movement in the suspension.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
Part Number W23188
Part Name Sway Bar Link
Vehicle 1989-1994 Nissan Maxima GXE, SE
Chassis Code J30
Bolt Thread Diameter 10 mm
Bushing Material Polyurethane
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Bushings, 4 Washers
Length 50 mm
Vehicle Placement Front
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989NissanMaximaFWD
1990NissanMaximaFWD
1991NissanMaximaFWD
1992NissanMaximaFWD
1993NissanMaximaFWD
1994NissanMaximaFWD
