Product Details

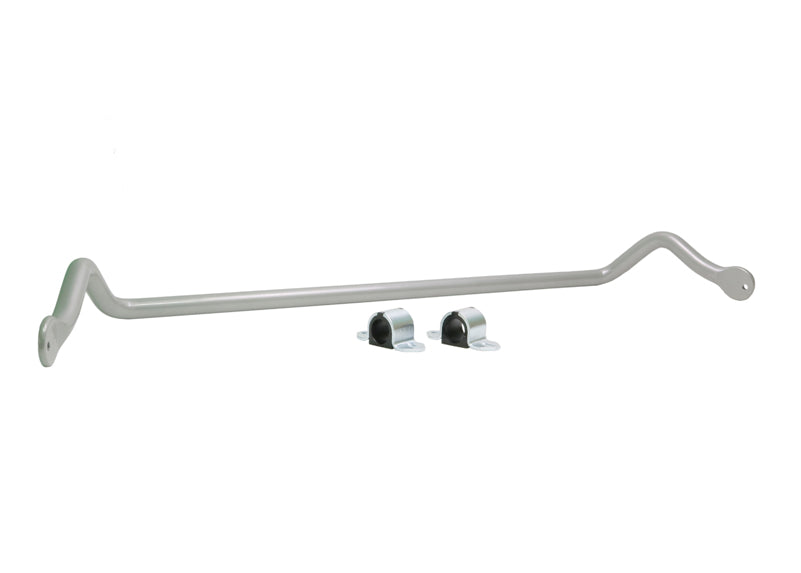

This Whiteline 30mm Front Sway Bar fits the 2008-2009 Honda S2000 CR (AP2). Placement: front. The kit contains 1 sway bar, 2 bushings, and 2 saddles. Part number BHF48. Application note: Non Adjustable.
A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. In general, a stiffer front bar reduces roll and helps the nose stay planted, with a tendency toward understeer if it is overdone. It is a fixed design with a single stiffness setting, which keeps it simple.
Whiteline rates the install as moderate and lists about 2 hours. A wheel alignment is not required. To go with it on the S2000, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Upper Control Arm Bushing Kit.
Features
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bushing compound: Bushings made of a low-compliance elastomer cut flex and movement in the suspension.
- Hardware: Supplied with mounting brackets.
Specifications
| Part Number | BHF48 |
| Part Name | Sway Bar |
| Vehicle | 2008-2009 Honda S2000 CR |
| Chassis Code | AP2 |
| Adjustable | No |
| Bar Color | Silver |
| Bar Diameter | 30 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 1 Sway Bar, 2 Bushings, 2 Saddles |
| Material | Solid Spring Steel |
| Mounting Brackets Included | Yes |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Non Adjustable |
