Product Details

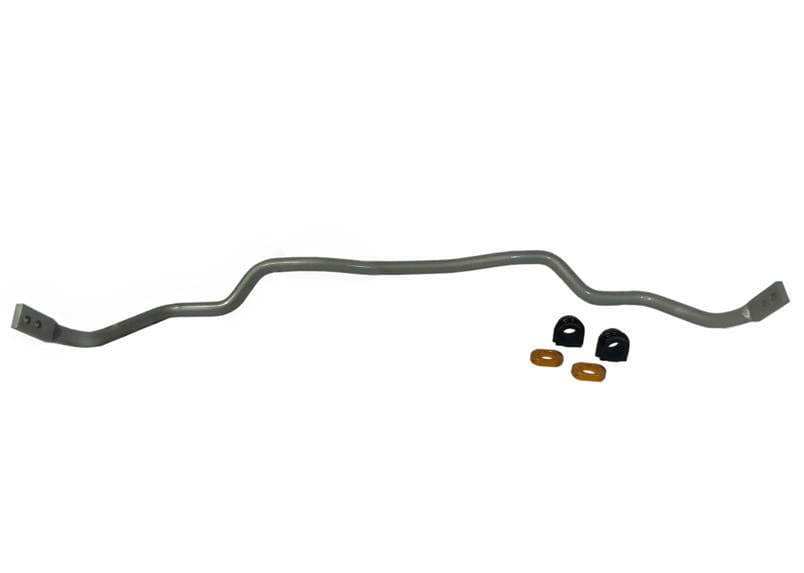

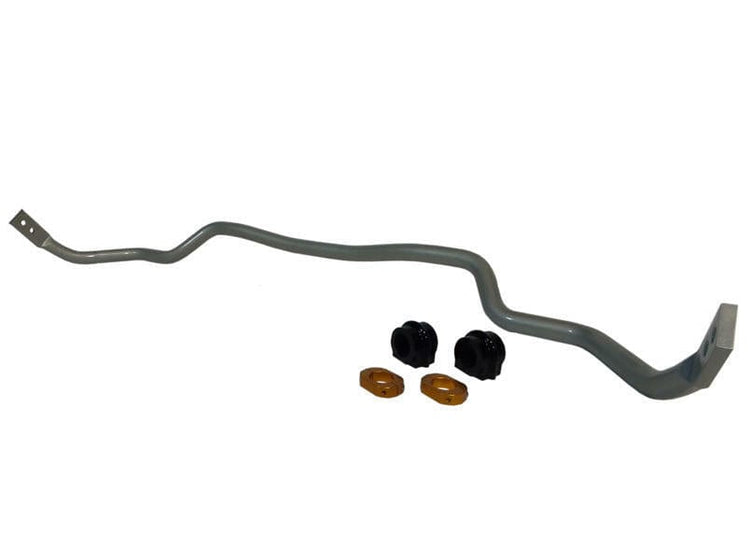

Whiteline Heavy Duty Blade Adjustable 24mm Front Sway Bar is made for the 2002-2007 Mercedes-Benz C230 Kompressor C-Class. It goes on the front of the vehicle. It is listed for the W203 chassis. You receive 1 sway bar, 2 bushings, and 2 lateral locks. Whiteline part number: BMF97Z. Trim named on the listing: Kompressor C-Class.
The front bar connects the two front wheels so that load carried by one side is shared with the other. By stiffening that connection, the car leans less and the front tires work more evenly in a corner. Adjustable mounting points let you step the stiffness up or down without changing the bar.
Installation is rated moderate, with about 2 hours of work listed. It does not require a wheel alignment. Working on the same car? We also list Front Sway Bar Link Kit and Heavy Duty 22mm Rear Sway Bar for the C230.
Features
- Roll control: Built to reduce body roll and sway in corners.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Finish: The metal parts are powder coated for durability.
- Bar mounts: The mounts have an internal bore pattern and lips that retain grease.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Install guide: Step-by-step installation instructions come with it.
Specifications
| Part Number | BMF97Z |
| Part Name | Sway Bar |
| Vehicle | 2002-2007 Mercedes-Benz C230 Kompressor C-Class |
| Chassis Code | W203 |
| Adjustable | Yes |
| Bar Color | Silver |
| Bar Diameter | 24 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 1 Sway Bar, 2 Bushings, 2 Lateral Locks |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
