Product Details

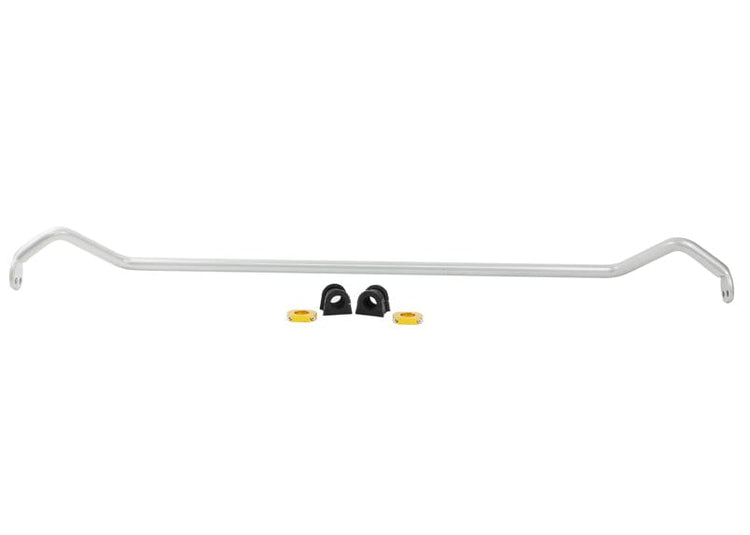

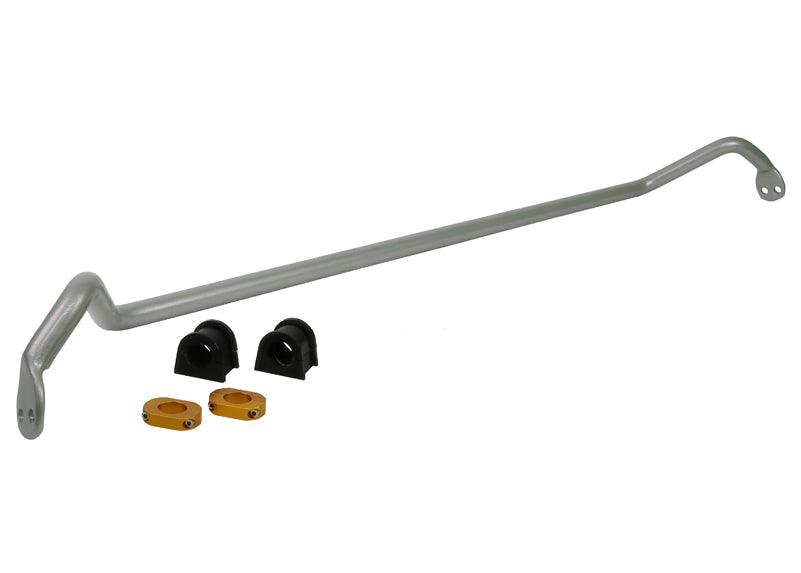

For the 2010 Subaru WRX STI Special Edition (GR/GV), Whiteline makes the Heavy Duty Blade Adjustable 22mm Front Sway Bar. Part number BSF39Z. The listing names the Special Edition trim. Application note: 2 point adjustable. It goes on the front of the vehicle. You receive 1 sway bar, 2 bushings, and 2 lateral locks.
The front bar connects the two front wheels so that load carried by one side is shared with the other. By stiffening that connection, the car leans less and the front tires work more evenly in a corner. Adjustable mounting points let you step the stiffness up or down without changing the bar.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the WRX STI: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Install guide: Instructions for fitting are packed in the box.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Bar mounts: The mounts have an internal bore pattern and lips that retain grease.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Roll control: Designed to cut body roll and sway through corners.
- Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
Specifications
| Part Number | BSF39Z |
| Part Name | Sway Bar |
| Vehicle | 2010 Subaru WRX STI Special Edition |
| Drivetrain | AWD |
| Chassis Code | GR/GV |
| Adjustable | Yes |
| Bar Color | Silver |
| Bar Diameter | 22 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Sway Bar, 2 Bushings, 2 Lateral Locks |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | 22mm - 2 point adjustable |
