Product Details

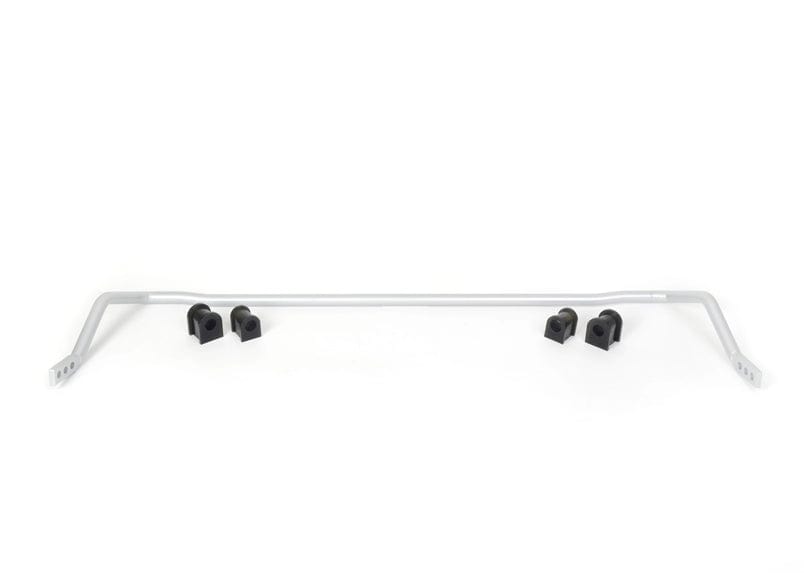

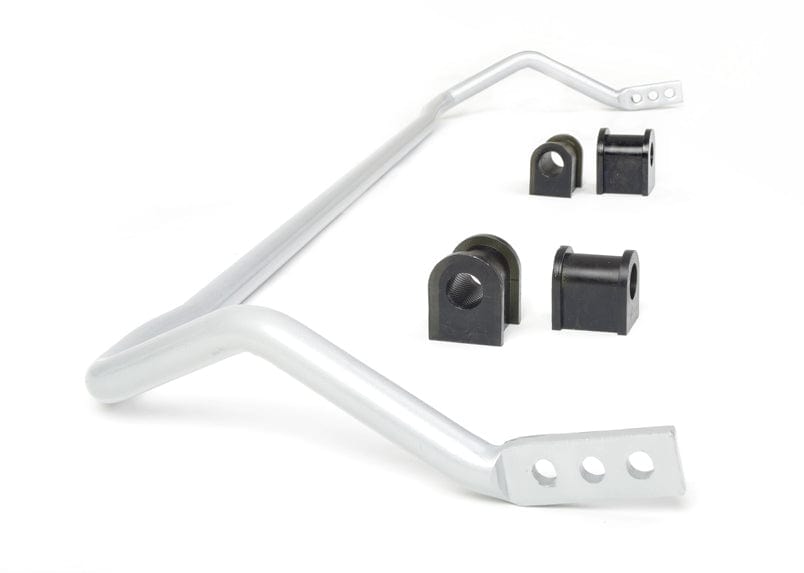

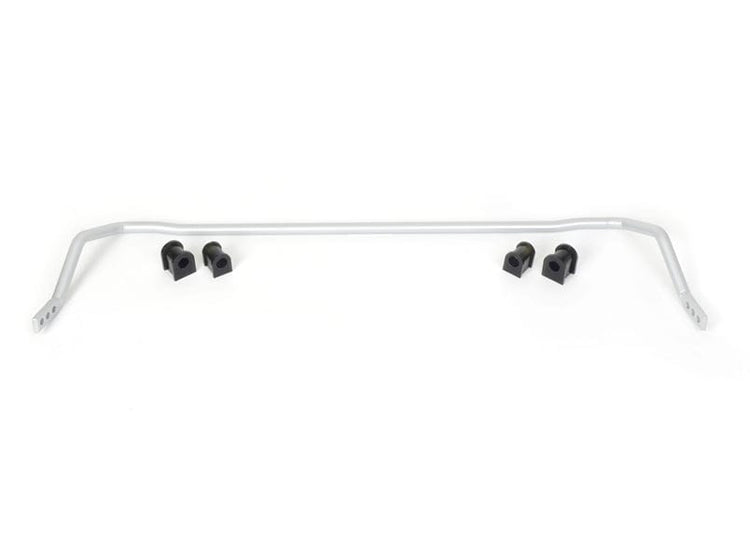

This Whiteline 3-Point Adjustable 20mm Front Sway Bar fits the 1991-1995 Toyota MR2 Base, Turbo (SW20). Placement: front. Whiteline's note for this fit: Suits SW20 models: 3 Point Adjustable. Chassis code: SW20. The kit contains 1 sway bar and 4 bushings. Whiteline part number: BTF24Z.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. In general, a stiffer front bar reduces roll and helps the nose stay planted, with a tendency toward understeer if it is overdone. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. We also list 12mm Adjustable Front Camber Bolts, Rear Sway Bar Link Bushing (28.5mm OD), and 20mm Rear Sway Bar Mount Bushing Kit for the Toyota MR2.

Features

  • Bar mounts: Internally knurled mount bushings with lips that hold grease keep the bar lubricated.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Adjustable stiffness: The bar has more than one mounting position so stiffness can be tuned.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Roll control: Built to reduce body roll and sway in corners.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number BTF24Z
Part Name Sway Bar
Vehicle 1991-1995 Toyota MR2 Base, Turbo
Chassis Code SW20
Adjustable Yes
Bar Color Silver
Bar Diameter 20 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 1 Sway Bar, 4 Bushings
Material Solid Spring Steel
Mounting Brackets Included No
Mounting Hardware Included No
Suspension Grade Type Performance
Sway Bar Links Included No
Vehicle Placement Front
Wheel Alignment Required No
Notes Suits SW20 models - 3 Point Adjustable

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991ToyotaMR2RWDSuits SW20 models - 3 Point Adjustable
1992ToyotaMR2RWDSuits SW20 models - 3 Point Adjustable
1993ToyotaMR2RWDSuits SW20 models - 3 Point Adjustable
1994ToyotaMR2RWDSuits SW20 models - 3 Point Adjustable
1995ToyotaMR2RWDSuits SW20 models - 3 Point Adjustable
