Product Details

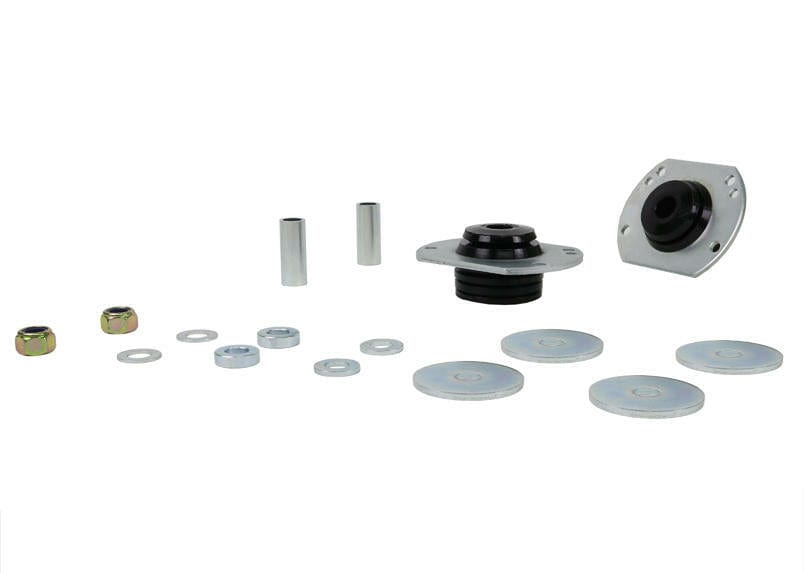

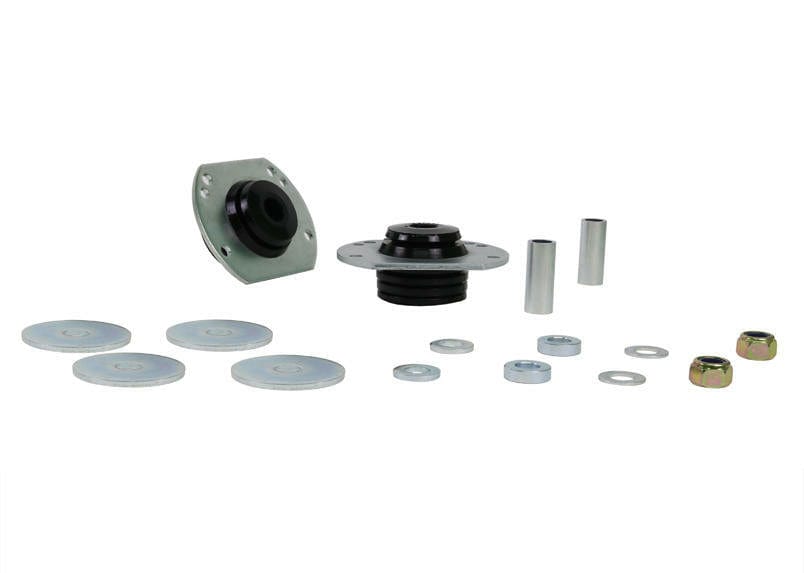

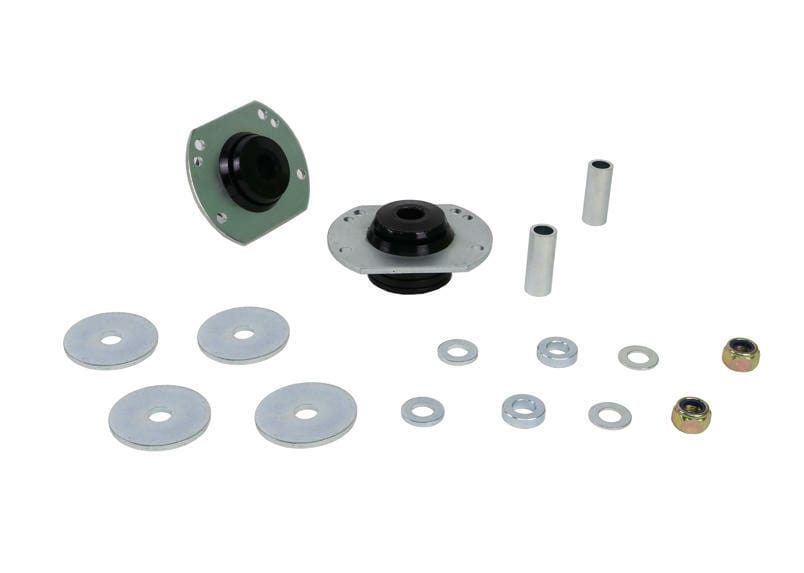

This Whiteline Front Strut Rod To Chassis Bushing (Adjustable) fits the 2004-2006 Pontiac GTO Base (Zeta). The kit contains 2 bushings, 2 tubes, 10 washers, 2 nuts, an install guide, and grease. Whiteline's note for this fit: Shim adjustable Caster kit: offers -0.5 degrees to .25 degrees incl can be set to standard setting. Part number W82047. Placement: front.

Strut rod bushings do their work quietly until they fail. Worn ones allow the arm to move forward and back, which changes alignment as the car brakes and rides over bumps. Fresh bushings hold it in place. This version also changes caster, according to its name or note, so it does more than replace worn rubber. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Pontiac GTO: Front Strut Tower Brace Quick Release Kit, Front Sway Bar Link, and Rear Subframe Mount Bushing.

Features

  • Bonded design: A bonded design adds strength for high load applications.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Install guide: Instructions for fitting are packed in the box.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
Part Number W82047
Part Name Strut Rod Bushing
Vehicle 2004-2006 Pontiac GTO Base
Chassis Code Zeta
Bushing Color Black
Bushing Inside Diameter 22.2 mm
Bushing Length 50 mm
Bushing Material Polyurethane
Bushing Outside Diameter 70.1 mm
Bushing Quantity 2
Durometer 85
Grade Type Regular
Hardware Included Yes
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Bushings, 2 Tubes, 10 Washers, 2 Nuts, Install Guide, Grease
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Shim adjustable Caster kit - offers -0.5deg to .25deg incl can be set to standard setting

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004PontiacGTORWDShim adjustable Caster kit - offers -0.5deg to .25deg incl can be set to standard setting
2005PontiacGTORWDShim adjustable Caster kit - offers -0.5deg to .25deg incl can be set to standard setting
2006PontiacGTORWDShim adjustable Caster kit - offers -0.5deg to .25deg incl can be set to standard setting
