Product Details

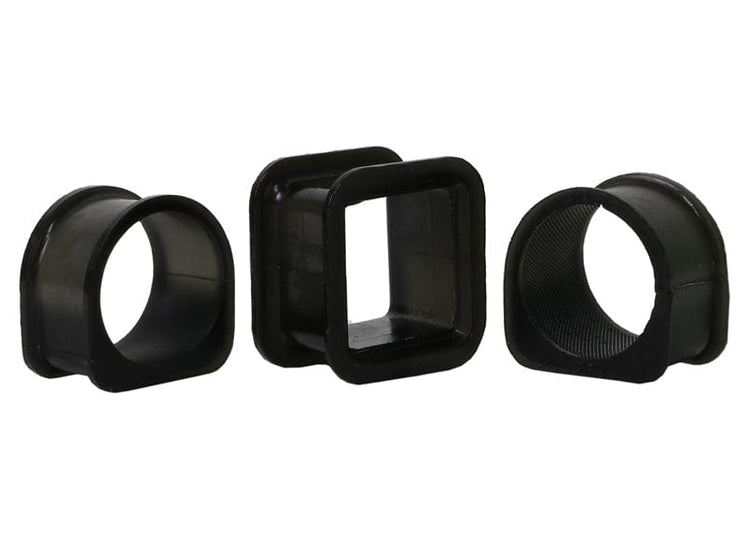

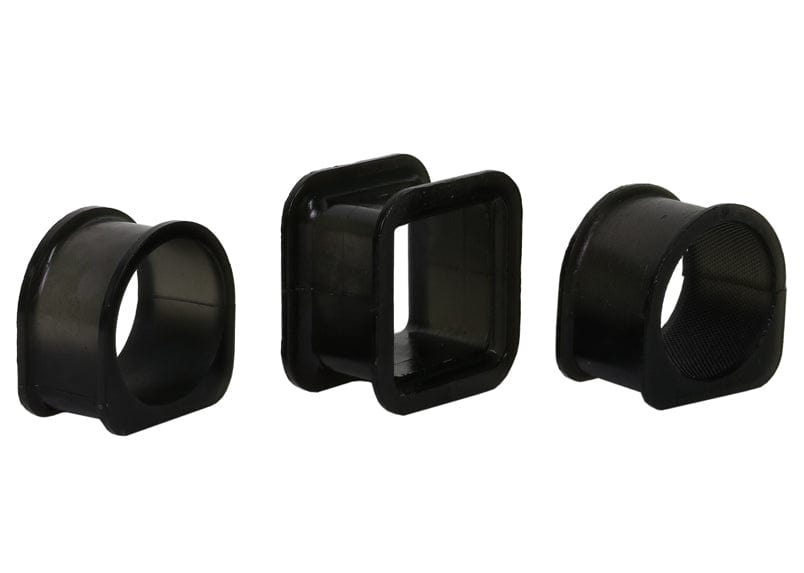

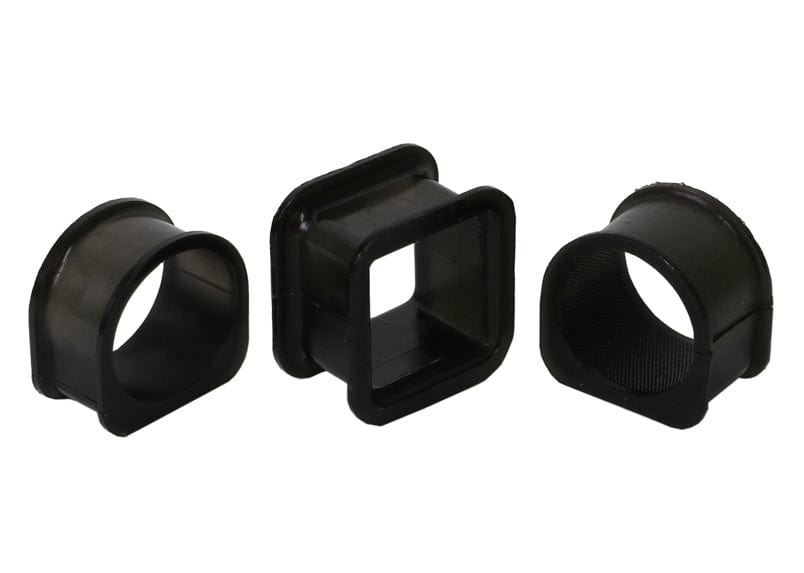

This Whiteline Front Steering Rack And Pinion Mount Bushing fits the 1994-2004 Subaru Legacy GT (BD/BG/BE/BH/BL/BP). Placement: front. Order it as part number KSR202. The kit contains 3 bushings and an install guide.

Steering precision starts at the rack mount. When its bushings are soft, worn, or contaminated, the rack can move before the front wheels respond, which blunts feedback and makes the car feel less direct. Replacing them with firmer Whiteline bushings keeps the rack in position.

Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Legacy, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Install guide: An install guide comes in the box.
Specifications
Part Number KSR202
Part Name Steering Rack Mount Bushing Kit
Vehicle 1994-2004 Subaru Legacy GT
Drivetrain FWD/AWD
Chassis Code BD/BG/BE/BH/BL/BP
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Grade Type Improved Design
Grade Type OEM Performance
Grade Type Premium
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 3 Bushings, Install Guide
Material Polyurethane
Universal or Specific Fit Specific Fit
Wheel Alignment Required Yes
Notes Includes both 25mm & 30mm wide passenger side bracket bushings

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1994SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1994SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1995SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1995SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1996SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1996SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1997SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1997SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1998SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1998SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1999SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
1999SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2000SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2000SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2001SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2001SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2002SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2002SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2003SubaruLegacyFWDIncludes both 25mm & 30mm wide passenger side bracket bushings
2003SubaruLegacyAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
