Product Details

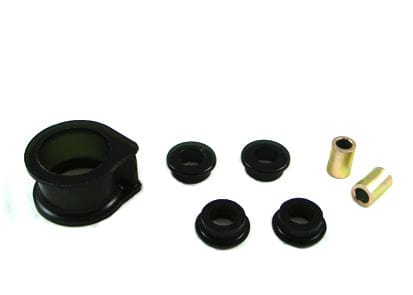

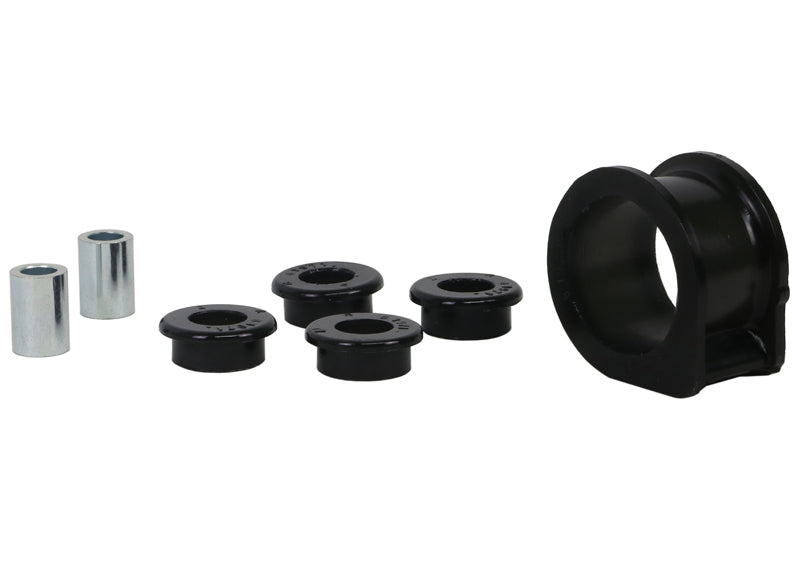

This Whiteline Front Steering Rack And Pinion Mount Bushing (50mm Rack Housing) fits the 1992-2000 Lexus SC300 (Z30). Order it as part number W11970. Position: front. In the box: 5 bushings, 2 tubes, and grease.

Steering precision starts at the rack mount. When its bushings are soft, worn, or contaminated, the rack can move before the front wheels respond, which blunts feedback and makes the car feel less direct. Replacing them with firmer Whiteline bushings keeps the rack in position.

Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the SC300: Front Control Arm Lower Inner Rear Bushing, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
Part Number W11970
Part Name Steering Rack Mount Bushing Kit
Vehicle 1992-2000 Lexus SC300
Drivetrain RWD
Chassis Code Z30
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 5 Bushings, 2 Tubes, Grease
Material Polyurethane
Universal or Specific Fit Specific Fit
Wheel Alignment Required Yes
Notes Suits models with 50mm OD rack housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1992LexusSC300RWDSuits models with 50mm OD rack housing
1993LexusSC300RWDSuits models with 50mm OD rack housing
1994LexusSC300RWDSuits models with 50mm OD rack housing
1995LexusSC300RWDSuits models with 50mm OD rack housing
1996LexusSC300RWDSuits models with 50mm OD rack housing
1997LexusSC300RWDSuits models with 50mm OD rack housing
1998LexusSC300RWDSuits models with 50mm OD rack housing
1999LexusSC300RWDSuits models with 50mm OD rack housing
2000LexusSC300RWDSuits models with 50mm OD rack housing
