Product Details

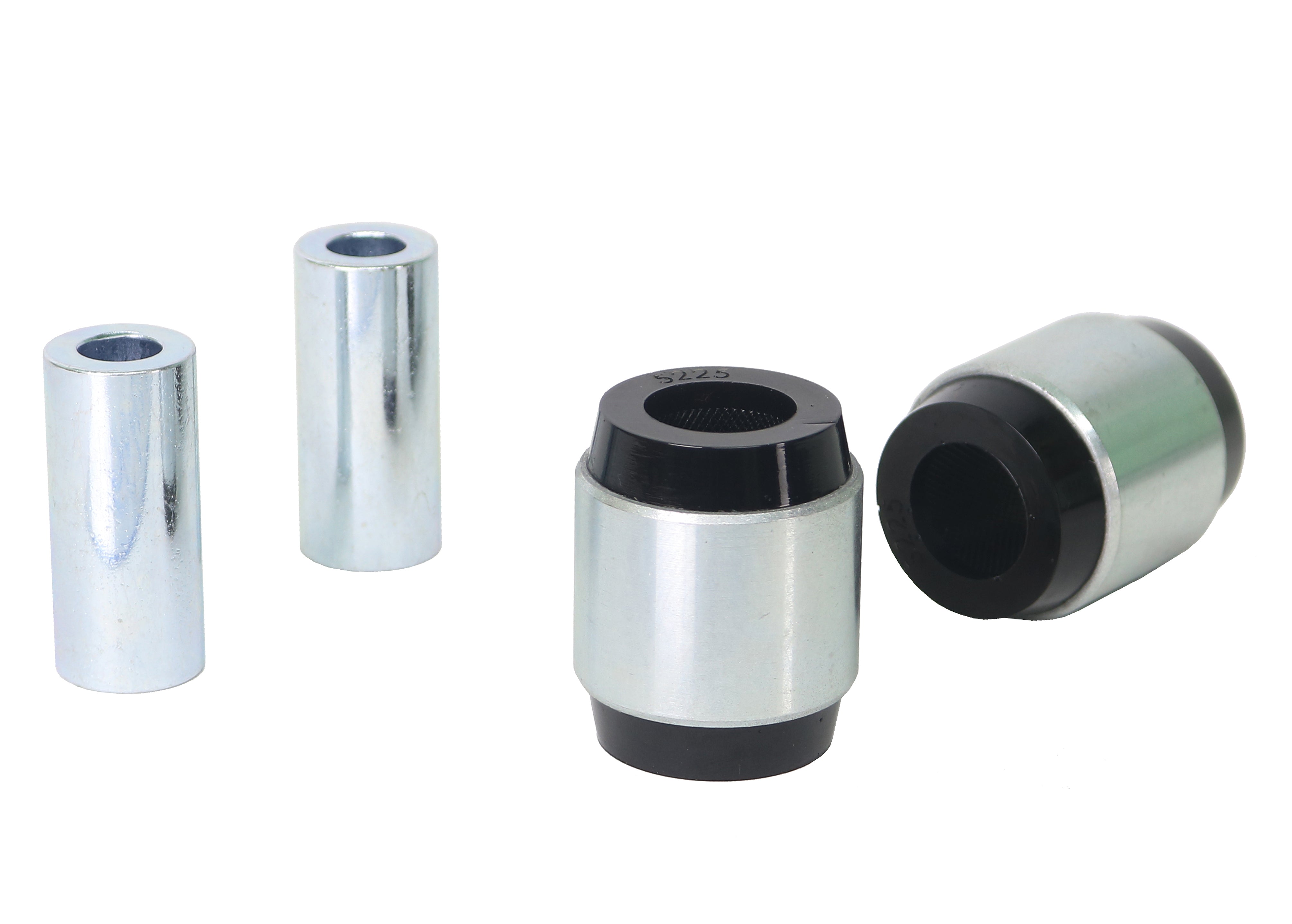

This Whiteline Front Shock Absorber to Control Arm Bushing Kit fits the 2016-2026 Mazda MX-5 Miata. Position: front. You receive 2 shell bushings and 2 tubes. Part number W56415.
Shock bushings take the shock's loads and let it pivot slightly as the suspension moves. If they are worn, you may hear a clunk and feel less control over bumps. Replacing them is an easy way to quiet and tighten that corner. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the MX-5 Miata, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Install guide: Written install instructions are included with the part.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
| Part Number | W56415 |
| Part Name | Shock Absorber Bushings |
| Vehicle | 2016-2026 Mazda MX-5 Miata |
| Drivetrain | RWD |
| Chassis Code | ND |
| Bushing 1 Inner Diameter | 12.5 mm |
| Bushing 1 Outer Diameter | 40.9 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
