Product Details

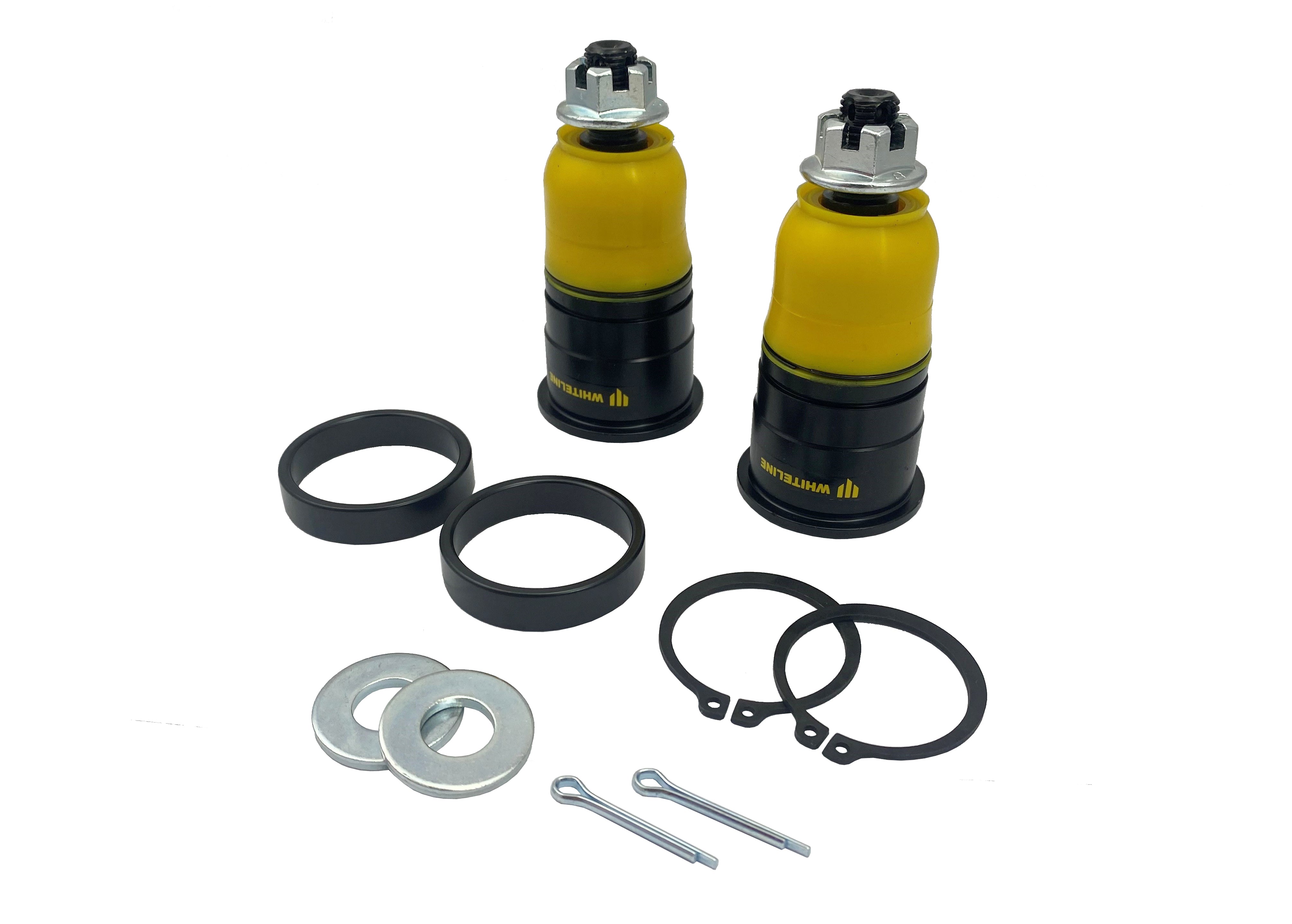

This Whiteline Front Roll Center Correction Kit fits the 2002-2006 Acura RSX (DC5). Placement: front. Part number KCA521. Chassis code: DC5. In the box: 2 ball joints.
Lowering a car changes the angle of the front suspension arms and drops the roll center, the point around which the body rolls, closer to the ground. That adds leverage to body roll and can load the outside tire unevenly in a corner. A roll center correction kit uses specially designed ball joints to restore a better geometry on a lowered car.
Expect a difficult job of about 2.5 hours. An alignment is required after installation. Application note: Suits vehicles with upgraded JDM DC5 Type R alloy front arms only. Recommended use with KCA517 for bump steer improvement. Working on the same car? We also list Adjustable Sway Bar Vehicle Link Kit, 16mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the Acura RSX.
Features
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Install guide: An install guide comes in the box.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
| Part Number | KCA521 |
| Part Name | Roll Center Corrections |
| Vehicle | 2002-2006 Acura RSX |
| Chassis Code | DC5 |
| Adjustable | No |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Ball Joints |
| Mount Type | Press In |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Suits vehicles with upgraded JDM DC5 Type R alloy front arms only. Recommended use with KCA517 for bump steer improvement. |
