Product Details

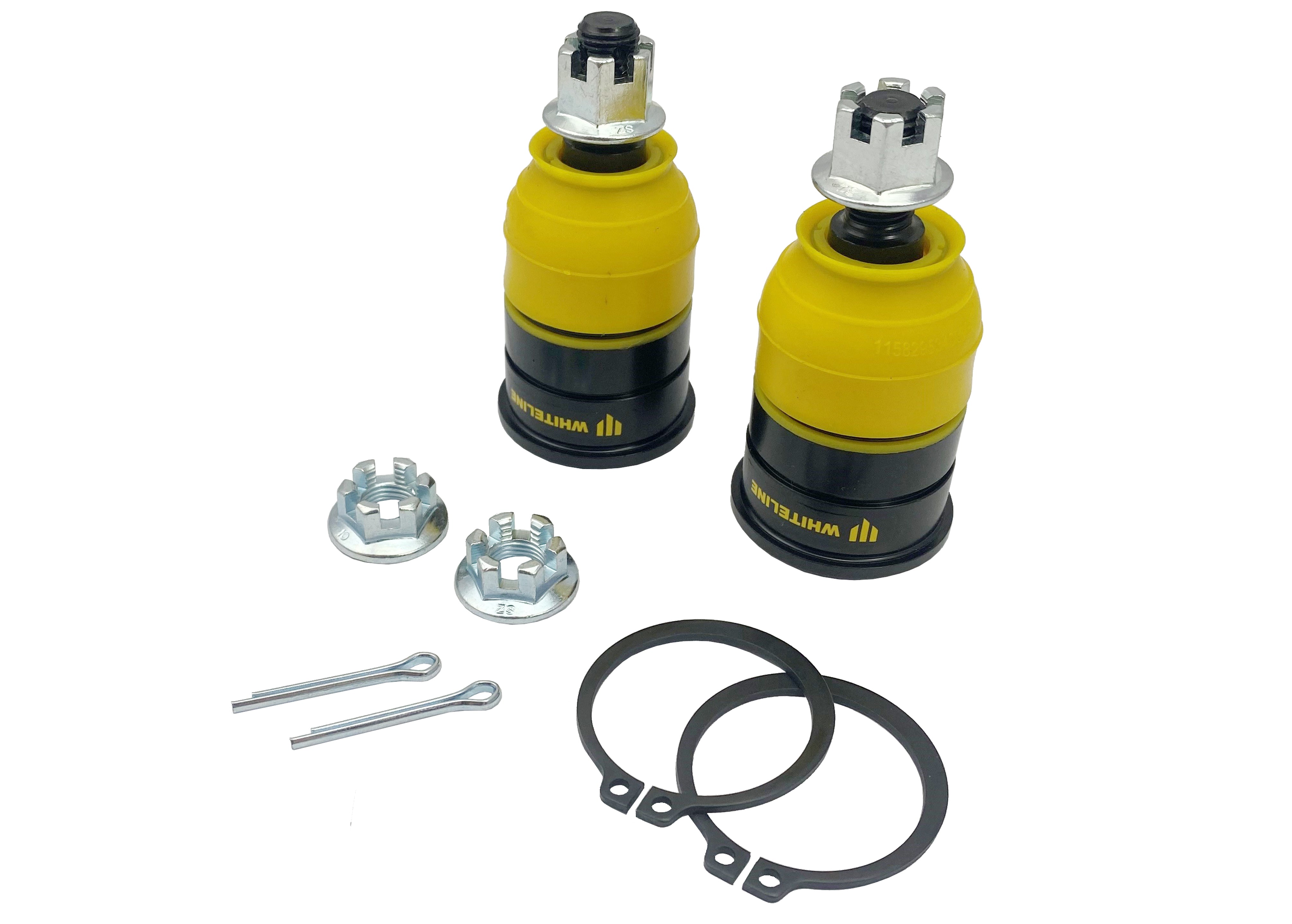

This Whiteline Front Roll Center Correction Kit fits the 2002-2005 Honda Civic (ES). The chassis code on the listing is ES. You receive 2 ball joints. Placement: front. Part number KCA520. Whiteline's note for this fit: Recommended use with KCA517 for bump steer improvement.
Correcting the roll center is one of the more effective things you can do for a lowered car's front end. These ball joints change the geometry so the suspension works in a range closer to what its designers intended, which improves grip and helps tire life.
Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Civic, see 14mm Adjustable Front Camber Bolts, 2-Point Adjustable 22mm Rear Sway Bar, and Front Control Arm Lower Inner Rear Bushing.
Features
- Easy to fit: Installation does not call for special skills or tools.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Install guide: Whiteline packs an install guide with it.
- Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
| Part Number | KCA520 |
| Part Name | Roll Center Corrections |
| Vehicle | 2002-2005 Honda Civic |
| Chassis Code | ES |
| Adjustable | No |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Ball Joints |
| Mount Type | Press In |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Suits Models with 12mm diameter ball joint stud. Recommended use with KCA517 for bump steer improvement. |
