Whiteline Front Roll Center Correction Kit for 2002-2004 Acura RSX (DC5) KCA520

Whiteline

|

SKU: KCA520

Whiteline Front Roll Center Correction Kit for 2002-2004 Acura RSX (DC5)

$211.39

MSRP $234.88 You save $23.49

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

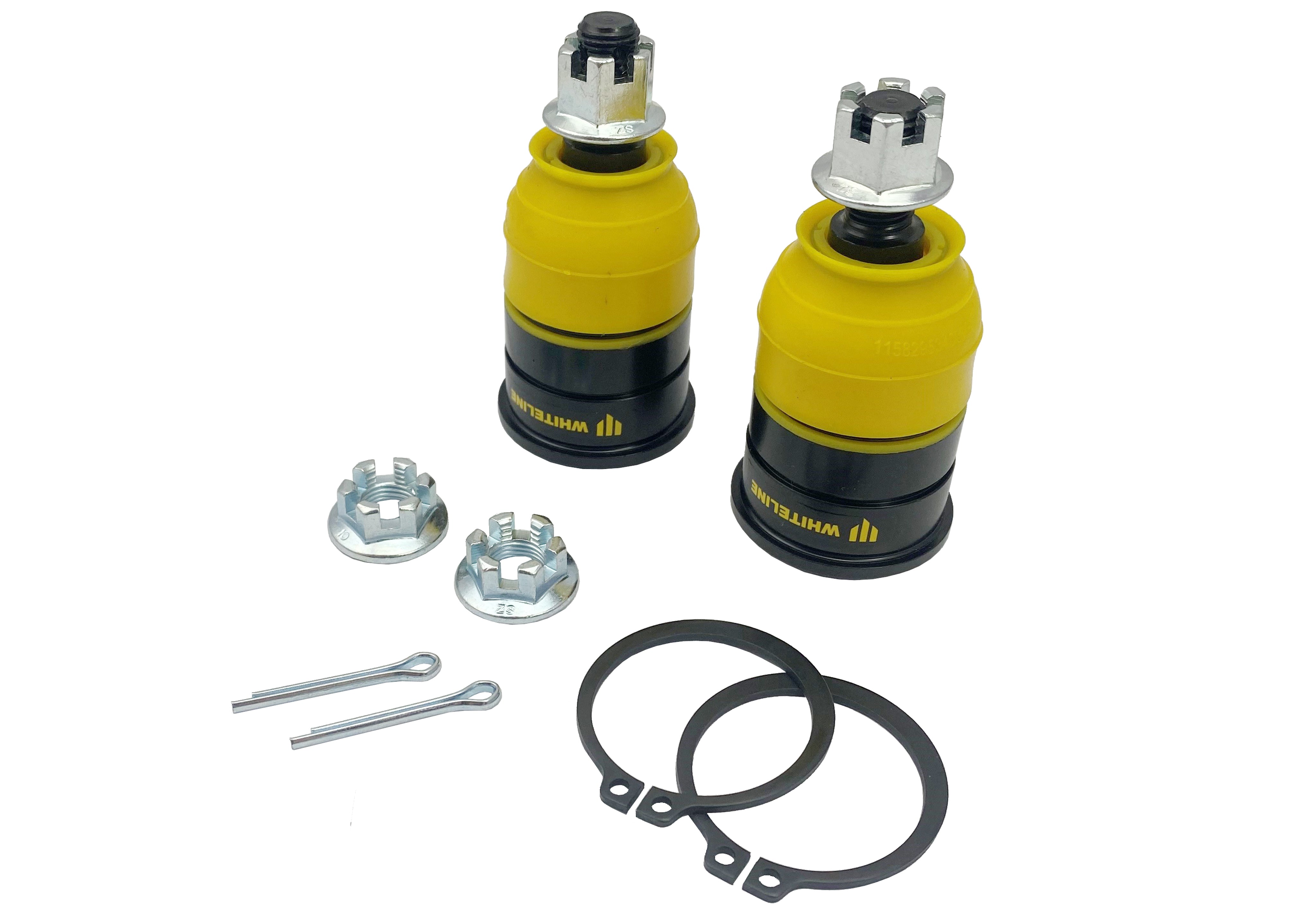

This Whiteline Front Roll Center Correction Kit fits the 2002-2004 Acura RSX (DC5). You receive 2 ball joints. The part number is KCA520. Whiteline's note for this fit: Recommended use with KCA517 for bump steer improvement. It goes on the front of the vehicle. Chassis code: DC5.

Lowering a car changes the angle of the front suspension arms and drops the roll center, the point around which the body rolls, closer to the ground. That adds leverage to body roll and can load the outside tire unevenly in a corner. A roll center correction kit uses specially designed ball joints to restore a better geometry on a lowered car.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Acura RSX, see Adjustable Sway Bar Vehicle Link Kit, 16mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Easy to fit: Designed for an easy install with ordinary shop equipment.
  • Install guide: Step-by-step installation instructions come with it.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number KCA520
Part Name Roll Center Corrections
Vehicle 2002-2004 Acura RSX
Chassis Code DC5
Adjustable No
Cotter Pin Hole Yes
Dust Boot Included Yes
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Ball Joints
Mount Type Press In
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Suits Models with 12mm diameter ball joint stud. Recommended use with KCA517 for bump steer improvement.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002AcuraRSXFWDSuits Models with 12mm diameter ball joint stud. Recommended use with KCA517 for bump steer improvement.
2003AcuraRSXFWDSuits Models with 12mm diameter ball joint stud. Recommended use with KCA517 for bump steer improvement.
2004AcuraRSXFWDSuits Models with 12mm diameter ball joint stud. Recommended use with KCA517 for bump steer improvement.
