Product Details

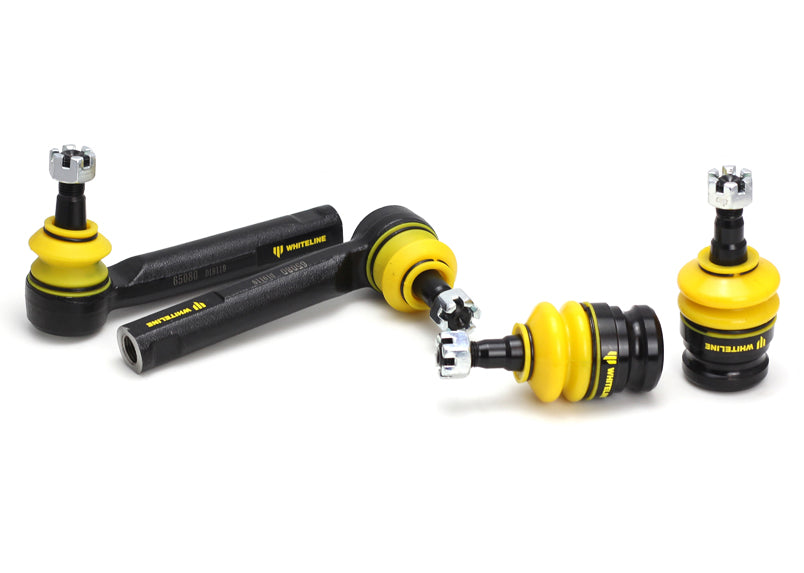

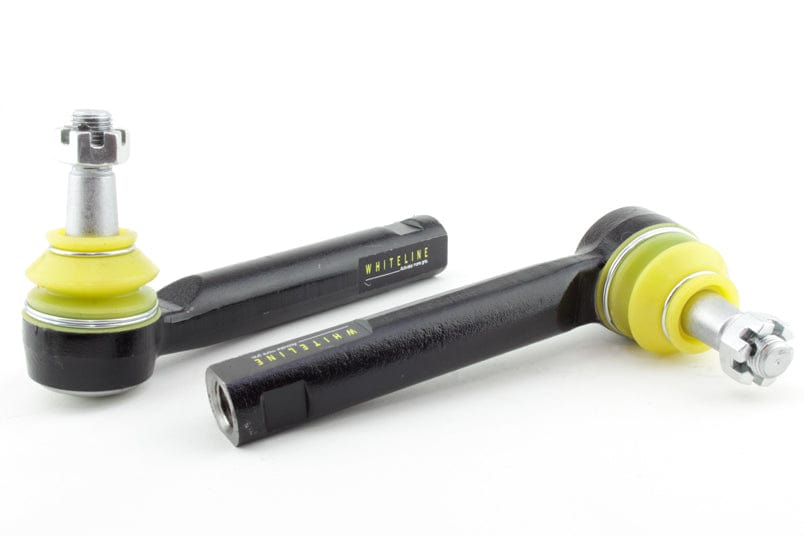

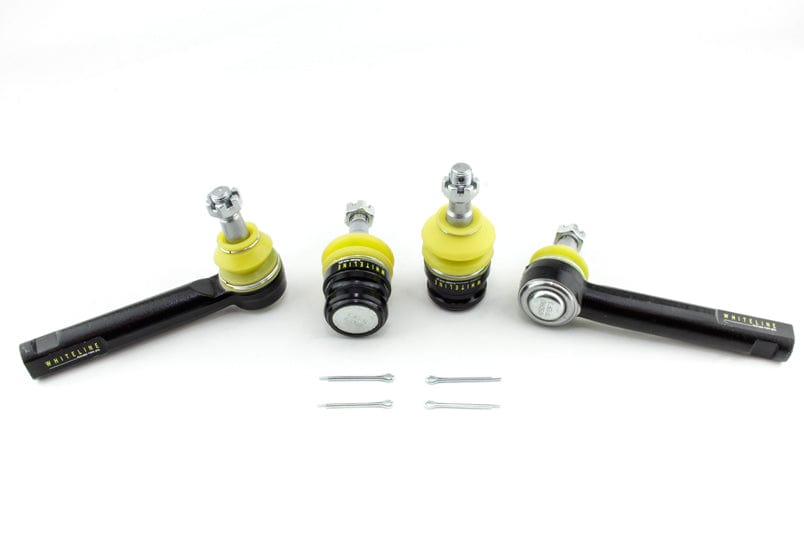

This Whiteline Front Roll Center & Bump Steer Correction Kit fits the 1995-2004 Subaru Legacy L (BD/BG/BE/BH/BL/BP). Application note: Reduces roll/bump steer: essential for lowered cars. Order it as part number KCA313. It goes on the front of the vehicle. The kit contains 2 ball joints and 2 tie rods.

A lowered car can feel twitchy over bumps and lean more than it should. Correcting the roll center and the steering geometry together brings the front suspension back toward the range it was designed to work in.

Whiteline rates the install as difficult and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Legacy, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Tire contact: Improves front tire grip by evening out load through a corner.
  • Hardware: The kit includes mounting hardware.
  • Warranty: Comes with the maker's warranty.
  • Roll center: Restores roll-center geometry for better grip.
  • Roll resistance: Adds front roll resistance and reduces suspension compression when cornering.
Specifications
Part Number KCA313
Part Name Bump Steer Correction Kit
Vehicle 1995-2004 Subaru Legacy L
Drivetrain FWD/AWD
Chassis Code BD/BG/BE/BH/BL/BP
Adjustable No
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Ball Joints, 2 Tie Rods
Mounting Hardware Included Yes
Rod Ends Included Yes
Wheel Alignment Required Yes
Notes Reduces roll/bump steer - essential for lowered cars

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1995SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
1995SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
1996SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
1996SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
1997SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
1997SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
1998SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
1998SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
1999SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
1999SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
2000SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
2000SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
2001SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
2001SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
2002SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
2002SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
2003SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
2003SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
2004SubaruLegacyFWDReduces roll/bump steer - essential for lowered cars
2004SubaruLegacyAWDReduces roll/bump steer - essential for lowered cars
