Product Details

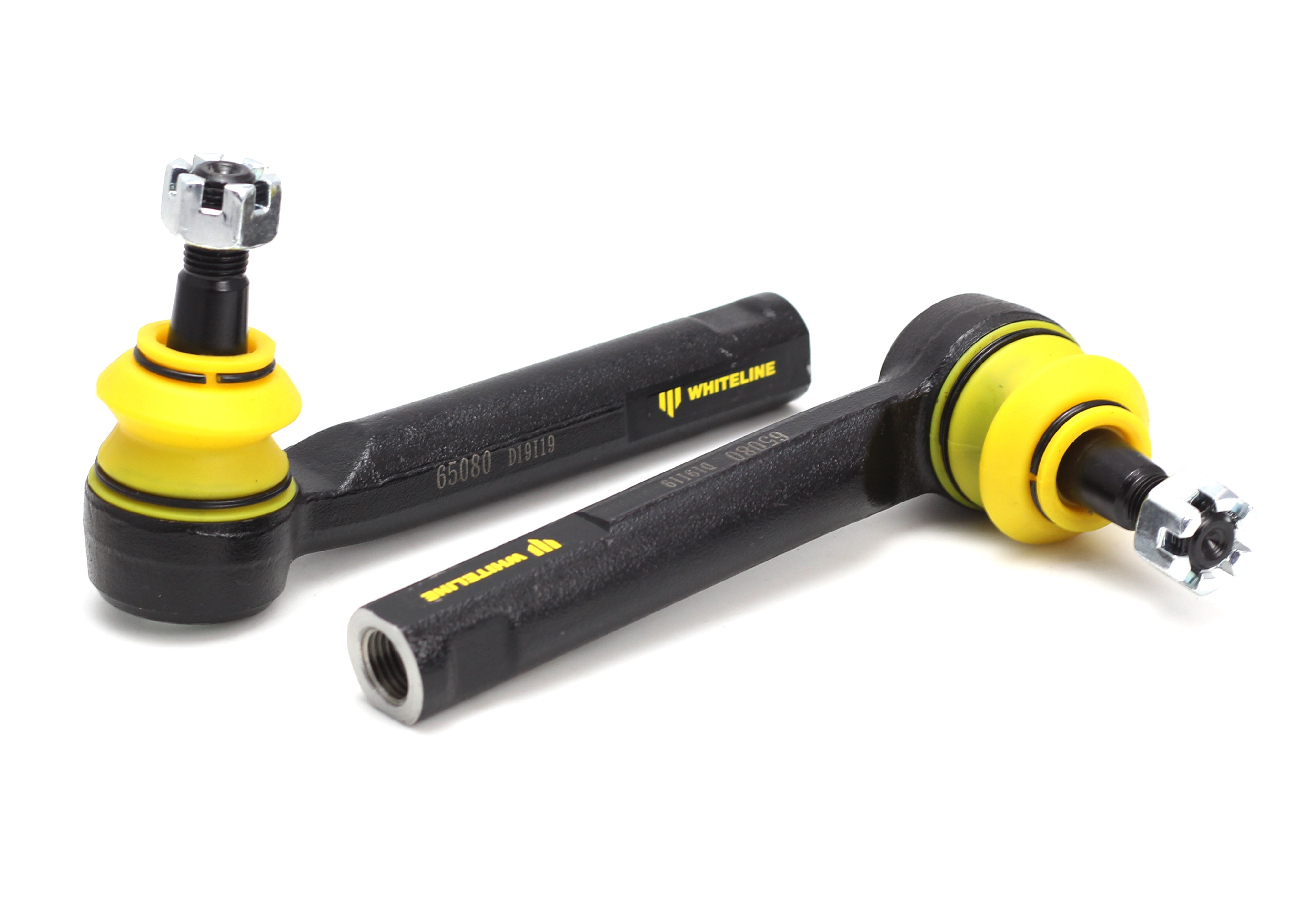

This Whiteline Front Roll Center and Bump Steer Correction Tie Rod Kit fits the 2015-2021 Subaru WRX STI (VA). Chassis code: VA. This part is for the front of the vehicle. In the box: 2 tie rod ends. The part number is KCA313-TR.
When ride height comes down, two things go out of range at the front: the roll center sits too low, and the steering linkage starts to move the wheels as the suspension moves. This kit addresses both with revised ball joints and tie rod ends.
Installation is rated difficult, with about 1.5 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Front Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the WRX STI.
Features
- Hardware: Also in the box: mounting hardware.
- Install guide: Step-by-step installation instructions come with it.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
Specifications
| Part Number | KCA313-TR |
| Part Name | Roll Center Corrections |
| Vehicle | 2015-2021 Subaru WRX STI |
| Chassis Code | VA |
| Adjustable | No |
| Adjusting Sleeve Included | No |
| Castle Nut Included | Yes |
| Color | Black |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Tie Rod Ends |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
