Product Details

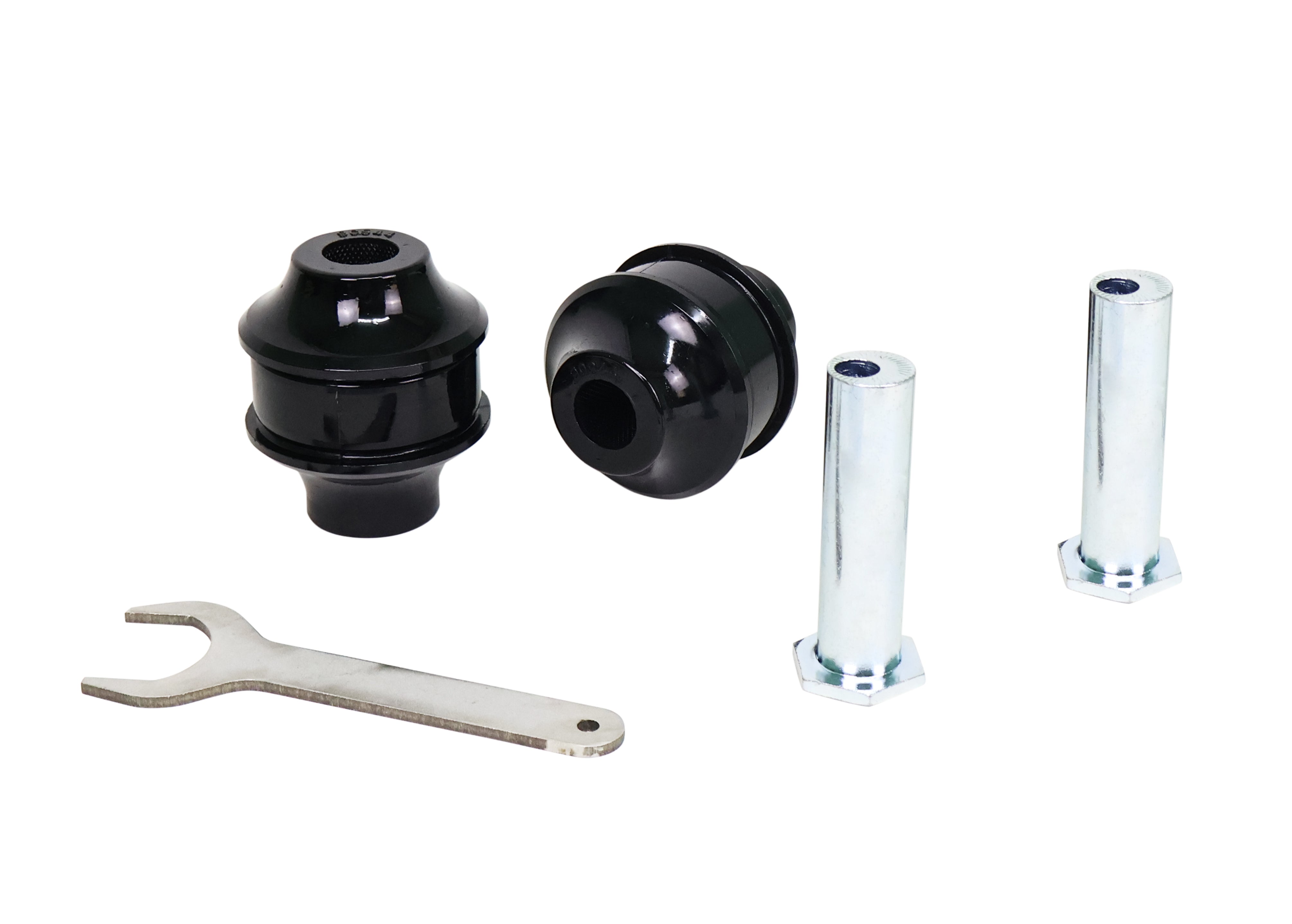

Looking for a front radius arm bushing for your 2013-2015 BMW 335i 3 Series? The Whiteline Front Lower Radius Arm Bushing is made for it. The kit contains 2 bushings, 2 tubes, adjusting tool, an install guide, and grease. Whiteline's note for this fit: Adds +/- 0.5 degrees Caster. Does not Suit xDrive Models. Part number KCA473. Placement: front. Chassis code: F30.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Expect a difficult job of about 3 hours. An alignment is required after installation. To go with it on the 335i 3 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front Sway Bar Link Assembly.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Install guide: An install guide comes in the box.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | KCA473 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2013-2015 BMW 335i 3 Series |
| Chassis Code | F30 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 80 |
| Inside Diameter | 12.5 mm |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes, Adjusting Tool, Install Guide, Grease |
| Length | 89 mm |
| Outside Diameter | 70.7 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5 Degree Caster; Does not Suit xDrive Models |
