Product Details

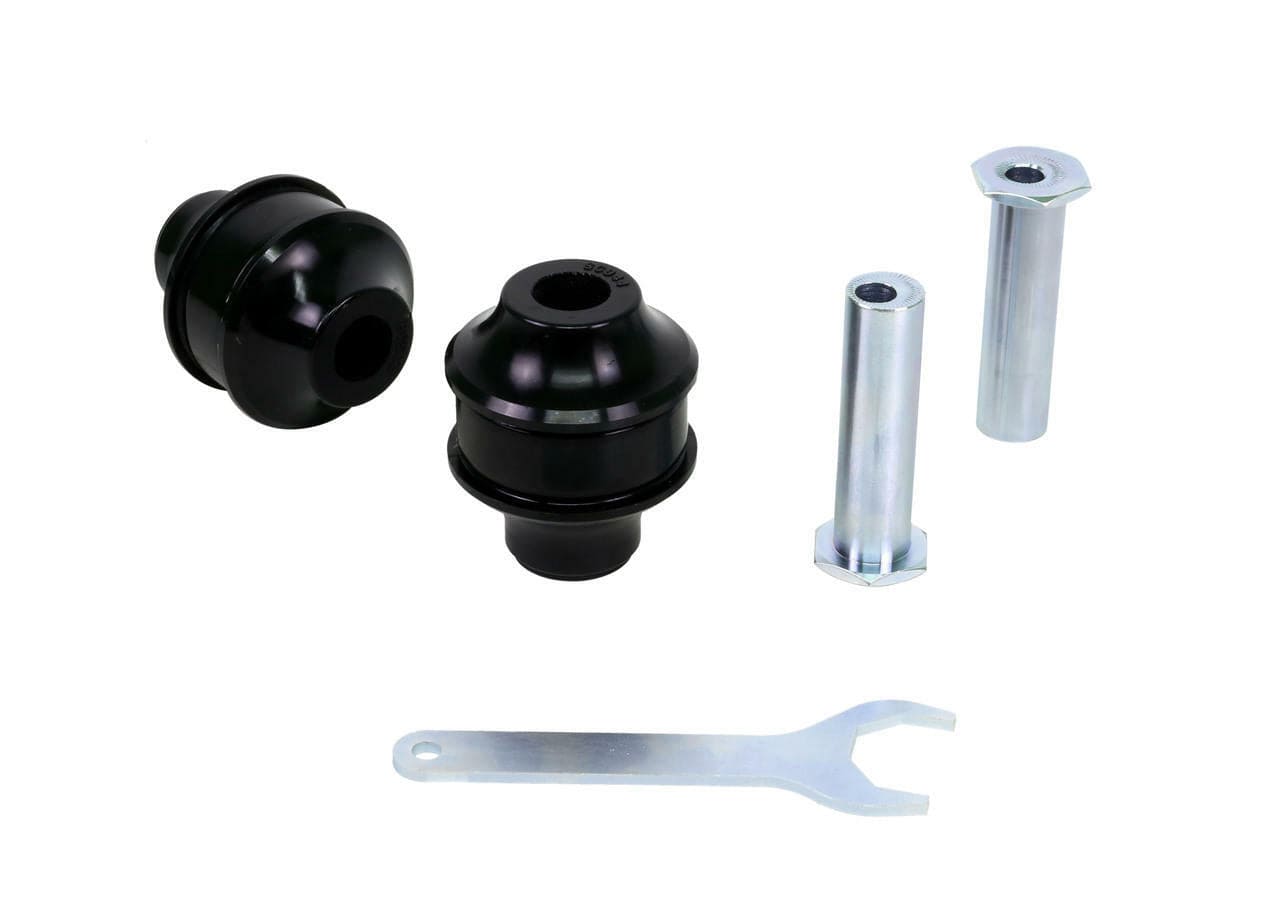

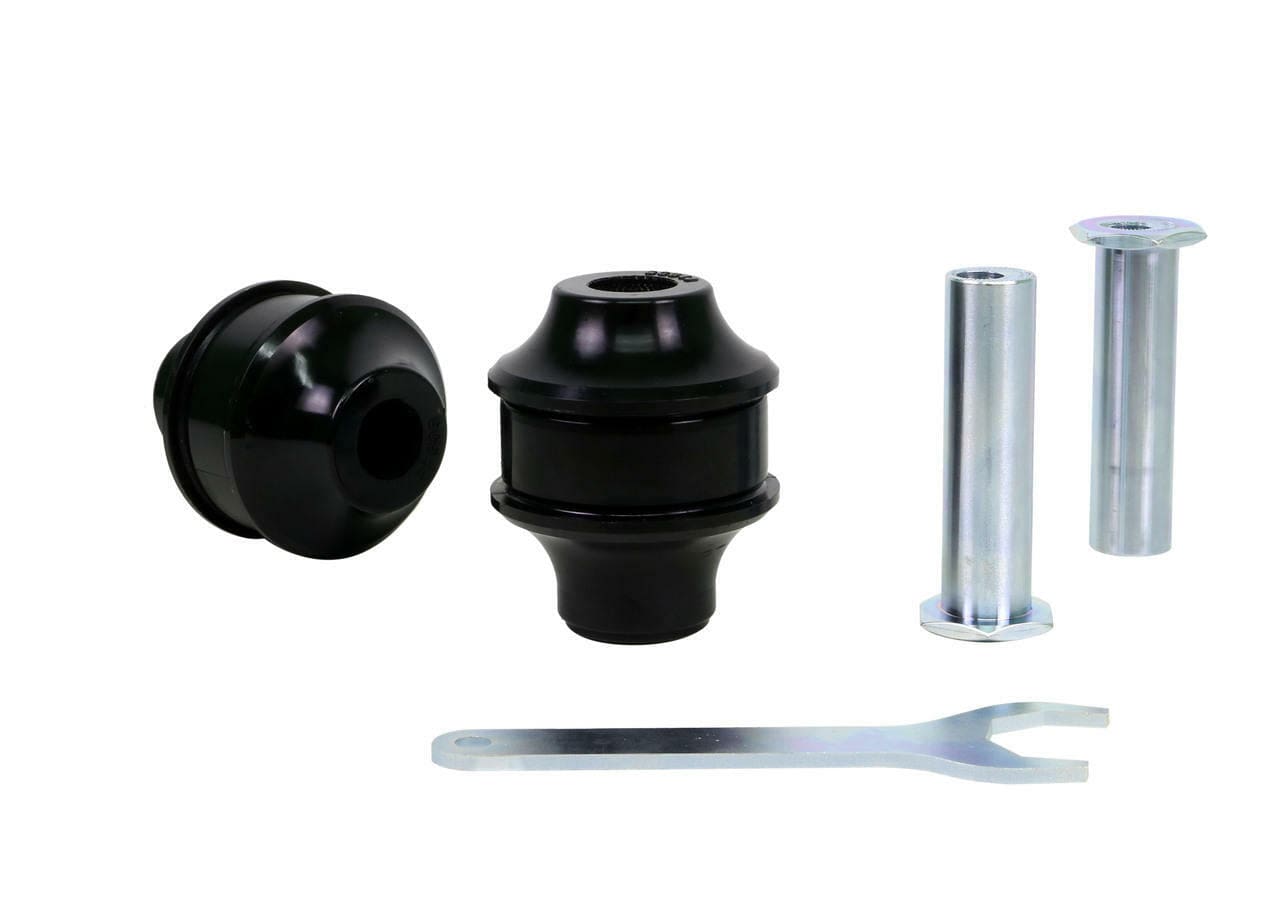

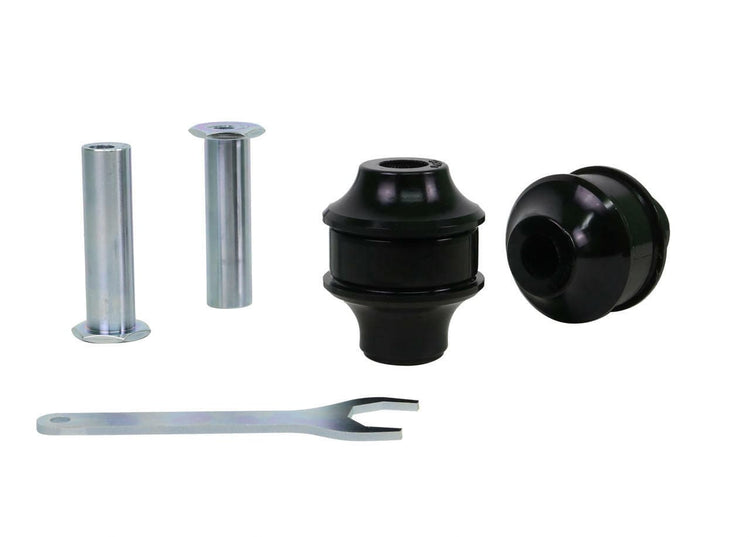

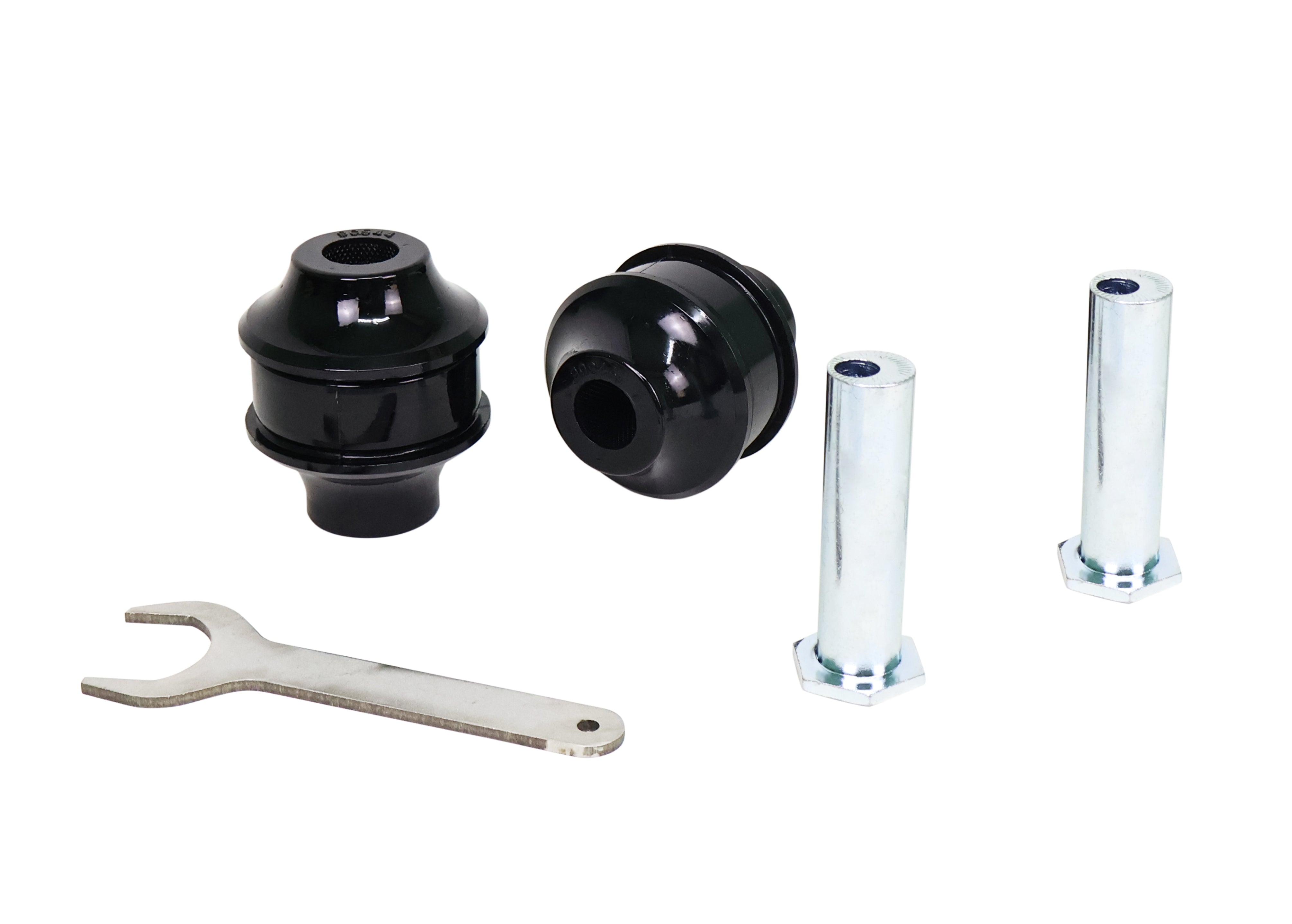

Fitted to the 2012-2013 BMW 128i 1 Series: the Whiteline Front Lower Radius Arm Bushing. Part number KCA473. Chassis code: E82/E88. In the box: 2 bushings, 2 tubes, adjusting tool, an install guide, and grease. Position: front. Application note: Adds +/- 0.5 degrees Caster. Does not Suit xDrive Models.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Whiteline rates the install as difficult and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the 128i 1 Series, see Adjustable Front Sway Bar Link, Heavy Duty 20mm Rear Sway Bar, and Rear Sway Bar Link.
Features
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Alignment adjustment: Adds adjustment so the alignment can be optimized.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | KCA473 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2012-2013 BMW 128i 1 Series |
| Chassis Code | E82/E88 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 80 |
| Inside Diameter | 12.5 mm |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes, Adjusting Tool, Install Guide, Grease |
| Length | 89 mm |
| Outside Diameter | 70.7 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5 Degree Caster; Does not Suit xDrive Models |
