Product Details

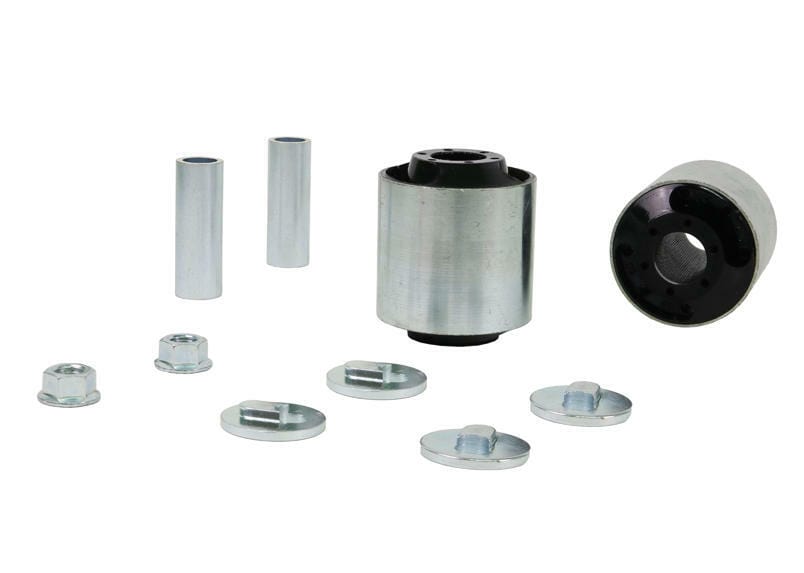

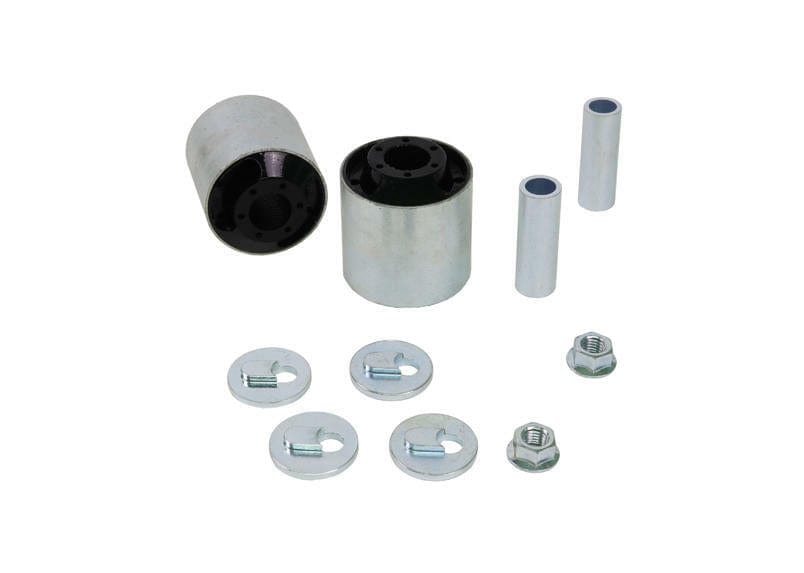

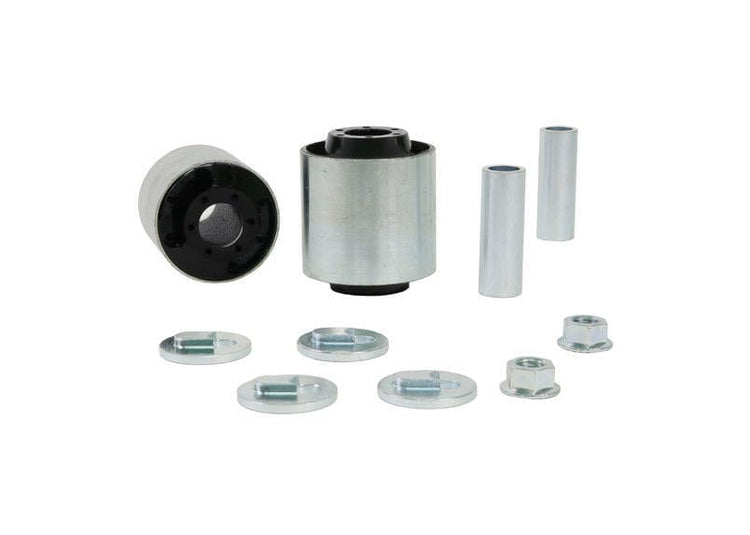

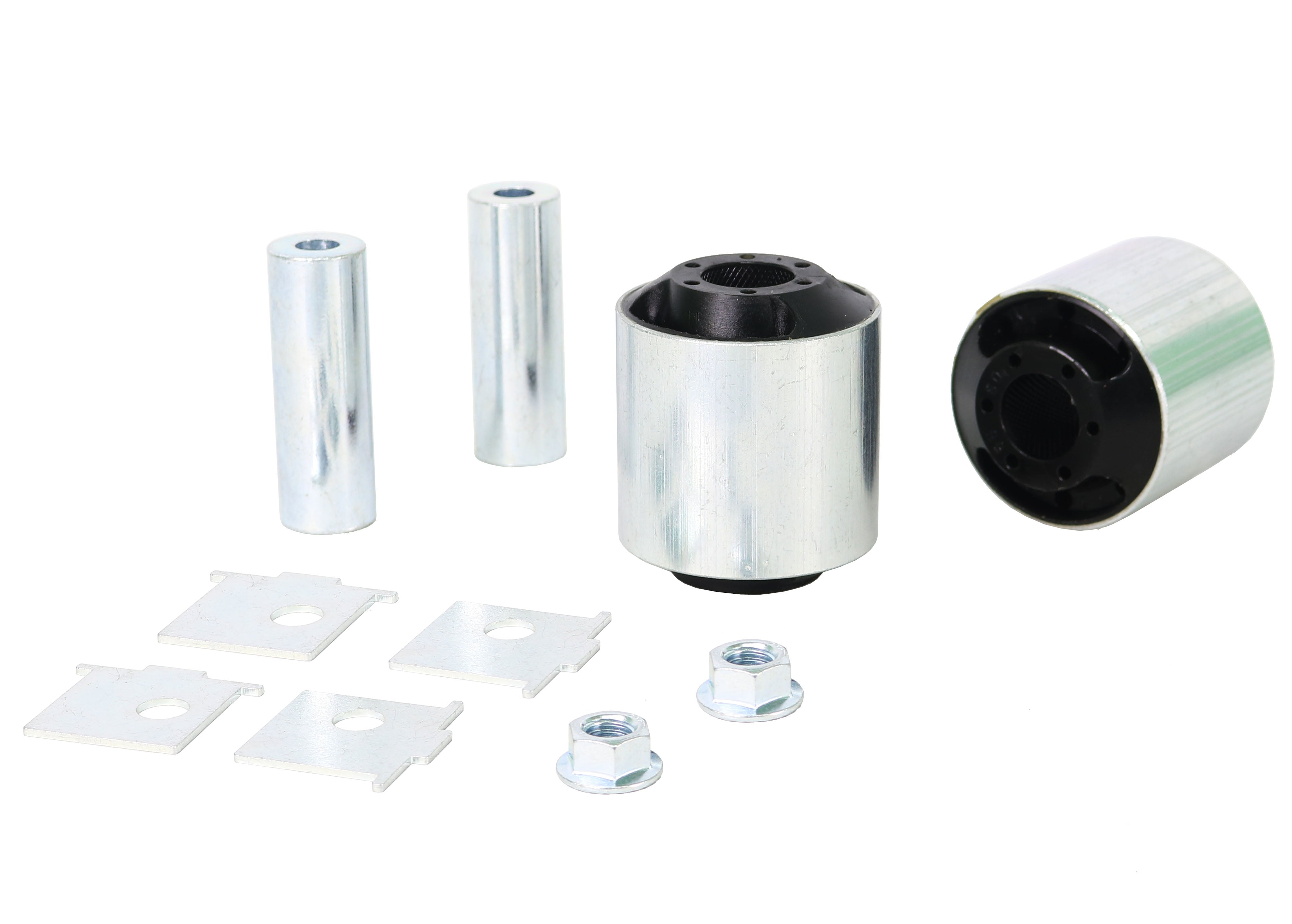

This Whiteline Front Lower Radius Arm Bushing fits the 2009 Pontiac G8 GXP (Zeta). In the box: 2 shell bushings, 2 tubes, 4 washers, 2 nuts, an install guide, and grease. Application note: Adds +0.5 degrees Caster. The part number is W83172. It goes on the front of the vehicle.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. We also list Rear Subframe Mount Bushing, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Pontiac G8.

Features

  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Caster: Caster is optimized for stable steering and good contact through roll.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Install guide: Written install instructions are included with the part.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W83172
Part Name Radius Arm Bushing
Vehicle 2009 Pontiac G8 GXP
Chassis Code Zeta
Bushing Color Black
Bushing Inside Diameter 25.3 mm
Bushing Length 81.5 mm
Bushing Material Polyurethane
Bushing Outside Diameter 69.8 mm
Bushing Quantity 2
Durometer 72
Grade Type Regular
Hardware Included Yes
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes, 4 Washers, 2 Nuts, Install Guide, Grease
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009PontiacG8RWDAdds +0.5 Degree Caster
