Product Details

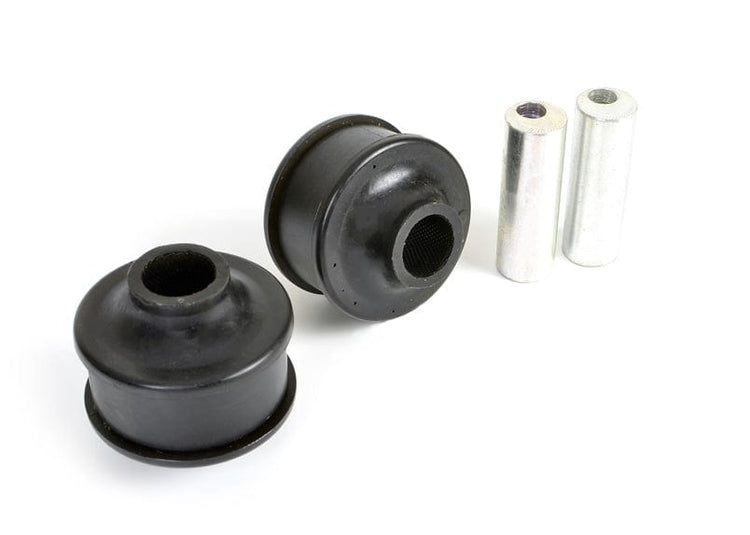

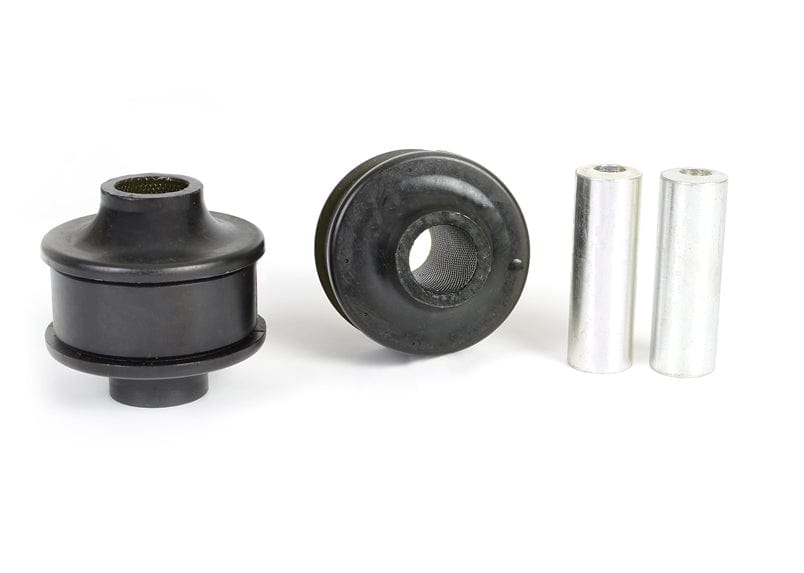

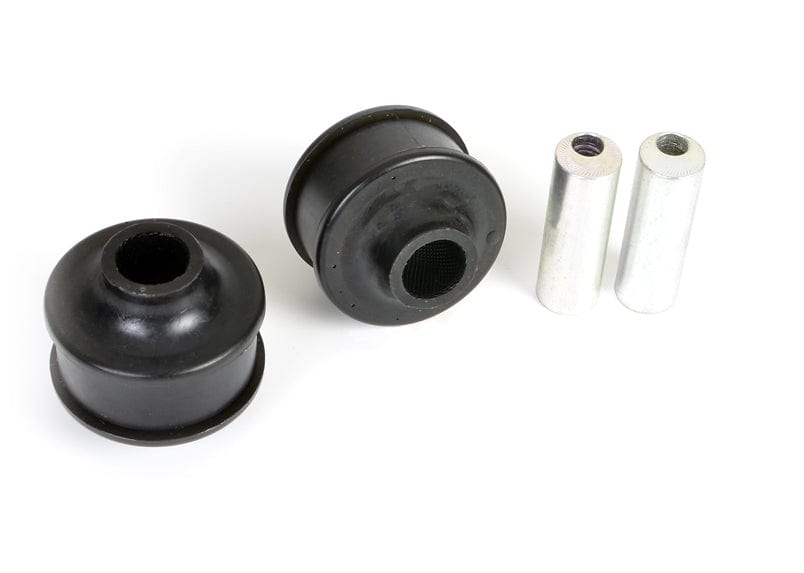

This Whiteline Front Lower Radius Arm Bushing fits the 2009-2011 BMW 335d 3 Series (E90). The part number is KCA430. In the box: 2 bushings and 2 tubes. Application note: Adds +/- 0.5 degrees Caster. Placement: front.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the 335d 3 Series: Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Heavy Duty 20mm Rear Sway Bar.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Install guide: Step-by-step installation instructions come with it.
  • Material: Made from polyurethane.
  • Finish: The metal parts are powder coated for durability.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number KCA430
Part Name Radius Arm Bushing
Vehicle 2009-2011 BMW 335d 3 Series
Chassis Code E90
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 70.7 mm
Bushing Quantity 2 Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 70.7 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.5 Deg Caster

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009BMW335dRWDAdds +/- 0.5 Deg Caster
2010BMW335dRWDAdds +/- 0.5 Deg Caster
2011BMW335dRWDAdds +/- 0.5 Deg Caster
